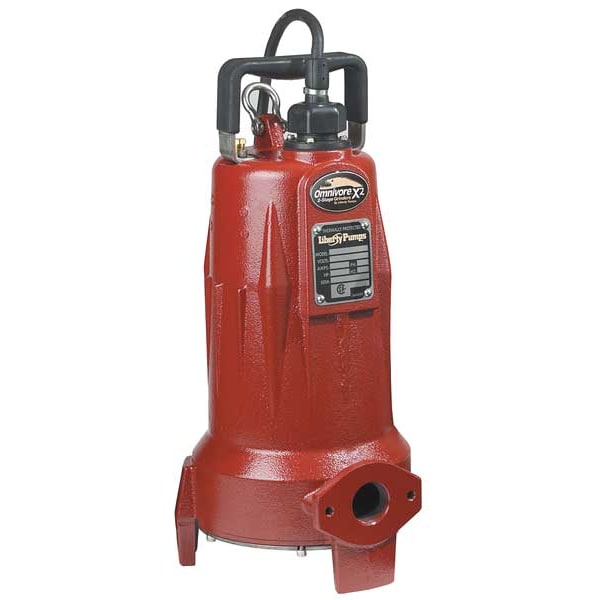

Liberty Pumps Grinder Pump, 208-230V, 15 Amps, Ph 1 LSGX202M - main

Grinder Pump, 208-230V, 15 Amps, Ph 1

  • Mfr # LSGX202M

  • Zoro # G2383631

product price: $2,694.75
/ea
Free Shipping & Returns

Key Features

HP
2 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LSGX202M
Zoro #
G2383631
UPC #
671812114911
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
24 in
Manufacturers Warranty Length
3 yr
Diameter
9-1/2"
Cord Length - Pumps
25 ft.
Cord Length
25 ft
Height
19-1/2"
Length
12-1/2" FNPT
Max. Diameter Solids
2 in
Discharge Dia.
1 1/4 in
Overall Length
12 1/2 in
Overall Height
19 1/2 in
Body Dia.
9 1/2 in
Body Diameter
9 1/2 in
Sump Pit Diameter - Minimum
24 in
Solids Diameter - Maximum
2 in
Discharge Diameter
1 1/4 in

Details

HP
2 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
39 gpm
Max. Head
185 ft
Impeller Material
Stainless Steel
Pump RPM
3450
GPM of Water @ 55 Ft. of Head
38
GPM of Water @ 120 Ft. of Head
20
GPM of Water @ 180 Ft. of Head
2
On Point
15
Input Phase AC
1
GPM of Water @ 60 Ft. of Head
39
GPM of Water @ 70 Ft. of Head
36
GPM of Water @ 30 Ft. of Head
39
Motor RPM
3450
Thermal Protection
Yes
Switch Type
No Switch Included
Max. Head - Pumps
185 ft.
Item
Grinder Pump
GPM of Water @ 50 Ft. of Head
39
Agency Compliance
C-US, CSA
GPM of Water @ 100 Ft. of Head
26
GPM of Water @ 20 Ft. of Head
39
Voltage - Pumps
208 to 240VAC
GPM of Water @ 35 Ft. of Head
39
Handle
Yes
GPM of Water @ 15 Ft. of Head
39
Motor Type
CSCR
Discharge NPT
1-1/4" F
GPM of Water @ 130 Ft. of Head
16
GPM of Water @ 45 Ft. of Head
39
GPM of Water @ 140 Ft. of Head
14
Amps
15 A
Bearing Type
Upper and Lower Ball
Voltage
208/230
Switch Type - Pumps
No Switch Included
GPM of Water @ 110 Ft. of Head
23
GPM of Water @ 90 Ft. of Head
29
GPM of Water @ 10 Ft. of Head
39
Duty
Intermittent
Hz
60
GPM of Water @ 160 Ft. of Head
7
GPM of Water @ 150 Ft. of Head
11
Impeller Material - Pumps
Stainless Steel
Pump Body Material
Cast Iron
GPM of Water @ 80 Ft. of Head
33
GPM of Water @ 5 Ft. of Head
39
GPM of Water @ 40 Ft. of Head
39
Shaft Seal
SiC/DVL
Housing Material
Cast iron
GPM of Water @ 170 Ft. of Head
4
Max. Liquid Temp.
140 Degrees F
GPM of Water @ 25 Ft. of Head
39
Off Point
8
Item - Grinder Pumps
Grinder Pump
Phase
Single
Shaft Seal Material - Pumps
Silicon Carbide, Viton
Flow Rate @ 20 Ft. of Head
39 gpm
Discharge Gender
Female
Rated Voltage
208/230V AC
Duty Cycle
Intermittent
Discharge Standard
NPT
Flow Rate @ 60 Ft. of Head
39 gpm
Switch Electrical Connection
No Switch Included
RPM
3,450 RPM
Discharge
1 1/4 in FNPT
Flow Rate @ 40 Ft. of Head
39 gpm
Flow Rate @ 15 Ft. of Head
39 gpm
Standards
CSA, CUS
Requires Control Panel
Control Panel Required
Power Source
Corded Electric
Current
15 A
Volute Material
Cast Iron
Hazardous Location Class
Not Rated
Shaft Seal Material
Silicon Carbide/Viton
Series
LSGX
Feet of Head - Maximum
185 ft
Discharge Orientation
Horizontal
Liquid Temperature - Maximum
140 Degrees F
Shaft Seal Type
Single Mechanical
Rotation Speed - Maximum
3,450 RPM
Motor Housing Material
Cast Iron
Frequency
60 Hz
Cord Termination
Plug
For Media Type
Sewage Water
Flow Rate @ 10 ft of Head
39 gpm
Horsepower
2 hp

Description

Grinder Pump, HP 2 hp, Rated Voltage 208/230V AC, Hz 60, Phase - Pumps 1, Amps 15 A, Motor Type CSCR, Body Material Cast Iron, Impeller Material Stainless Steel, Shaft Seal Material - Pumps Silicon Carbide, Viton, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 39 gpm, Flow Rate @ 15 Ft. of Head 39 gpm, Flow Rate @ 20 Ft. of Head 39 gpm, Flow Rate @ 40 Ft. of Head 39 gpm, Flow Rate @ 60 Ft. of Head 39 gpm, Max. Head 185 ft
