Shop DAYTON

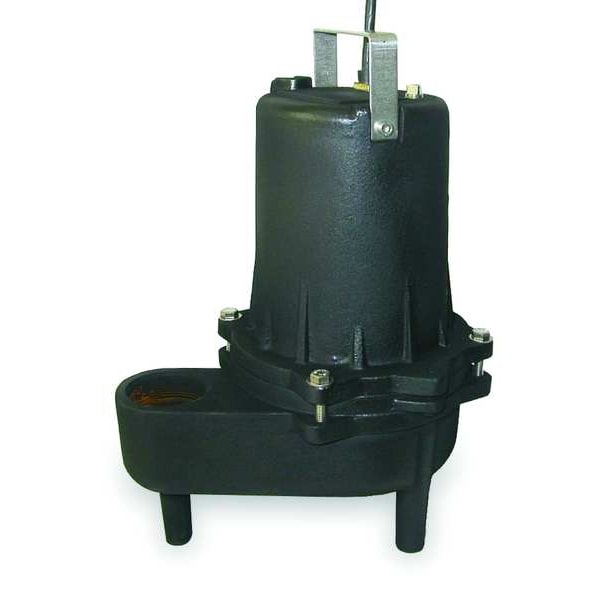

1/2 HP 2" Manual Submersible Sewage Pump 115V

  • Mfr # 4CRE5

  • Zoro # G1581447

product price:
$
783.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4CRE5
Zoro #
G1581447
UPC #
190735322635
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Max. Dia. Solids
2"
Diameter
10-27/32"
Cord Length - Pumps
15 ft.
Height
15-1/2"
Cord Length
15 ft
Min. Sump Pit Dia.
18 in
Manufacturers Warranty Length
1 yr
Overall Height
15 1/2 in
Discharge Dia.
2 in
Body Dia.
10 27/32 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
2 in
Body Diameter
10 7/8 in
Width at Widest Point
8 1/2 in

Details

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
100 gpm
Max. Head
24 ft
Impeller Material
Cast Iron
Shaft Seal Material - Pumps
Silicon Carbide, Viton
Thermal Protection
Yes
Housing Material
Cast iron
Switch Type
None
Shaft Seal
Silicon Carbide/Viton
Max. Head - Pumps
24 ft.
Bearing Type
Ball
Pump Type
Manual
Switch Type - Pumps
No Switch Included
Input Phase AC
1
Phase
Single
GPM of Water @ 10 Ft. of Head
100
Item
Sewage Ejector Pump
Motor RPM
1750
GPM of Water @ 5 Ft. of Head
110
Motor Type
Hermetically-Sealed, PSC, Oil-Filled
Pump HP
1/2
Voltage - Pumps
120VAC
Voltage
115
GPM of Water @ 20 Ft. of Head
35
GPM of Water @ 15 Ft. of Head
80
Item - Sewage Pumps
Submersible Sewage Pump
Impeller Material - Pumps
Cast Iron
Max. Liquid Temp.
200 Degrees F
Amps
10.5 A
Amps - Pumps
10.50
Pump Body Material
Cast Iron
Discharge NPT
2"
Includes
15 ft. of Nylon Rope
Rated Voltage
120V AC
Flow Rate @ 20 Ft. of Head
35 gpm
Discharge
2 in FNPT
Duty Cycle
Continuous
Switch Electrical Connection
No Switch Included
Discharge Gender
Female
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
80 gpm
RPM
1,750 RPM
Standards
cCSAus Certified
Type
Manual
Feet of Head - Maximum
24 ft
Horsepower
1/2 hp
Shaft Seal Material
Silicon Carbide/Viton
Current
10.5 A
Frequency
60 Hz
Liquid Temperature - Maximum
200 Degrees F
Flow Rate @ 10 ft of Head
75 gpm
Rotation Speed - Maximum
1,750 RPM

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 120V AC, Phase - Pumps 1, Amps 10.5 A, Motor Type Hermetically-Sealed, PSC, Oil-Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Silicon Carbide, Viton, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 100 gpm, Flow Rate @ 15 Ft. of Head 80 gpm, Flow Rate @ 20 Ft. of Head 35 gpm
