  9. Grinder Pump, Duplex, 2 HP, Height 72 In

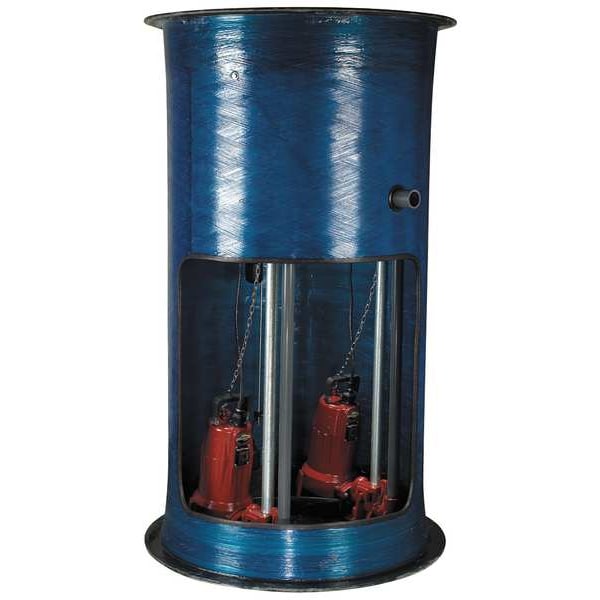

Liberty Pumps Grinder Pump, Duplex, 2 HP, Height 72 In D3672LSG202-48 - main

Grinder Pump, Duplex, 2 HP, Height 72 In

  • Mfr # D3672LSG202-48

  • Zoro # G9833092

product price: $11,961.99
/ea
Additional $410.00 delivery surcharge applies per item.
See details

Key Features

HP
2 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
50 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
D3672LSG202-48
Zoro #
G9833092
UPC #
671812119169
Country of Origin
United States

Dimensions

Diameter
42"
Cord Length
25 ft
Cord Length - Pumps
25 ft.
Height
72"
Manufacturers Warranty Length
3 yr
Max. Diameter Solids
2 in
Vent Size
2 in /3 in
Inlet Dia.
4 in
Discharge Diameter
2 in
Inlet Diameter
4 in
Solids Diameter - Maximum
2 in

Details

HP
2 hp
Phase - Pumps
1
Switch Actuation
Tether Float
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
50 gpm
Max. Head
108 ft
Impeller Material
Stainless Steel
Off Point
13 in
Max. Liquid Temp.
140 Degrees F
Pump RPM
3450
Input Phase AC
1
GPM of Water @ 15 Ft. of Head
50
Voltage
208/230
Item
Grinder Pump System
GPM of Water @ 5 Ft. of Head
50
GPM of Water @ 35 Ft. of Head
50
Amps - Pumps
15.00
GPM of Water @ 20 Ft. of Head
50
Thermal Protection
Yes
Voltage - Pumps
208 to 230VAC
GPM of Water @ 45 Ft. of Head
48
Phase
Single
Amps
15 A
GPM of Water @ 50 Ft. of Head
47
On Point
31 in
Item - Sump/Sewage Pump Systems
Grinder Pump System
Bearing Type
Ball
Duty
Intermittent
Shaft Seal
SIC
Housing Material
Cast iron
Pump HP
2
Pump Body Material
Cast Iron
GPM of Water @ 30 Ft. of Head
50
Max. Head - Pumps
108 ft.
Impeller Material - Pumps
Stainless Steel
Discharge NPT
2" F
GPM of Water @ 55 Ft. of Head
45
GPM of Water @ 25 Ft. of Head
50
GPM of Water @ 10 Ft. of Head
50
GPM of Water @ 40 Ft. of Head
48
Switch Type - Pumps
Tether
Hz
60
Max Head - Pumps
108 ft.
Switch Type
Tether
Motor Type
CSCR
Includes
Alternating Control Panel
Motor RPM
3450
Handle
yes
RPM
3,450 RPM
Inlet Standard
NPT
Rated Voltage
208/230V AC
Flow Rate @ 5 Ft. of Head
50 gpm
Number of Pumps
2
Flow Rate @ 20 Ft. of Head
50 gpm
Inlet Gender
Female
Duty Cycle
Intermittent
Inlet
4 in FNPT
Flow Rate @ 30 Ft. of Head
50 gpm
Switch Electrical Connection
Integral
Flow Rate @ 15 Ft. of Head
50 gpm
Basin Material
Fiberglass
Liquid Temperature - Maximum
140 Degrees F
Horsepower
2 hp
Feet of Head - Maximum
108 ft
Frequency
60 Hz
Current
15 A
Flow Rate @ 10 ft of Head
50 gpm
Rotation Speed - Maximum
3,450 RPM

Description

Grinder Pump System, Duplex, 2 HP, Switch Type Tether, Voltage 208/230, Amps 15, Height (In.) 72 In., Dia. (In.) 40, Cord Length (Ft.) 25, Discharge NPT (In.) 2, Off Point (In.) 13, On Point (In.) 31, GPM of Water @ 5 Ft. of Head 50, GPM of Water @ 80 Ft. of Head 27, Max. Head (Ft.) 108, Max. Temp. (F) 140, Phase 1, 3450 RPM, Impeller Material Stainless Steel, Base Material Cast Iron, Housing Material Cast Iron
