Shop LITTLE GIANT PUMP

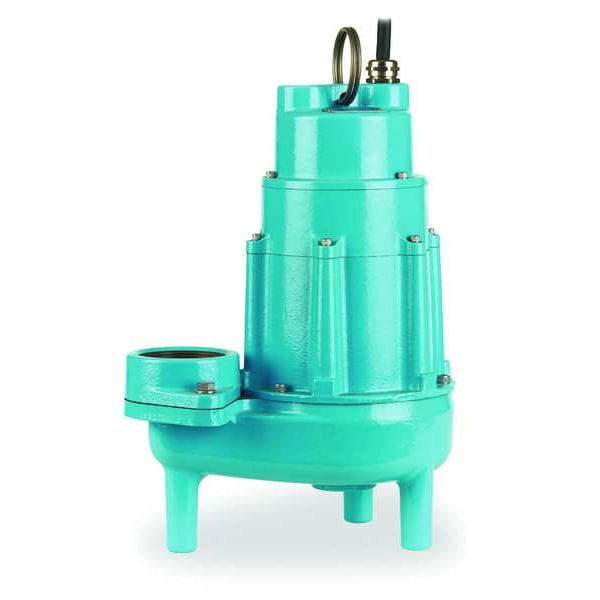

2 HP 3" Manual Submersible Sewage Pump 230V

  • Mfr # 520100
  • Zoro # G0267032
product price:
$
1,409.99
/ea
Free Shipping & Returns

Key Features

HP
2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
520100
Zoro #
G0267032
UPC #
010121120860
Country of Origin
Mexico

Dimensions

Max. Diameter Solids
2 in
Max. Dia. Solids
2"
Manufacturers Warranty Length
3 yr
Cord Length
20 ft
Diameter
12-15/16"
Cord Length - Pumps
20 ft.
Height
19-3/43"
Discharge Dia.
3 in
Body Dia.
12 15/16 in
Overall Height
18 3/8 in
Width at Widest Point
13 in
Solids Diameter - Maximum
2 in
Discharge Diameter
3 in
Sump Pit Diameter - Minimum
24 in
Body Diameter
8 1/2 in

Details

HP
2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
205 gpm
Max. Head
77 ft
Impeller Material
Brass
GPM of Water @ 15 Ft. of Head
195
GPM of Water @ 40 Ft. of Head
120
GPM of Water @ 20 Ft. of Head
168
Pump Body Material
Cast Iron
Impeller Material - Pumps
Brass
Input Phase AC
1
GPM of Water @ 50 Ft. of Head
87
Agency Compliance
CSA Certified, UL Listed
Pump Type
Manual
Max. Head - Pumps
77 ft.
Item
Sewage Ejector Pump
Discharge NPT
3"
Switch Type
None
GPM of Water @ 30 Ft. of Head
140
Amps - Pumps
18.00
Housing Material
Cast iron
Item - Sewage Pumps
Submersible Sewage Pump
Voltage - Pumps
208V AC to 240V AC
GPM of Water @ 60 Ft. of Head
58
GPM of Water @ 10 Ft. of Head
205
Shaft Seal Material - Pumps
Carbon, Ceramic
Motor Type
Permanent Split Capacitor
Amps
18.00 A
Voltage
208V to 230V
Motor RPM
2900
Thermal Protection
Auto
Max. Liquid Temp.
140 Degrees F
Shaft Seal
Carbon/Ceramic
Bearing Type
Ball
Switch Type - Pumps
No Switch Included
GPM of Water @ 25 Ft. of Head
160
Phase
Single
Flow Rate @ 20 Ft. of Head
168 gpm
Flow Rate @ 60 Ft. of Head
58 gpm
Rated Voltage
208 to 230V AC
Duty Cycle
Continuous
RPM
2,900 RPM
Discharge Standard
NPT
Discharge Gender
Female
Switch Electrical Connection
No Switch Included
Flow Rate @ 40 Ft. of Head
120 gpm
Flow Rate @ 15 Ft. of Head
195 gpm
Discharge
3 in FNPT
Standards
CSA Certified, UL Listed
Type
Manual
Flow Rate @ 10 ft of Head
205 gpm
Volute Material
Cast Iron
Feet of Head - Maximum
77 ft
Shaft Seal Material
Carbon/Ceramic
Frequency
60 Hz
Horsepower
2 hp
Requires Control Panel
No Control Panel Required
Discharge Orientation
Vertical
Current
18.00 A
For Media Type
Sewage Water
Liquid Temperature - Maximum
140 Degrees F
Series
20S-CIM
Motor Housing Material
Cast Iron
Power Source
Corded Electric
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Type
Single Mechanical
Motor Design
Permanent Split Capacitor
Impeller Design
Non-Clog
Application
Dewatering, Transfer, Waste Removal
Installation
Submersible
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 2, Rated Voltage 208 to 230V AC, Phase - Pumps 1, Amps 18.00 A, Motor Type Permanent Split Capacitor, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 205 gpm, Flow Rate @ 15 Ft. of Head 195 gpm, Flow Rate @ 20 Ft. of Head 168 gpm
