This item is Discontinued.

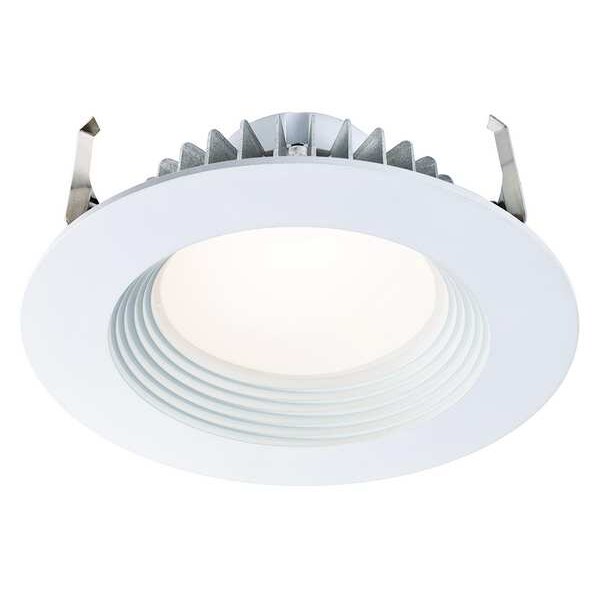

Lightolier LED Downlight Retrofit Kit, 1200 Lumens CP6RB10830W

LED Downlight Retrofit Kit, 1200 Lumens (Discontinued)

  • Mfr # CP6RB10830W
  • Zoro # G3106811
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CP6RB10830W
Zoro #
G3106811
UPC #
662057939070
Country of Origin
China

Dimensions

Height
3 5/8 in
Nominal Size
6 in
Length
8 in
Width
8 in
Overall Height
3 5/8 in
Outside Diameter
8 in
Manufacturer Warranty Length
5 yr

Details

Lumens
1200
Color Temp.
3000K
Reflector or Baffle Color
White Baffle
Warranty
5 yr
Dimmable / Non-Dimmable
Dimmable
Temp. Range
-4 Degrees to 113 Degrees F
Rated Life
50,000 hr
CRI
80
Color Temperature
3000K
Socket Type
E26
LED Replacement For
90W INC/22W CFL
Item
LED Downlight Retrofit Kit
Watts
14 W
Lumens Per Watt
75.0
Kit Contents
Whip Connector Trim
Standards
cULus Listed
Voltage
120V AC
Trim Color
White
Lumens per Watt
75.0 lm/W
Fixture Type
New Construction, Remodel, Retrofit
Includes Baffle
Yes
Maximum Operating Temperature
113 Degrees F
Compatible Series
CP6
Includes Driver
Yes
Compliance Type
CA Title 24
Maximum Wattage
14 W
Dimming Method
TRIAC
Light Output
1,200 lm
Dimmable
Yes
Color Rendering Index
80
Trim Material
Cast Aluminum
Series
CP6
Lighting Certification
ENERGY STAR
Dimming Range
100% to 10%
Includes Trim
Yes
Environmental Rating
Wet Location Rated
Minimum Operating Temperature
-4 Degrees F

Description

LED Downlight Retrofit Kit, Nominal Size 6 in, Color Temperature 3000K, Light Output 1,200 lm, Color Rendering Index 80, Trim Color White, LED Replacement For 90W INC/22W CFL, Dimmable Yes, Outside Diameter 8 in, Overall Height 3 5/8 in, Trim Material Cast Aluminum, Compliance Type CA Title 24, Voltage 120V AC, Dimming Method TRIAC, Dimming Range 100 Percent to 10 Percent, Environmental Rating Wet Location Rated, Fixture Type New Construction, Remodel, Retrofit, Includes Baffle Yes
