  5. Engine Driven Welder, Eagle 10,000 Plus Series, Electric Start, 23 hp, Gas, 10,500 W Peak

This item is Discontinued.

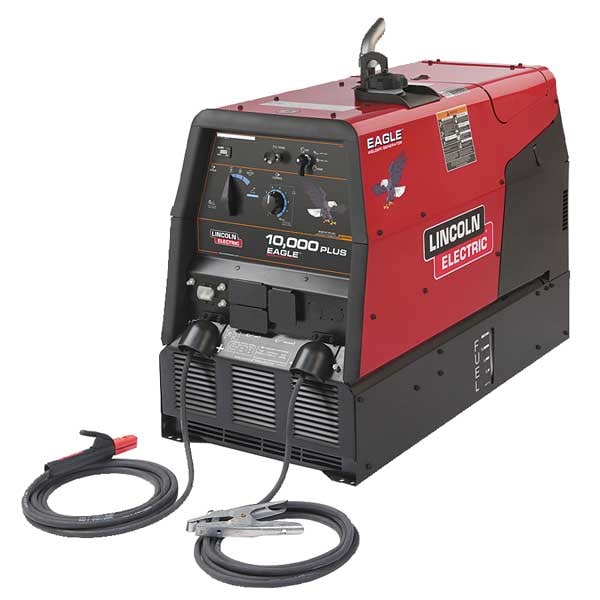

Lincoln Electric Engine Driven Welder, Eagle 10,000 Plus Series, Electric Start, 23 hp, Gas, 10,500 W Peak K2343-3

Engine Driven Welder, Eagle 10,000 Plus Series, Electric Start, 23 hp, Gas, 10,500 W Peak (Discontinued)

  • Mfr # K2343-3
  • Zoro # G3051422
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2343-3
Zoro #
G3051422
UPC #
015082893402
Country of Origin
United States

Dimensions

Height
29 29/32 in
Width
21 1/2 in
Depth
42 19/64 in
Overall Height
29.91 in
Overall Depth
43.3 in
Overall Width
21.5 in

Details

Item
Engine-Driven Welder
Series
Eagle 10,000 Plus
Start Type
Electric
Rated Output CC/DC
225A @ 25V, 40%/ 210A @ 25V, 100%
Amperage Range
50 to 225
Continuous Auxiliary Power
9,000 W
Peak Auxiliary Power
10,500 W
Engine Brand
Kohler
HP
23 hp
Fuel Type
Gas
Phase
Single-Phase
Includes
15 ft. (4.5m) of #2 Work Cable, 20 ft. (6.0 m) of #2 Electrode Cable, Electrode Holder, Work Clamp
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
CSA Certified, ISO 9001
MIG Welding Minimum Output Current
50 A
Engine Model
Kohler CH730
Max. Amperage Range (Stick)
150 A - 300 A
Oil Capacity
2 qt
Horsepower Range
15 hp - 30 hp
Open Circuit Voltage
80 V
TIG Welding Output @ Duty Cycle
210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Engine Displacement
44 cu in
Weight
514 lb
Color
Red
Generator Outlets
20 A 120V 5-20R (4), 50 A 120/240V 14-50R
Welder Type
Base Model
Polarity
DC
Welding Mode
CC
Horsepower
23 hp
MIG Welding Maximum Output Current
225 A
Stick Welding Output @ Duty Cycle
210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Stick Welding Maximum Output Current
225 A
MIG Welding Output @ Duty Cycle
210 A @ 25 V, 100%, 225 A @ 25 V, 40%
Sound Level
76.4 dBA @ 23 ft
Stick Welding Minimum Output Current
50 A
Fuel Tank Capacity Range
10 gal - 20 gal
Fuel Tank Capacity
12 gal
Circuit Breaker
Yes
TIG Welding Maximum Output Current
225 A
TIG Welding Minimum Output Current
50 A
Rated Output at Duty Cycle (Stick)
210 A @ 100%, 225 A @ 40%
Generator Outlet Type
14-50R, 5-20R
Generator Fuel Type
Gasoline
Model
K2343-3
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welder Model Type
Base Model
brand-mfr model
LINCOLN ELECTRIC - K2343-3

Description

Engine-Driven Welder, Color Red, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 225 A, MIG Welding Minimum Output Current 50 A, MIG Welding Output @ Duty Cycle 210 A @ 25 V, 100 Percent, 225 A @ 25 V, 40 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 225 A, Stick Welding Minimum Output Current 50 A, Stick Welding Output @ Duty Cycle 210 A @ 25 V, 100 Percent, 225 A @ 25 V, 40 Percent, TIG Welding Maximum Output Current 225 A
