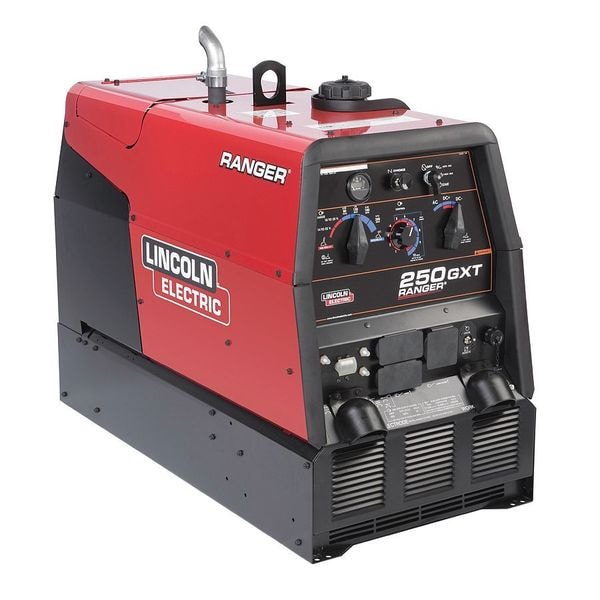

Engine-Driven Welder, Ranger 250 GXT Series, Electric Start, 23 hp, Gas, 11,000 W Peak

  • Mfr # K2382-4

  • Zoro # G9964342


product price:  $10,440.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Series
Ranger 250 GXT
Start Type
Electric
Rated Output CC/AC
250A AC/DC CC/ 25V/ 100%
Rated Output CC/DC
250A AC/DC CC/ 25V/ 100%
Amperage Range
50 to 250
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
K2382-4
Zoro #
G9964342
UPC #
015082678542
Country of Origin
United States

Dimensions

Height
29 29/32 in
Depth
42 19/64 in
Width
21 1/2 in
Overall Depth
42.3 in
Overall Width
21.5 in
Overall Height
29.91 in

Details

Item
Engine-Driven Welder
Series
Ranger 250 GXT
Start Type
Electric
Rated Output CC/AC
250A AC/DC CC/ 25V/ 100%
Rated Output CC/DC
250A AC/DC CC/ 25V/ 100%
Amperage Range
50 to 250
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
11,000 W
Engine Brand
Kohler
HP
23 hp
Fuel Type
Gas
Phase
Single-Phase
Includes
Ranger 250 GXT Welder/ Generator
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Application
Used In Construction, Maintenance And Repair, Ranch/Farm Applications
Standards
CSA Certified, ISO 9001
Oil Capacity
2 qt
Engine Model
Kohler CH730
Stick Welding Maximum Output Current
250 A
Engine Displacement
44 cu in
Generator Fuel Type
Gasoline
Fuel Tank Capacity
12 gal
Circuit Breaker
Yes
Welding Mode
CC/CV
Open Circuit Voltage
80 V
Sound Level
76.4 dBA @ 23 ft
MIG Welding Minimum Output Current
50 A
Horsepower
23 hp
Remote Connection Type
6-Pin (Lincoln)
MIG Welding Maximum Output Current
250 A
Generator Outlets
20 A 120V 5-20R (4), 50 A 120/240V 14-50R
MIG Welding Output @ Duty Cycle
250 A @ 25 V, 100%
TIG Welding Output @ Duty Cycle
250 A @ 25 V, 100%
Polarity
AC/DC
TIG Welding Minimum Output Current
50 A
Weight
602 lb
TIG Welding Maximum Output Current
250 A
Color
Red
Stick Welding Output @ Duty Cycle
250 A @ 25 V, 100%
Stick Welding Minimum Output Current
50 A
Model
K2382-4

Description

Engine-Driven Welder, Color Red, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 250 A, MIG Welding Minimum Output Current 50 A, MIG Welding Output @ Duty Cycle 250 A @ 25 V, 100 Percent, Phase Single-Phase, Polarity AC/DC, Start Type Electric, Stick Welding Maximum Output Current 250 A, Stick Welding Minimum Output Current 50 A, Stick Welding Output @ Duty Cycle 250 A @ 25 V, 100 Percent, TIG Welding Maximum Output Current 250 A, TIG Welding Minimum Output Current 50 A
