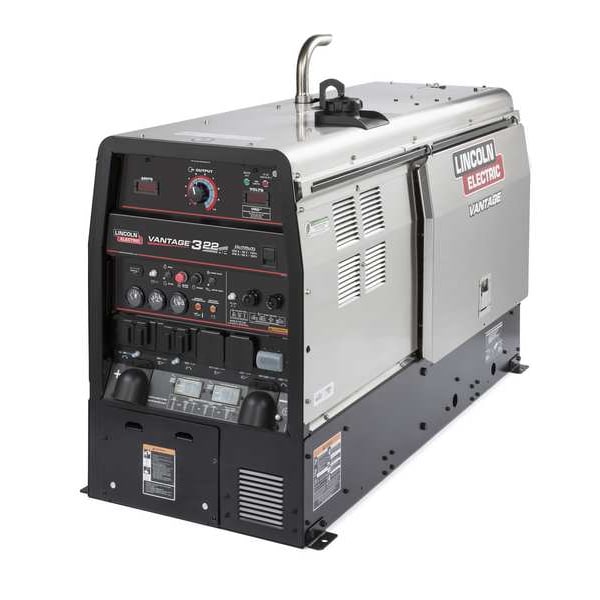

Engine-Driven Welder, Vantage 322 Series, Electric Start, 12,500 W Peak

  • Mfr # K2409-5

  • Zoro # G202319037

product price:  $30,761.99
/ea
Additional $350.00 delivery surcharge applies per item.
See details

Key Features

Series
Vantage 322
Start Type
Electric
Continuous Auxiliary Power
11,000 W
Peak Auxiliary Power
12,500 W
Engine Brand
Kubota
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K2409-5
Zoro #
G202319037
UPC #
015082852973
Country of Origin
United States

Details

Item
Engine-Driven Welder
Series
Vantage 322
Start Type
Electric
Continuous Auxiliary Power
11,000 W
Peak Auxiliary Power
12,500 W
Engine Brand
Kubota
Model
K2409-5
Horsepower
22 hp
Generator Fuel Type
Diesel
Engine Model
Kubota V1505
Oil Capacity
6 3/8 qt
Stick Welding Maximum Output Current
300 A
Stick Welding Output @ Duty Cycle
280 A @ 32 V, 100%
Stick Welding Minimum Output Current
10 A
Remote Connection Type
14-Pin (Lincoln), 6-Pin (Lincoln)
TIG Welding Output @ Duty Cycle
280 A @ 32 V, 100%
Weight
1,035 lb
Open Circuit Voltage
60 V DC
Circuit Breaker
Yes
TIG Arc Start Feature
Lift Arc Start
TIG Welding Minimum Output Current
10 A
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Generator Outlets
14-50R 120/240V Receptacle, 15-50R 240V Receptacle, 5-20R 120V GFCI Receptacle (2), 5-20R 120V Receptacle (4)
TIG Welding Maximum Output Current
300 A
Color
Stainless Steel
Polarity
DC
Phase
Single/Three
Fuel Tank Capacity
20 gal
Welding Mode
CC/CV
Rated Output @ Duty Cycle (Stick)
280 A @ 32 V, 100%
Amperage TIG - Minimum
10 A
Rated Output @ Duty Cycle (TIG)
280 A @ 32 V, 100%
Amperage TIG - Maximum
300 A
Welding Power Source Type
CC/CV
Amperage Stick - Maximum
300 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage Stick - Minimum
10 A

Description

Engine-Driven Welder, Color Stainless Steel, Generator Fuel Type Diesel, Phase Single/Three, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 300 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 280 A @ 32 V, 100 Percent, TIG Welding Maximum Output Current 300 A, TIG Welding Minimum Output Current 10 A, TIG Welding Output @ Duty Cycle 280 A @ 32 V, 100 Percent, Remote Connection Type 14-Pin (Lincoln), 6-Pin (Lincoln), Welding Mode CC/CV

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
