  5. Engine Driven Welder, Ranger Series, Electric Start, 19 hp, Diesel, 10,500 W Peak

This item is Discontinued.

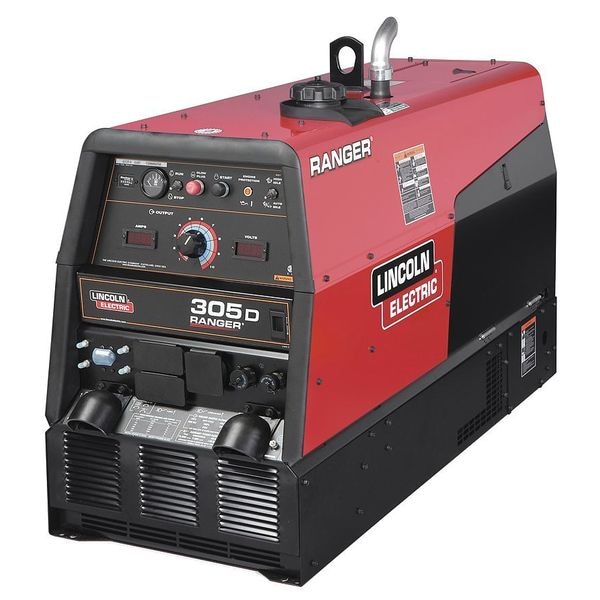

Lincoln Electric Engine Driven Welder, Ranger Series, Electric Start, 19 hp, Diesel, 10,500 W Peak K1727-4

Engine Driven Welder, Ranger Series, Electric Start, 19 hp, Diesel, 10,500 W Peak (Discontinued)

  • Mfr # K1727-4
  • Zoro # G9964385
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K1727-4
Zoro #
G9964385
UPC #
015082558240
Country of Origin
United States

Dimensions

Height
29 29/32 in
Width
21 1/2 in
Depth
52 19/64 in
Overall Height
29.91 in
Overall Depth
52.3 in
Overall Width
21.5 in

Details

Item
Engine-Driven Welder
Series
Ranger 305 D
Start Type
Electric
Rated Output CC/DC
305A / 29V / 100%
Amperage Range
20 to 305
Continuous Auxiliary Power
9,500 W
Peak Auxiliary Power
10,500 W
Engine Brand
Kubota
HP
19 hp
Fuel Type
Diesel
Includes
Ranger 305 D Welder/ Generator
Phase
Single-Phase
Application
Used In Construction, Maintenance And Repair, Pipe, Ranch/ Farm Applications. Used For General Purpose Stick Welding, Downhill Pipe (Stick), Tig, Cored-wire, Mig (Co2 And Mixed Gas) And Arc Gouging
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
CSA Certified, ISO 14001, ISO 9001
Fuel Tank Capacity
12 gal
Horsepower
19 hp
Max. Amperage Range (Stick)
Greater than 300 A
Engine Displacement
43.9 cu in
TIG Welding Minimum Output Current
20 A
Stick Welding Output @ Duty Cycle
300 A @ 29 V, 100%, 305 A @ 29 V, 100%
Stick Welding Maximum Output Current
305 A
Weight
698 lb
Engine Model
Kubota D722
Circuit Breaker
Yes
Fuel Tank Capacity Range
10 gal - 20 gal
Welding Mode
CC/CV
Sound Level
80.6 dBA @ 23 ft
Coolant Tank Capacity
3.9 qt
Generator Fuel Type
Diesel
Open Circuit Voltage
60 V DC
Horsepower Range
15 hp - 30 hp
MIG Welding Output @ Duty Cycle
300 A @ 29 V, 100%, 305 A @ 29 V, 100%
Remote Connection Type
14-Pin (Lincoln), 6-Pin (Lincoln)
Generator Outlet Type
14-50R, 5-20R
TIG Welding Output @ Duty Cycle
300 A @ 29 V, 100% (CV), 305 A @ 29 V, 100% (CC)
Stick Welding Minimum Output Current
20 A
Generator Outlets
20 A 120V 5-20R (4), 50 A 120/240V 14-50R
Color
Red
Oil Capacity
3 3/8 qt
Rated Output at Duty Cycle (Stick)
300 A @ 100%, 305 A @ 100%
TIG Welding Maximum Output Current
250 A
Welder Type
with GFCI Receptacles
Polarity
DC
Model
K1727-4
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
LINCOLN ELECTRIC - K1727-4
Welder Model Type
with GFCI Receptacles

Description

Engine-Driven Welder, Color Red, Generator Fuel Type Diesel, MIG Welding Output @ Duty Cycle 300 A @ 29 V, 100 Percent, 305 A @ 29 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 305 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 300 A @ 29 V, 100 Percent, 305 A @ 29 V, 100 Percent, TIG Welding Maximum Output Current 250 A, TIG Welding Minimum Output Current 20 A
