  9. Engine-Driven Welder, Vantage 441X Series, Electric Start, 17,000 W Peak

This item is Discontinued.

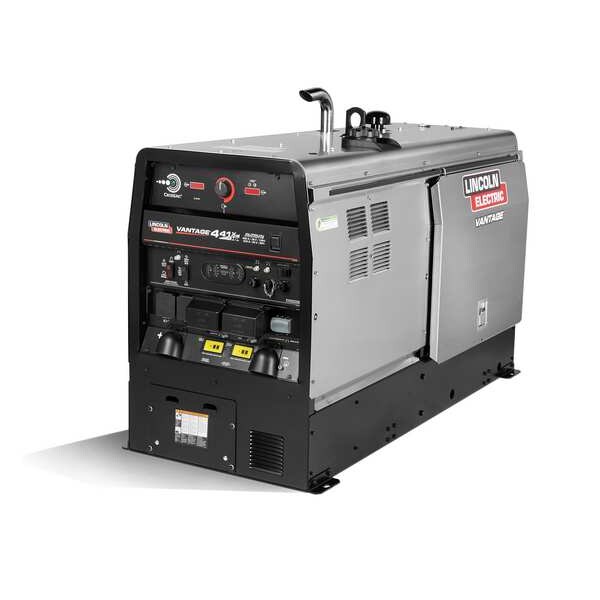

Lincoln Electric Engine-Driven Welder, Vantage 441X Series, Electric Start, 17,000 W Peak K4535-1

Engine-Driven Welder, Vantage 441X Series, Electric Start, 17,000 W Peak (Discontinued)

  • Mfr # K4535-1
  • Zoro # G602319620
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4535-1
Zoro #
G602319620
UPC #
015082866345
Country of Origin
United States

Details

Item
Engine-Driven Welder
Series
Vantage 441X
Start Type
Electric
Continuous Auxiliary Power
11,000 W
Peak Auxiliary Power
17,000 W
Engine Brand
Perkins
Phase
Single-/Three-Phase
Stick Welding Maximum Output Current
325 A
Remote Connection Type
12-Pin (Lincoln), 14-Pin (Lincoln)
Model
K4535-1
TIG Welding Output @ Duty Cycle
325 A @ 28 V, 100%
Color
Stainless Steel
Stick Welding Output @ Duty Cycle
325 A @ 28 V, 100%
TIG Welding Minimum Output Current
20 A
Welding Mode
CC/CV
Oil Capacity
2 1/2 gal
Engine Model
Perkins 404F-E22T
Polarity
DC
Circuit Breaker
No
Fuel Tank Capacity
20 gal
Coolant Tank Capacity
2.6 gal
Generator Fuel Type
Diesel
TIG Welding Maximum Output Current
325 A
Generator Outlets
14-50R 120/240V Receptacle, 15-50R 240V Receptacle, 5-20R 120V GFCI Receptacle (4)
Enhanced Process
Pulsed MIG (GMAW-P)
Stick Welding Minimum Output Current
20 A
Weight
1,414 lb
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Horsepower
41 hp

Description

Engine-Driven Welder, Color Stainless Steel, Generator Fuel Type Diesel, Phase Single-/Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 325 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, TIG Welding Maximum Output Current 325 A, TIG Welding Minimum Output Current 20 A, TIG Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, Remote Connection Type 12-Pin (Lincoln), 14-Pin (Lincoln)

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
