  9. Magnum 100SG Spool Gun
Shop All MIG Gun Consumables
Lincoln Electric

Magnum 100SG Spool Gun

product price: $301.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series Magnum 100SG
  • Handle Type Pistol Grip
  • Wire Size 0.030 in to 0.035 in
  • Duty Cycle (%) 30%
  • Application Aluminum Welding
See all product information

Product Information

Dimensions

Wire Size 0.030 in to 0.035 in
Neck Tube Size Medium
Cable Length (Ft.) 10 ft
Cable Length 10 ft
Maximum Wire Diameter 0.035 in

Details

Item Spool Gun
Series Magnum 100SG
Handle Type Pistol Grip
Duty Cycle (%) 30%
Application Aluminum Welding
MIG Gun Number 100SG
Rotation Deg. 0 Degrees
Trigger Standard
Neck Tube Angle 90 Degrees
Type Air Cooled
Neck Tube Material Metal
Neck Tube Type Fixed
Amps 130 A
Features Ergonomic Grip, Full Travel Mechanical Trigger, Lightweight
For Wire Type Aluminum
Liner Series KP2632-1
Spool Included Yes
Spool Capacity 4 in
Maximum Current 130 A
For Rear Connection Type Lincoln-Compatible
For Gas Type Ar (Argon)
Compatible with Model Magnum 100SG
Wire Feed Type Pull
Gas Diffuser Number KP2040-1
Compatible with Brand Lincoln

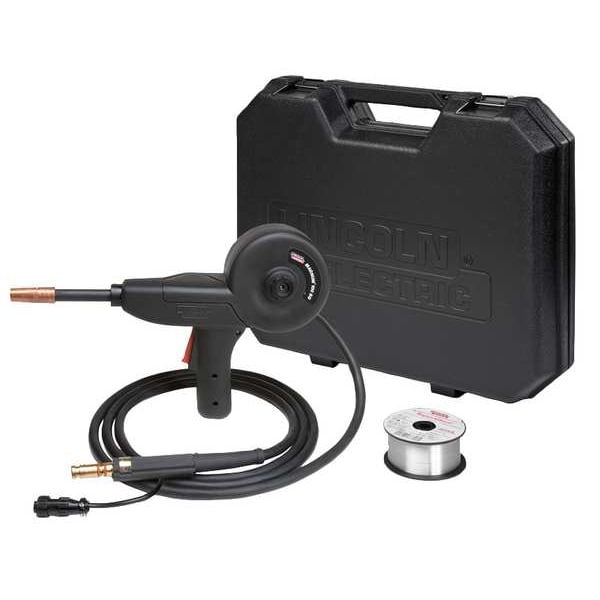

Includes .030-.035 in. (0.8-0.9 mm) drive roll, Contact tips (Qty. 3), Cushioned carrying case, Electrical harness with toggle switch (must be installed in power source), Spool gun with 10 ft. (3.0 m) cable, Spool of .035 in. (0.9 mm) 4043 aluminum alloy wire
Maximum Wire Feed Speed 550 in/min
Trigger Type Standard
Welding Processes MIG Welding (GMAW)
MIG Gun Type Spool Gun
Nozzle Series KP1938-1
Duty Cycle 30 %
Weight 13 lb
Cooling Method Air-Cooled
Tip Series Magnum 100SG
Model K2532-1

Description

When you need to weld aluminum, the Lincoln Electric Magnum 100SG Spool Gun is the ideal tool for the job. It has a pistol grip handle and can be used with 0.030 in to 0.035 in wire size. With an air cooled spool gun, you will be able to complete your welding task quickly and efficiently. The metal spool gun has a 10 ft cable length and rotates at 0 degrees, allowing you to adjust its position easily. This lightweight tool also features an angled neck tube that provides superior wire feeding capabilities. You can use it with 130 A at 30% duty cycle on MIG welding jobs that require aluminum welding wire of 0.030 in to 0.035 in diameter range. When working with MIG welding, make sure you have this Magnum 100SG Spool Gun on hand so you can produce high quality results every time.
