  5. MIG Welder, Easy MIG 180, 1, 208/240V AC, 30 to 180A DC, 30 %

This item is Discontinued.

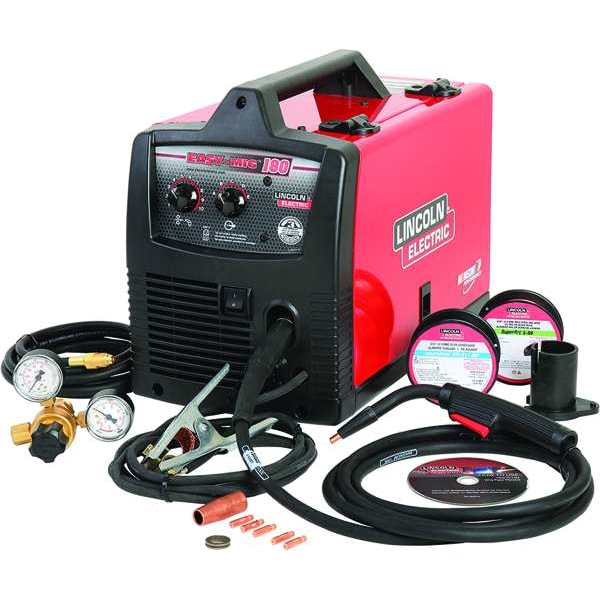

Lincoln Electric MIG Welder, Easy MIG 180, 1, 208/240V AC, 30 to 180A DC, 30 % K2698-1

MIG Welder, Easy MIG 180, 1, 208/240V AC, 30 to 180A DC, 30 % (Discontinued)

  • Mfr # K2698-1
  • Zoro # G3108296
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
K2698-1
Zoro #
G3108296
UPC #
015082689654
Country of Origin
Mexico

Dimensions

Mild Steel - Material Thickness
24 ga to 3/16 in
Overall Height
14 in
Overall Depth
18 1/2 in
Wire Size
0.025 in to 0.035 in, Flux 0.030 in to 0.045 in
Overall Width
10 1/8 in
For Maximum Material Thickness
1/2 in (Steel)
Minimum Wire Diameter
0.025 in (MIG-Steel), 0.030 in (Flux-Cored)
Max. Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
For Minimum Material Thickness
18 ga (Steel)
Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)

Details

Item
MIG Welder
Series
Easy MIG 180
Input Voltage
208/240V AC
Welded Material
Mild Steel, Aluminum and Stainless Steel
Phase
1
Welding Processes
Flux Core, MIG
Hz
60
Portability
Handheld Portable
Application
Ideal for Farm, Light Fabrication, Auto or Home Projects
Output Range
30 to 180A DC
Features
Precise Wire Drive, Spool Gun Ready, No Hassle Tool-less Design, Innovative Contact Tip, Drive Roll and Nozzle Storage
Input Amps
20
Rated Output
130A @ 17.6V DC/130A @ 20V DC
Standards
CSA certified
Includes
100L Gun, 10 ft Cable with Brass Gun Connection, 4 Pin MS-Type Connection for Trigger Control, (3) .025 in and .035 Contact Tips, Gasless Nozzle, Gas Nozzle, Spindle Adapter for 8 in Dia Spools, .030 in -.045 in Drive Roll, Gas Regulator and 52 in Hose For CO2 Or Argon, Sample Spool of .025 in MIG Wire, Sample spool of .035 in Flux Core Wire
Duty Cycle
30 %
For Wire Type
Flux-Cored, Solid
Weight
56 lb
Input Voltage (Nominal)
208V, 240V
Welding Mode
CV
Rated Output at Duty Cycle (MIG)
130 A @ 30%
Color
Red
Max. Amperage Range (MIG)
150 A - 300 A
Maximum Wire Feed Speed
500 in/min
Kit Includes
Contact Tips, Flow Gauge Regulator & Gas Hose, Flux-Cored Wire, MIG Gun, Solid Wire, Work Cable with Clamp
MIG Welding Minimum Output Current
30 A
Polarity
DC
MIG Welding Maximum Output Current
180 A
Input Frequency
60 Hz
MIG Welding Output @ Duty Cycle
130 A @ 17.6 V, 30% (208 V), 130 A @ 20 V, 30% (230 V)
Amperage Range
30 to 180 A
Minimum Wire Feed Speed
50 in/min
Welder Kit Type
MIG/Flux-Cored Package
Plug Type
6-50P
For Material Type
Mild Steel, Stainless Steel
Model
K2698-1
Maximum Amperage Range (MIG)
150 A - 300 A
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
brand-mfr model
LINCOLN ELECTRIC - K2698-1

Description

MIG Welder, Series Easy-MIG 180, Input Voltage 208V AC, 230V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux-Cored), Maximum Wire Feed Speed 500 in/min, Model K2698-1, MIG Welding Output @ Duty Cycle 130 A @ 17.6 V, 30 Percent (208 V), 130 A @ 20 V, 30 Percent (230 V)

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
