  5. MIG Welder, Power MIG 180 Dual, Phase Single-Phase , 120V AC, 208V AC, 230V AC

This item is Discontinued.

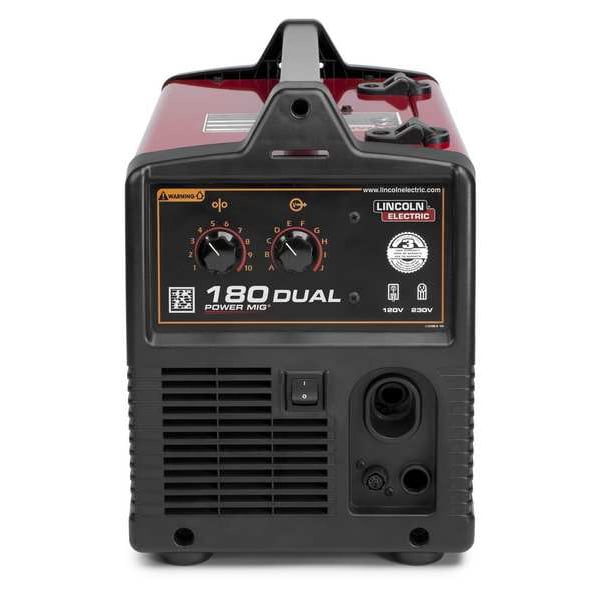

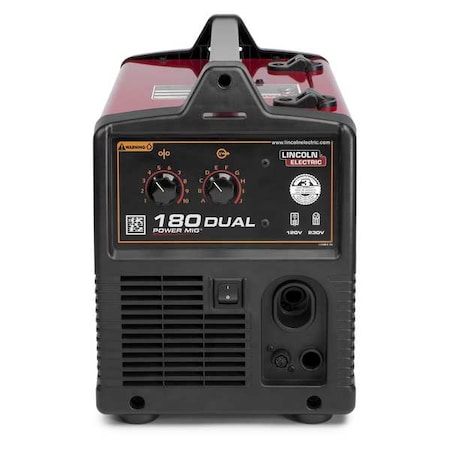

Lincoln Electric MIG Welder, Power MIG 180 Dual, Phase Single-Phase , 120V AC, 208V AC, 230V AC K3018-2

MIG Welder, Power MIG 180 Dual, Phase Single-Phase , 120V AC, 208V AC, 230V AC (Discontinued)

  • Mfr # K3018-2
  • Zoro # G902319566
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
K3018-2
Zoro #
G902319566
UPC #
015082537443
Country of Origin
Mexico

Dimensions

For Minimum Material Thickness
20 ga (Stainless Steel), 24 ga (Steel)
Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
Overall Height
14 in
Overall Width
10.2 in
Overall Depth
18.59 in
For Maximum Material Thickness
1/2 in (Steel), 3/16 in (Stainless Steel)

Details

Item
MIG Welder
Series
Power MIG 180 Dual
Phase
Single-Phase
Input Voltage
120V AC, 208V AC, 230V AC
MIG Welding Minimum Output Current
30 A
For Wire Type
Flux-Cored, Solid
Color
Red
Application
General Fabrication
Weight
68 lb
MIG Welding Output @ Duty Cycle
130 A @ 17.6 V, 30% (208 V), 130 A @ 20 V, 30% (230 V), 90 A @ 19.5 V, 20% (120 V)
Input Frequency
60 Hz
Welding Mode
CV
Amperage Range
30 A to 180 A
MIG Welding Maximum Output Current
180 A
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Includes
(3) 0.025 in. (0.6 mm) Contact Tips (KH710), (3) 0.035 in. (0.9 mm) Contact Tips (KH712), 0.025 - .030 in. (0.6 - 0.8 mm) and .035 in. (0.9 mm) Drive Rolls, 0.025 - .035 in. (0.6 - 0.9 mm) and .045 (1.1 mm) Wire Guides, 0.030 - .045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, Adjustable Gas Regulator and Hose, Gas and Gasless Nozzles, Gun Cable Liner (pre-installed in gun), Magnum(R) PRO 100L Gun, 10 ft. (3.0 m), Sample Spool (0.45 kg) Spool NR(R)-211-MP Flux-Cored Wire, Sample Spool (0.90 kg) Spool of SuperArc(R) L-56(R) Mild Steel MIG Wire, Work Cable and Clamp
Features
Brass-to-Brass Gun Connection Enhances Conductivity, Durable Cast Aluminum Gear Box Delivers Added Drive Torque and Quiet Operation, Easy-turn Numeric Drive Tension Indicator, Fully Adjustable Drive System Reduces the Chance of Wire Tangling and Crushing
Polarity
DC
Model
K3018-2
For Material Type
Mild Steel, Stainless Steel
Plug Type
5-15P, 6-50P
Maximum Wire Feed Speed
500 in/min
Input Voltage (Nominal)
120V, 208V, 240V
Rated Output at Duty Cycle (MIG)
130 A @ 30%, 90 A @ 20%
Welder Kit Type
MIG/Flux-Cored Package
Maximum Amperage Range (MIG)
150 A - 300 A
Kit Includes
Contact Tips, Drive Rolls, Flow Gauge Regulator & Gas Hose, Flux-Cored Wire, MIG Gun, Solid Wire, Work Cable with Clamp
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
brand-mfr model
LINCOLN ELECTRIC - K3018-2

Description

MIG Welder, Series Power MIG 180 Dual, Input Voltage 120V AC, 208V AC, 230V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux-Cored), Maximum Wire Feed Speed 500 in/min, Model K3018-2, MIG Welding Output @ Duty Cycle 130 A @ 17.6 V, 30 Percent (208 V), 130 A @ 20 V, 30 Percent (230 V), 90 A @ 19.5 V, 20 Percent (120 V)

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
