This item is Discontinued.

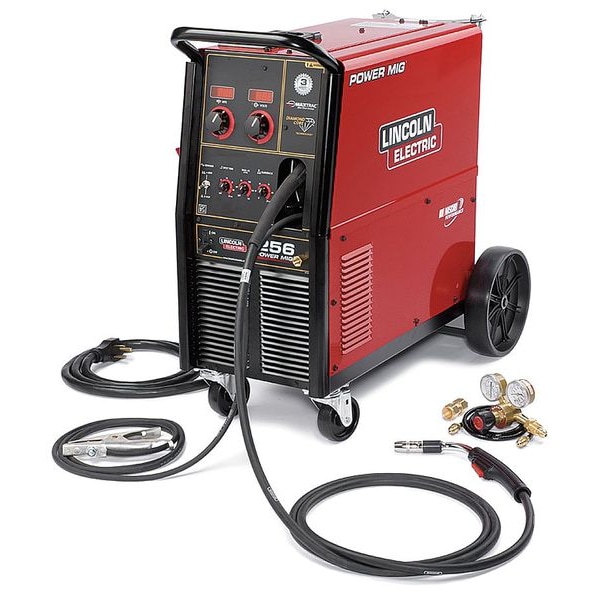

Lincoln Electric MIG Welder, Power MIG 256, Single-Phase, 208V AC, 230V AC, 30 to 300A DC, 40 % K3068-1

MIG Welder, Power MIG 256, Single-Phase, 208V AC, 230V AC, 30 to 300A DC, 40 % (Discontinued)

  • Mfr # K3068-1
  • Zoro # G7500245
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
K3068-1
Zoro #
G7500245
UPC #
015082916279
Country of Origin
Mexico

Dimensions

Mild Steel - Material Thickness
22 ga to 1/2 in
Stainless Steel - Material Thickness
16 ga to 5/16 in
Overall Height
31.8 in
Aluminum - Material Thickness
16 ga To 1/2 in
Overall Depth
38.8 in
Overall Width
18.9 in
Wire Size
0.025 in to 0.045 in
For Minimum Material Thickness
16 ga (Stainless Steel), 22 ga (Mild Steel)
For Maximum Material Thickness
1/2 in (Mild Steel), 5/16 in (Stainless Steel)
Minimum Wire Diameter
0.025 in (Mild Steel), 0.030 in (Stainless Steel), 0.035 in (Flux-Cored)
Maximum Wire Diameter
0.045 in (Flux-Cored), 3/64 in (Solid)
Power Cord Length
10 ft

Details

Item
MIG Welder
Series
Power MIG 256
Input Voltage
208V AC, 230V AC
Welded Material
Mild Steel, Aluminum, Stainless Steel
Phase
Single-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW)
Hz
60
Portability
Wheeled Mounted
Duty Cycle
40 %
Rated Output
250A @ 26V DC
Output Range
30 to 300A DC
Input Amps
56
Application
Autobody, Farm, Light Industrial, Maintenance and Repair, Metal Fabrication
Features
Delivers a Forgiving Arc, Excellent Out-of-Position Arc Stability, Low Spatter and a Wide Voltage Sweet Spot at a Given Wire Feed Speed for Steel, Stainless Steel or Aluminum. Maxtrac(R) Cast Aluminum Industrial Wire
Includes
Dual Cylinder Mounting Kit, Gas regulator and hose kit for argon blend gases, Magnum PRO 250L MIG Gun, Work clamp and 10 ft cable
MIG Welding Minimum Output Current
30 A
Input Frequency
60 Hz
For Material Type
Mild Steel, Stainless Steel
Minimum Wire Feed Speed
50 in/min
MIG Welding Maximum Output Current
300 A
For Wire Type
Flux-Cored, Solid
Welding Mode
CV
Weight
220 lb
Maximum Wire Feed Speed
700 in/min
Polarity
DC
MIG Welding Output @ Duty Cycle
250 A @ 26 V, 40%
Amperage Range
30 to 300 A
Color
Red
Remote Connection Type
7-Pin (Lincoln)
Model
K3068-1

Description

MIG Welder, Series Power MIG 256, Input Voltage 208V AC, 230V AC, Phase Single-Phase, Welding Mode CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.045 in (Flux-Cored), 3/64 in (Solid), Maximum Wire Feed Speed 700 in/min, Remote Connection Type 7-Pin (Lincoln), Model K3068-1, MIG Welding Output @ Duty Cycle 250 A @ 26 V, 40 Percent
