This item is Discontinued.

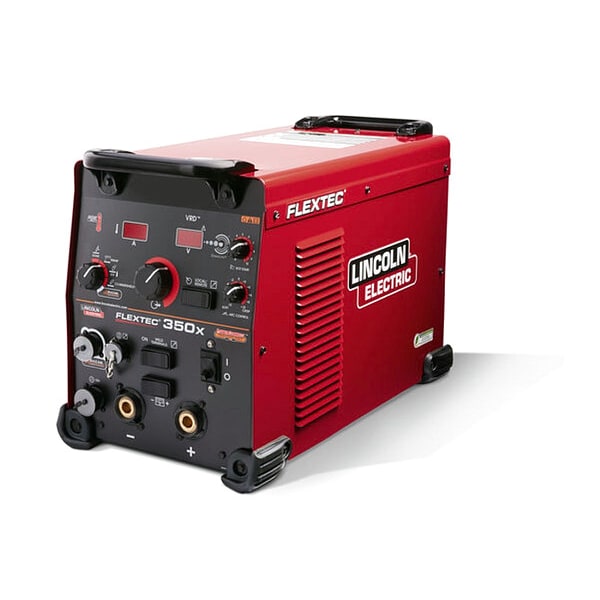

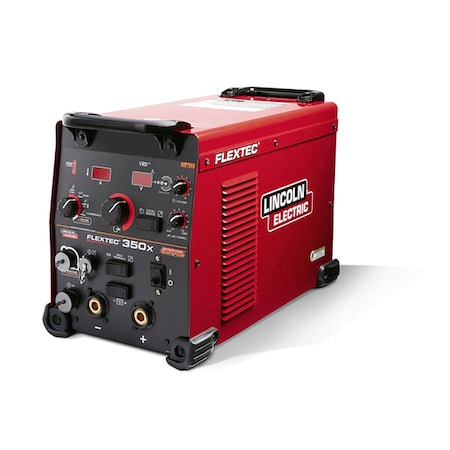

Lincoln Electric Multiprocess Welder, Flextec 350X PC, Single-/Three-Phase K4273-1

Multiprocess Welder, Flextec 350X PC, Single-/Three-Phase (Discontinued)

  • Mfr # K4273-1
  • Zoro # G210724199
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4273-1
Zoro #
G210724199
UPC #
015082853024
Country of Origin
United States

Dimensions

Overall Depth
24 in
Overall Width
13 in
Overall Height
17 in
Power Cord Length
8 1/2 ft
Minimum Wire Diameter
0.023 in (Mild Steel), 0.030 in (Stainless Steel), 0.035 in (Aluminum), 0.035 in (Flux-Cored)
For Minimum Material Thickness
14 Ga (Aluminum), 24 Ga (Stainless), 24 Ga (Steel)
Maximum Wire Diameter
1/16 in (Aluminum), 1/16 in (Mild Steel), 1/16 in (Stainless Steel), 5/64 in (Flux-Cored)
For Maximum Material Thickness
1/2 in (Stainless), 1/2 in (Steel), 3/8 in (Aluminum)

Details

Item
Multiprocess Welder
Series
Flextec 350X PC
Input Voltage
208V AC, 240V AC, 400V AC, 460V AC, 575V AC
Phase
Single-/Three-Phase
Welding Processes
Flux-Cored Welding (FCAW), Air Carbon Arc Cutting and Gouging (CAC-A), MIG Welding (GMAW), Pulsed MIG Welding (GMAW-P), Stick Welding (SMAW), TIG Welding (GTAW)
Features
Built-in Pulse Program, Supports 14-Pin and 5-Pin (ArcLink) Wire Feeders
Application
Construction and Field Erection, Cross Country Pipeline, General Fabrication, Heavy-Equipment, Heavy-Fabrication, Structural Fabrication
Includes
(4) 8.5 ft Conductor 8 AWG Input Power Cables
Standards
ISO
Input Frequency
50/60 Hz
Polarity
AC
For Material Type
Aluminum, Carbon Steel, Metal, Stainless Steel
Weight
84 lb
Welding Mode
CC, CV
Power Cord Included
Yes
Model
Flextec(R) 350X PowerConnect(R)
TIG Welding Maximum Output Current
425 A
MIG Welding Maximum Output Current
425 A
Minimum Wire Feed Speed
50 in/min
Stick Welding Maximum Output Current
425 A
Color
Black, Red
Max. Input Current
15 A @ 575V AC(Three-Phase), 19 A @ 460V AC (Three-Phase), 40 A @ 220-230V AC (Three-Phase), 45 A @ 200-208V AC (Three-Phase), 56 A @ 220-230V AC(Single-Phase), 62 A @ 200-208V AC (Single-Phase)
TIG Welding Minimum Output Current
10 A
Open Circuit Voltage
80 V DC
For Wire Type
Flux-Cored, Metal Cored, Solid
MIG Welding Output @ Duty Cycle
270 A @ 30.8V, 100% (Single-Phase), 300 A @ 32V, 100% (Three-Phase), 300 A @ 32V, 60%, 350 A @ 34V, 60%
Maximum Wire Feed Speed
800 in/min
Stick Welding Output @ Duty Cycle
270 A @ 30.8 V, 100% (Single-Phase), 300 A @ 32 V, 60% (Single-Phase), 350 A @ 34 V, 60% (Three-Phase), 300 A @ 32V, 100% (Three-Phase)
Effective Input Current
15 A @ 575V AC (Three-Phase), 19 A @ 460V AC (Three-Phase), 40 A @ 220-230V AC (Three-Phase), 45 A @ 200-208V AC (Three-Phase), 56 A @ 220-230V AC (Single-Phase), 62 A @ 200-208V AC (Single-Phase)
TIG Welding Output @ Duty Cycle
270 A @ 20.8 V, 100% (Single-Phase), 300 A @ 22 V, 100% (Three-Phase), 300 A @ 22 V, 60%, 350 A @ 24 V, 60%
MIG Welding Minimum Output Current
30 A
Stick Welding Minimum Output Current
15 A

Description

Multiprocess Welder, Series Flextec 350X PC, Input Voltage 208V AC, 240V AC, 400V AC, 460V AC, 575V AC, Phase Single-/Three-Phase, Welding Mode CC, CV, Polarity AC, Input Frequency 50/60 Hz, Welding Processes Flux-Cored Welding (FCAW), Air Carbon Arc Cutting and Gouging (CAC-A), MIG Welding (GMAW), Pulsed MIG Welding (GMAW-P), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 425 A, TIG Welding Maximum Output Current 425 A, MIG Welding Maximum Output Current 425 A
