  5. Multiprocess Welder, Multi-Weld, , 80V DC , Flux-Cored and Gouging, MIG, Stick , 350A / 34V / 100% DC+

This item is Discontinued.

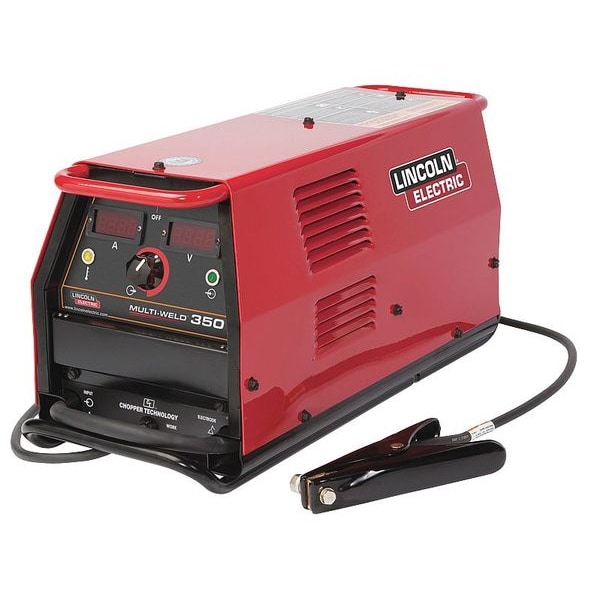

Lincoln Electric Multiprocess Welder, Multi-Weld, , 80V DC , Flux-Cored and Gouging, MIG, Stick , 350A / 34V / 100% DC+ K1735-1

Multiprocess Welder, Multi-Weld, , 80V DC , Flux-Cored and Gouging, MIG, Stick , 350A / 34V / 100% DC+ (Discontinued)

  • Mfr # K1735-1
  • Zoro # G7172891
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
K1735-1
Zoro #
G7172891
UPC #
015082510743
Country of Origin
United States

Dimensions

Overall Height (In.)
11 3/5 in
Overall Width (In.)
10 in
Overall Depth (In.)
21 1/2 in
Overall Width
10 in
Overall Depth
21.5 in
Overall Height
11.6 in

Details

Item
Multiprocess Welder
Series
Multi-Weld 350
Input Voltage
80V DC
Function
Flux-Cored and Gouging, MIG, Stick
Rated Output
350A / 34V / 100% DC+
Features
Convenient Carrying Handles And Skids Double As Extra Protection From Abuse In The Field, Easy To Use Controls And A Large Control Knob Designed For Gloved Hands. Digital Meters Show Preset Values Before Welding And Actual Values While Welding, Memory Holds The Values For 5 Seconds After Welding Stops
Input (Amps)
165A
Amps AC
350ADC
Standards
ISO 9001 And ISO 14001
Application
Flux-Cored and Gouging., MIG, Stick
OCV
78 V
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW)
Includes
Work Clamp with 10 ft Lead
MIG Welding Maximum Output Current
175 A
Max. Input Current
165 A
Minimum Wire Feed Speed
125 in/min
Maximum Wire Feed Speed
600 in/min
Welding Mode
CC/CV
Weight
67 lb
Stick Welding Minimum Output Current
120 A
Max. Amperage Range (MIG)
150 A - 300 A
Stick Welding Maximum Output Current
260 A
Effective Input Current
165 A @ 80V DC (Single-Phase)
Polarity
DC
Welder Kit Type
Power Source Only
Plug Type
Bare Leads
Stick Welding Output @ Duty Cycle
120 A @ 36 V, 100%, 260 A @ 27 V, 25%
Input Voltage (Nominal)
(quarantine)
Kit Includes
Work Cable with Clamp
MIG Welding Minimum Output Current
120 A
Open Circuit Voltage
72 V
MIG Welding Output @ Duty Cycle
120 A @ 19 V, 100%, 175 A @ 22 V, 100%
Rated Output at Duty Cycle (Stick)
120 A @ 100%
For Wire Type
Flux-Cored
Max. Amperage Range (Stick)
150 A - 300 A
Model
K1735-1
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW)
brand-mfr model
LINCOLN ELECTRIC - K1735-1

Description

Multiprocess Welder, Series Multi-Weld 350, Input Voltage 80V DC, Welding Mode CC/CV, Polarity DC, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), Stick Welding Maximum Output Current 260 A, MIG Welding Maximum Output Current 175 A, For Wire Type Flux-Cored, Maximum Wire Feed Speed 600 in/min, Model K1735-1, Stick Welding Output @ Duty Cycle 120 A @ 36 V, 100 Percent, 260 A @ 27 V, 25 Percent
