  5. Multiprocess Welder, Power MIG 210MP, Single-Phase, 120V AC, 230V AC

This item is Discontinued.

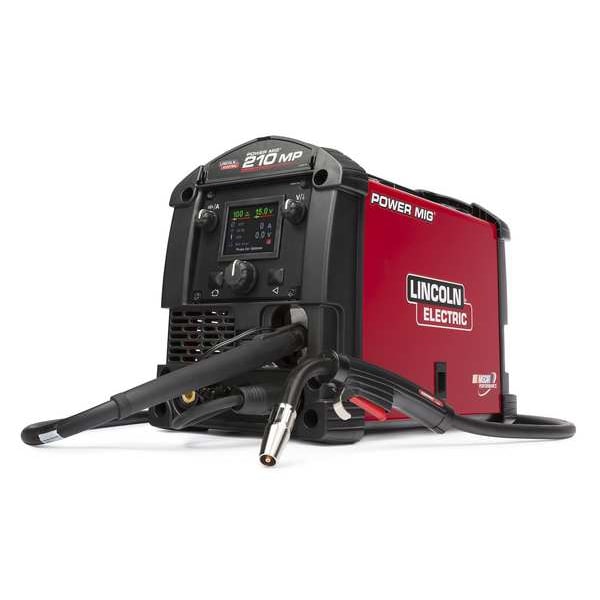

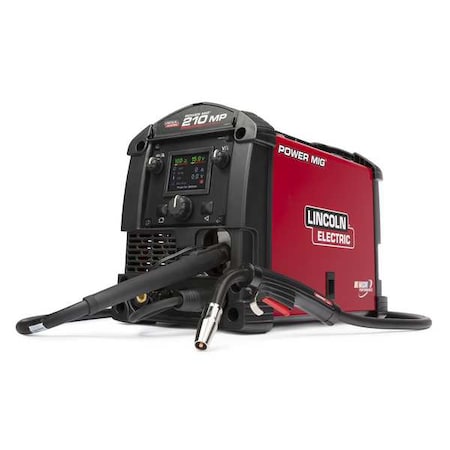

Lincoln Electric Multiprocess Welder, Power MIG 210MP, Single-Phase, 120V AC, 230V AC K3963-1

Multiprocess Welder, Power MIG 210MP, Single-Phase, 120V AC, 230V AC (Discontinued)

  • Mfr # K3963-1
  • Zoro # G902492665
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K3963-1
Zoro #
G902492665
UPC #
015082572949
Country of Origin
Mexico

Dimensions

Power Cord Length
6 ft
Overall Height
14 in
Maximum Wire Diameter
0.035 in (Solid), 0.045 in (Flux-Cored)
Overall Depth
19 in
Max. Wire Diameter
0.035 in (Solid)
Overall Width
10.75 in

Details

Item
Multiprocess Welder
Series
Power MIG 210MP
Input Voltage
120V AC, 230V AC
Phase
Single-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Kit Includes
Contact Tips, Flow Gauge/Regulator & Gas Hose, Flux-Cored Wire, MIG Gun, Solid Wire, Stick Electrode Holder with Cable, Work Cable with Clamp
Color
Red
Max. Amperage Range (MIG)
150 A - 300 A
Welding Mode
CC/CV
Maximum Wire Feed Speed
500 in/min
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance and Repair, Repair Welding
MIG Welding Minimum Output Current
20 A
Model
K3963-1
For Material Type
Mild Steel, Stainless Steel
Weight
40 lb
Includes
0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls, 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides, 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips, 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, Adjustable Gas Regulator and Hose, Electrode Holder and Lead Assembly, Gas and Gasless Nozzles, Gun Cable Liner (pre-installed in gun), Magnum(R) PRO 175L Gun, 10 ft. (3.0 m) (K4529-1), Sample 0.5 lb (0.22 kg) Spool Innershield(R) NR(R)-211-MP Flux-Cored Wire, Sample 1 lb (0.45 kg) Spool of SuperArc(R) L-56(R) Mild Steel MIG Wire, Work Cable and Clamp
Amperage Range
20 A to 220 A
MIG Welding Output @ Duty Cycle
100 A @ 19 V, 40% (120 V), 200 A @ 24 V, 25% (230 V)
For Wire Type
Flux-Cored, Solid
Remote Connection Type
6-Pin (Lincoln)
Features
Cold Contactor Safety, Compact, Continuous Wire Feed Speed Adjustment and Selectable Voltage Ranges for Precise Control, Fan-Cooled for Long Life Expectancy, Lightweight and Easy to Use, Portable, Welds Up to 1/8 in Mild Steel
Polarity
DC
MIG Welding Maximum Output Current
220 A
Input Voltage (Nominal)
120V
Input Frequency
60 Hz
Welder Kit Type
MIG/Stick Package
Plug Type
5-15P, 6-50P
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
LINCOLN ELECTRIC - K3963-1
TIG Welding Maximum Output Current
220 A
TIG Welding Minimum Output Current
20 A
TIG Welding Output @ Duty Cycle
100 A @ 14 V, 100% (230 V), 125 A @ 15 V, 40% (120 V), 175 A @ 17 V, 30% (230 V), 90 A @ 13.6 V, 100% (120 V)
Stick Welding Output @ Duty Cycle
100 A @ 24 V, 100% (230 V), 175 A @ 27 V, 25% (230 V), 60 A @ 22.4 V, 100% (120 V), 80 A @ 23.2 V, 40% (120 V)
TIG Arc Control Feature
Lift Arc Start
Stick Welding Maximum Output Current
220 A
Stick Welding Minimum Output Current
20 A

Description

Multiprocess Welder, Series Power MIG 210MP, Input Voltage 120V AC, 230V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 220 A, TIG Welding Maximum Output Current 220 A, MIG Welding Maximum Output Current 220 A, For Wire Type Flux-Cored, Solid, Maximum Wire Diameter 0.035 in (Solid), 0.045 in (Flux-Cored)

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
