  5. Multiprocess Welder, Power MIG 210MP, Single-Phase, 120V AC, 230V AC

This item is Discontinued.

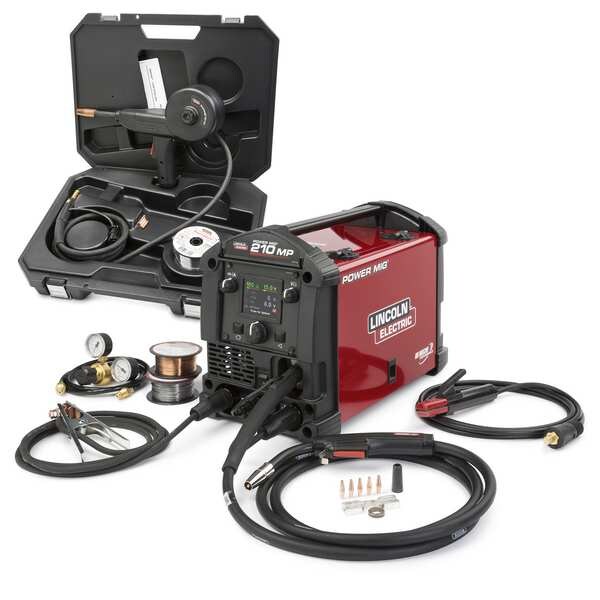

Lincoln Electric Multiprocess Welder, Power MIG 210MP, Single-Phase, 120V AC, 230V AC K4195-1

Multiprocess Welder, Power MIG 210MP, Single-Phase, 120V AC, 230V AC (Discontinued)

  • Mfr # K4195-1
  • Zoro # G702492575
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K4195-1
Zoro #
G702492575
UPC #
015082590448
Country of Origin
United States

Dimensions

Overall Width
10.75 in
Power Cord Length
6 ft
Overall Height
14 in
Max. Wire Diameter
0.035 in (Aluminum), 0.045 in (Flux-Cored)
Maximum Wire Diameter
0.035 in (Aluminum), 0.035 in (Solid), 0.045 in (Flux-Cored)
Overall Depth
19 in

Details

Item
Multiprocess Welder
Series
Power MIG 210MP
Input Voltage
120V AC, 230V AC
Phase
Single-Phase
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welder Kit Type
MIG/Stick/Aluminum Package
For Material Type
Aluminum, Mild Steel, Stainless Steel
Max. Amperage Range (MIG)
150 A - 300 A
Welding Mode
CC/CV
MIG Welding Maximum Output Current
220 A
MIG Welding Output @ Duty Cycle
100 A @ 19 V, 40% (120 V), 200 A @ 24 V, 25% (230 V)
Remote Connection Type
6-Pin (Lincoln)
Features
Advanced Options and Settings are Simple to Access, Dual Voltage Inputs (120V or 230V) Means You can Plug Into Any Common Power Supply, Intuitive Push-And-Turn Digital Controls Make Setup a Breeze, Large Color Display Guides You Through the Setup Process, Lightweight and Portable Just 40 lb
Maximum Wire Feed Speed
500 in/min
For Wire Type
Aluminum, Flux-Cored, Solid
Model
K4195-1
Kit Includes
Contact Tips, Flow Gauge/Regulator & Gas Hose, Flux-Cored Wire, MIG Gun, Solid Wire, Spool Gun, Stick Electrode Holder with Cable, Work Cable with Clamp
Plug Type
5-15P, 6-50P
Includes
0.025 - 0.030 in. (0.6 - 0.8 mm) and 0.035 in. (0.9 mm) Drive Rolls, 0.025 - 0.035 in. (0.6 - 0.9 mm) and 0.045 in. (1.1 mm) Wire Guides, 0.025 in. (0.6 mm) and 0.035 in. (0.9 mm) Contact Tips, 0.030 - 0.045 in. (0.8 - 1.1 mm) Knurled Drive Rolls, Adjustable Gas Regulator and Hose, Electrode Holder and Lead Assembly, Gas and Gasless Nozzles, Gun Cable Liner (pre-installed in gun), Magnum(R) PRO 100SG Spool Gun (K3269-1), Magnum(R) PRO 175L Gun, 10 ft. (3.0 m) (K4076-1), Sample 0.5 lb (0.22 kg) Spool Innershield(R) NR(R)-211-MP Flux-Cored Wire, Sample 1 lb (0.45 kg) Spool of SuperArc(R) L-56(R) Mild Steel MIG Wire, Work Cable and Clamp
MIG Welding Minimum Output Current
20 A
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance and Repair, Repair Welding
Weight
40 lb
Input Voltage (Nominal)
120V
Amperage Range
20 A to 220 A
Color
Red
Input Frequency
60 Hz
Polarity
DC
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
LINCOLN ELECTRIC - K4195-1
TIG Welding Minimum Output Current
20 A
Stick Welding Maximum Output Current
220 A
Stick Welding Minimum Output Current
20 A
TIG Arc Control Feature
Lift Arc Start
TIG Welding Maximum Output Current
220 A
TIG Welding Output @ Duty Cycle
100 A @ 14 V, 100% (230 V), 125 A @ 15 V, 40% (120 V), 175 A @ 17 V, 30% (230 V), 90 A @ 13.6 V, 100% (120 V)
Stick Welding Output @ Duty Cycle
100 A @ 24 V, 100% (230 V), 175 A @ 27 V, 25% (230 V), 60 A @ 22.4 V, 100% (120 V), 80 A @ 23.2 V, 40% (120 V)

Description

Multiprocess Welder, Series Power MIG 210MP, Input Voltage 120V AC, 230V AC, Phase Single-Phase, Welding Mode CC/CV, Polarity DC, Input Frequency 60 Hz, Welding Processes Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW), Stick Welding Maximum Output Current 220 A, TIG Welding Maximum Output Current 220 A, MIG Welding Maximum Output Current 220 A, For Wire Type Aluminum, Flux-Cored, Solid
