This item is Discontinued.

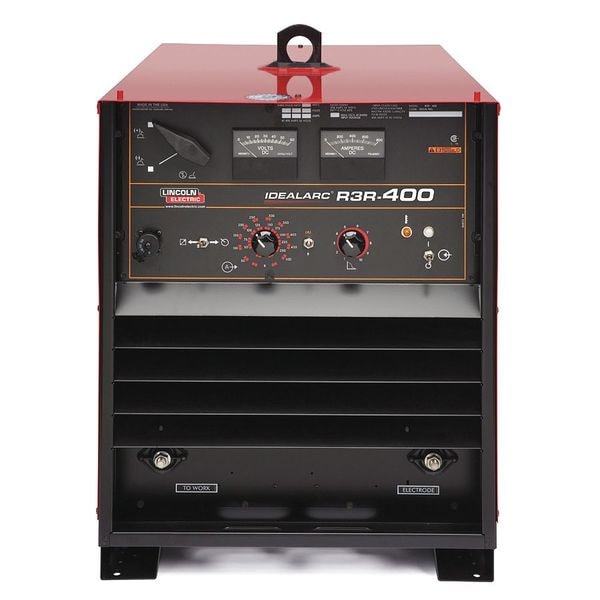

Lincoln Electric Stick Welder, Idealarc Series, 240/480 K1285-16

Stick Welder, Idealarc Series, 240/480 (Discontinued)

  • Mfr # K1285-16
  • Zoro # G9964403
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K1285-16
Zoro #
G9964403
UPC #
015082051413
Country of Origin
United States

Dimensions

Overall Height (In.)
27 1/2 in
Overall Depth (In.)
33 1/10 in
Overall Width (In.)
22 3/10 in
Overall Width
22.3 in
Overall Depth
33.1 in
Overall Height
27.5 in

Details

Item
Stick Welder
Series
Idealarc R3R-500
Input Voltage
240/480
Polarity
DC
Amps AC
500 A
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output
400A/36V @ 60%
Duty Cycle
400A/36V/60%
Output Range (Amps)
60 to 500
OCV
67 V
Input (Amps)
74/37
Hz
60
Welding Range (Amps AC)
60 to 500
Welding Amp Range Low
60
Application
Industrial Production, Maintenance and Repair, Shop/Farm, Welding Education
Welding Amp Range High
500
Input Voltage (Nominal)
240V, 480V
Rated Output at Duty Cycle (Stick)
400 A @ 60%
For Material Type
Mild Steel, Stainless Steel
Stick Welding Maximum Output Current
400 A
Welding Mode
CC
Welder Kit Type
Power Source Only
Kit Includes
Power Source Only
Plug Type
Bare Leads
Effective Input Current
74/37 A (Three-Phase)
TIG Welding Output @ Duty Cycle
400 A @ 36 V, 60%
Max. Amperage Range (Stick)
Greater than 300 A
Phase
Three-Phase
Input Frequency
60 Hz
Open Circuit Voltage
67 V DC
TIG Welding Maximum Output Current
400 A
Color
Red
Weight
428 lb
Stick Welding Output @ Duty Cycle
400A @ 36V, 60%
Model
K1285-16
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
LINCOLN ELECTRIC - K1285-16
Welder Type
Power Source Only

Description

Stick Welder, For Material Type Mild Steel, Stainless Steel, Input Frequency 60 Hz, Input Voltage 230V AC, 460V AC, Phase Three-Phase, Polarity DC, Model K1285-16, Stick Welding Maximum Output Current 400 A, TIG Welding Maximum Output Current 400 A, Stick Welding Output @ Duty Cycle 400A @ 36V, 60 Percent, TIG Welding Output @ Duty Cycle 400 A @ 36 V, 60 Percent, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW), Welding Mode CC
