This item is Discontinued.

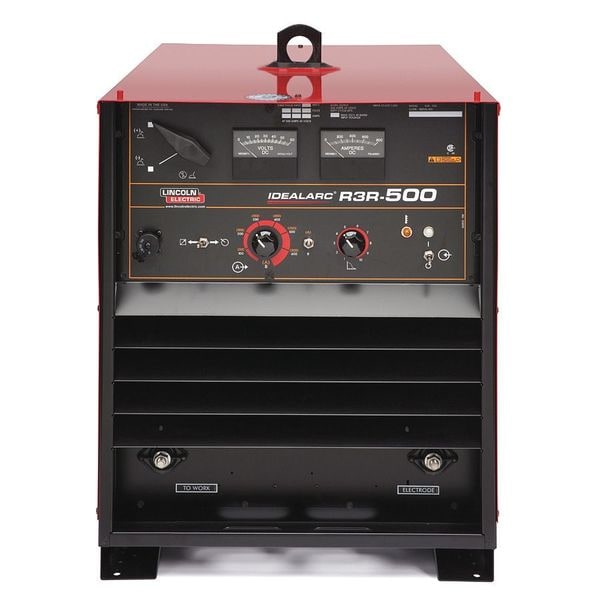

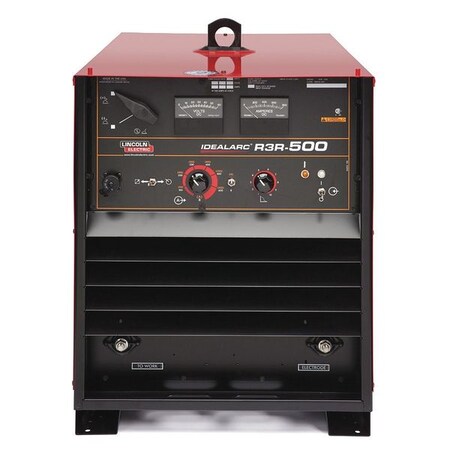

Lincoln Electric Stick Welder, Idealarc Series, 240/480 K1286-16

Stick Welder, Idealarc Series, 240/480 (Discontinued)

  • Mfr # K1286-16
  • Zoro # G9964394
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K1286-16
Zoro #
G9964394
UPC #
015082051628
Country of Origin
United States

Dimensions

Overall Depth (In.)
33 1/10 in
Overall Height (In.)
27 1/2 in
Overall Width (In.)
22 3/10 in
Overall Height
27.5 in
Overall Depth
33.1 in
Overall Width
22.3 in

Details

Item
Stick Welder
Series
Idealarc R3R-500
Input Voltage
230V AC, 460V AC
Polarity
DC
Amps AC
625 A
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output
500A/40V @ 60%
Duty Cycle
500A/40V/60%
Welding Amp Range High
625
Application
Industrial Production, Maintenance and Repair, Shop/Farm, Welding Education
OCV
67 V
Welding Amp Range Low
72
Output Range (Amps)
72 to 625
Input (Amps)
88/44
Hz
60
Welding Range (Amps AC)
72 to 625
Features
Arc Gouge With The R3R-500 Using Up To 3/8 In. (9.5 Mm) Diameter Carbon Electrode, Easy To Operate - Calibrated Current Control Knob Makes Procedure Setting Simple And Easy, Polarity Switch, Voltmeter And Ammeter Are Standard On The K1286-16 R3R-500, Smooth Arc - Makes It Easy To Weld With Mild Steel, Low Hydrogen, Stainless Steel And Hardfacing Electrodes, Substantial Amperage Ranges Include The R3R-500 At 72-625 Amps
Includes
Power Source Only
Color
Black/Red
Open Circuit Voltage
67 V
Phase
Three-Phase
Input Frequency
60 Hz
Rated Output at Duty Cycle (Stick)
500 A @ 60%
Kit Includes
Power Source Only
TIG Welding Maximum Output Current
500 A (Three-Phase)
Plug Type
Bare Leads
Max. Amperage Range (Stick)
Greater than 300 A
Stick Welding Maximum Output Current
500 A (Three-Phase)
Stick Welding Output @ Duty Cycle
500A @ 40V, 60%
Input Voltage (Nominal)
240V, 480V
Welding Mode
CC
Welder Kit Type
Power Source Only
TIG Welding Output @ Duty Cycle
500 A @ 40 V, 60%
Weight
460 lb
For Material Type
Mild Steel, Stainless Steel
Effective Input Current
88/44 A (Three-Phase)
Model
K1286-16
Welder Type
Power Source Only
brand-mfr model
LINCOLN ELECTRIC - K1286-16
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)

Description

Stick Welder, For Material Type Mild Steel, Stainless Steel, Input Frequency 60 Hz, Input Voltage 230V AC, 460V AC, Phase Three-Phase, Polarity DC, Model K1286-16, Stick Welding Maximum Output Current 500 A (Three-Phase), TIG Welding Maximum Output Current 500 A (Three-Phase), Stick Welding Output @ Duty Cycle 500A @ 40V, 60 Percent, TIG Welding Output @ Duty Cycle 500 A @ 40 V, 60 Percent, Welding Processes Air Carbon Arc Cutting and Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW)
