  5. Stick Welder, Invertec(R) V155-S Series, 120VAC

This item is Discontinued.

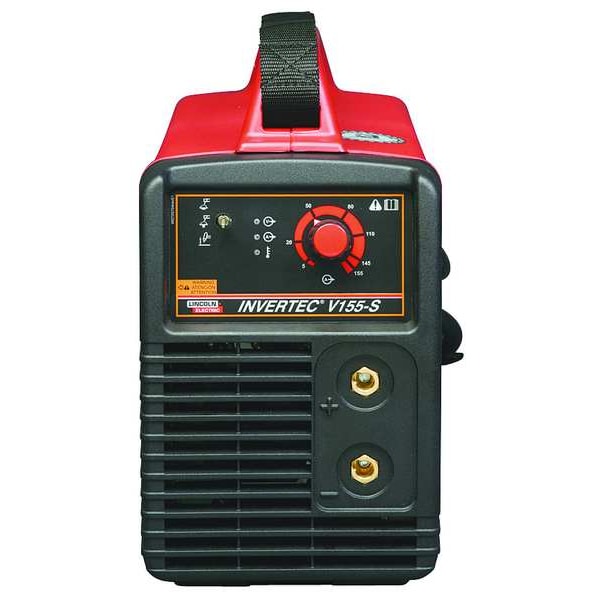

Lincoln Electric Stick Welder, Invertec(R) V155-S Series, 120VAC K2605-1

Stick Welder, Invertec(R) V155-S Series, 120VAC (Discontinued)

  • Mfr # K2605-1
  • Zoro # G2788317
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
K2605-1
Zoro #
G2788317
UPC #
015082671475
Country of Origin
Poland

Dimensions

Overall Height (In.)
11 3/10 in
Overall Width (In.)
6 1/5 in
Overall Depth (In.)
15 2/5 in
Power Cord Length
6 3/5 ft
Overall Width
6.2 in
Overall Height
11.3 in
Overall Depth
15.4 in

Details

Item
Stick Welder
Series
Invertec V155-S
Includes
Fully Adjustable Shoulder Strap, Stick Electrode holder, Cable and Twist Mate Plug, Work Cable and Clamp with Twist Mate Plug
Input Voltage
115V AC, 230V AC
Features
Auto-Adaptive Arc Force, Automatic Hot Start, Fan-As-Needed(TM) (F.A.N.(TM)) Reduces Noise And Dust Inside The Machine, Two Stick Modes
Phase
Single-Phase
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Duty Cycle
100%
Amps AC
105A @ 14.2V
Input (Amps)
21.5
Hz
50/60
Rated Output
105A @ 14.2V
OCV
75
Polarity
DC
Output Range (Amps)
5 to 155
Application
Autobody/Farm, Light Duty Metal Fabrication, Maintenance
Input Frequency
50/60 Hz
TIG Welding Minimum Output Current
5 A
Cable Connection Type
Dinse-Style
Stick Welding Output @ Duty Cycle
100 A @ 24 V, 100% (230 V), 100 A @ 24 V, 30% (120 V), 145 A @ 25.8 V, 30% (230 V), 75 A @ 23 V, 100% (120 V)
Stick Welding Maximum Output Current
155 A
TIG Welding Output @ Duty Cycle
100 A # 14 V, 100% (230 V), 105 A @ 14.2 V, 100% (120 V), 130 A @ 15.2 V, 30% (120 V), 155 A @ 16.2 V, 30% (230 V)
TIG Arc Start Feature
Lift Arc Start
Stick Welding Minimum Output Current
5 A
TIG Welding Maximum Output Current
130 A
Weight
14.7 lb
Power Cord Included
Yes
Color
Red
Plug Type
5-15P
Open Circuit Voltage
75 V DC
Welding Mode
CC
Model
K2605-1

Description

Stick Welder, Input Frequency 50/60 Hz, Input Voltage 115V AC, 230V AC, Phase Single-Phase, Polarity DC, Model K2605-1, Stick Welding Maximum Output Current 155 A, TIG Welding Maximum Output Current 130 A, Cable Connection Type Dinse-Style, Stick Welding Output @ Duty Cycle 100 A @ 24 V, 100 Percent (230 V), 100 A @ 24 V, 30 Percent (120 V), 145 A @ 25.8 V, 30 Percent (230 V), 75 A @ 23 V, 100 Percent (120 V)
