  5. TIG Welder, Square Wave TIG 200 Series, 115V AC, 230V AC, 100 Max. Output Amps

This item is Discontinued.

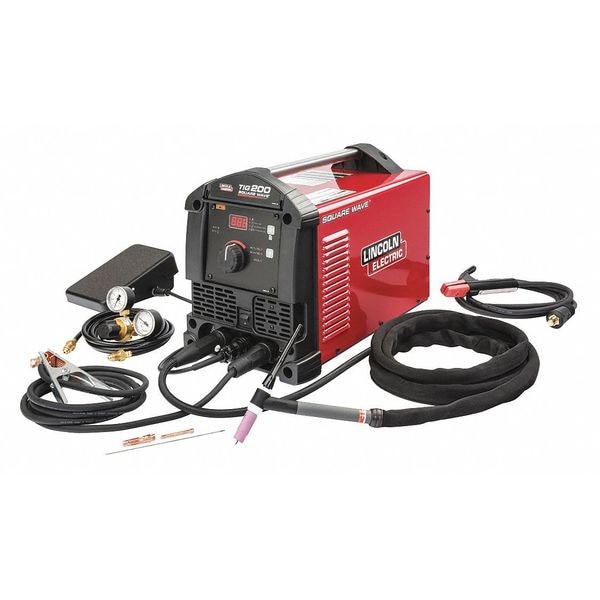

Lincoln Electric TIG Welder, Square Wave TIG 200 Series, 115V AC, 230V AC, 100 Max. Output Amps K5126-1

TIG Welder, Square Wave TIG 200 Series, 115V AC, 230V AC, 100 Max. Output Amps (Discontinued)

  • Mfr # K5126-1
  • Zoro # G9681239
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
K5126-1
Zoro #
G9681239
UPC #
015082616285
Country of Origin
Mexico

Dimensions

Mild Steel - Material Thickness
0.004 in to 3/8 in
Aluminum - Material Thickness
0.012 in to 3/8 in
Overall Height
14 in
Overall Depth
19.25 in
Overall Width
10.75 in
For Maximum Material Thickness
3/8 in (Aluminum), 3/8 in (Steel)
For Minimum Material Thickness
0.004 in (Steel), 0.012 in (Aluminum)

Details

Welder Industrial Class
Medium
Item
TIG Welder
Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
115V AC, 230V AC
Rated Output
10A @ 125V
Welder Max. Output Amps
100
Welder Min. Output Amps
10
Welder Duty Cycle
60 %
Series
Square Wave TIG 200
Welder Input Hz
50/60
Input (Amps)
104/94/47
Welded Material
Aluminum, Mild Steel, Stainless Steel
Welder Input Phase
1
Polarity
AC/DC
Application
TIG/Stick
Features
Pulse, Stick
Power Source Weight
46 lb
Includes
200A Stick Electrode Holder, Foot Amptrol with 25 ft Cable & 6-Pin Connector (K870), Gas Regulator/Flowmeter & 10 ft. (3 m) Gas Hose Kit, Ground Clamp and Cable, PTA-17F TIG Torch Ready Pak with 12.5 ft 1-Piece Cable (K1782-14)
Phase
Single-Phase
For Material Type
Aluminum, Mild Steel, Stainless Steel
TIG Welding Minimum Output Current
10 A
Welding Mode
CC
TIG Arc Start Feature
High Frequency Start
Stick Welding Minimum Output Current
10 A
Stick Welding Maximum Output Current
170 A
Amperage Range
10 to 200 A
Weight
46.5 lb
TIG Welding Maximum Output Current
200 A
TIG Welding Output @ Duty Cycle
100 A, 40%, (120 V), 125 A, 25% (120 V), 130 A, 60% (230 V), 160 A, 40% (230 V), 200 A, 25% (230 V), 85 A, 60% (120 V)
Remote Control
Foot Control Included
Input Frequency
50/60 Hz
Stick Welding Output @ Duty Cycle
100 A, 60% (230 V), 170 A, 20% (230 V), 65 A, 60% (120 V), 75 A, 20% (120 V)
Remote Connection Type
6-Pin (Lincoln)
Color
Red
Pulse Frequency
0.1 to 20 pulses/second
Model
K5126-1

Description

TIG Welder, For Material Type Aluminum, Mild Steel, Stainless Steel, For Maximum Material Thickness 3/8 in (Aluminum), 3/8 in (Steel), For Minimum Material Thickness 0.004 in (Steel), 0.012 in (Aluminum), Input Frequency 50/60 Hz, Phase Single-Phase, Polarity AC/DC, Series Square Wave TIG 200, Stick Welding Maximum Output Current 170 A, Stick Welding Minimum Output Current 10 A
