  9. Bare Stub Oil Pump, Med Pressure, 6 GPM

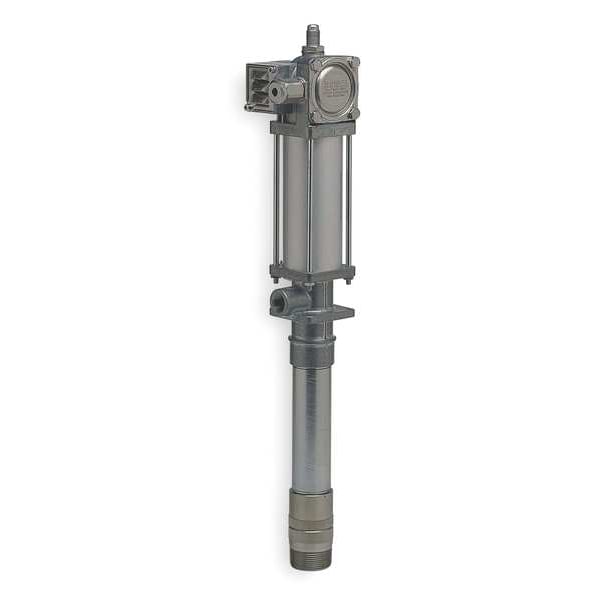

Lincoln Industrial Bare Stub Oil Pump, Med Pressure, 6 GPM 84933 - main

Bare Stub Oil Pump, Med Pressure, 6 GPM

  • Mfr # 84933

  • Zoro # G0670004

product price: $1,068.99
/ea
Free Shipping & Returns

Key Features

Type
Medium Pressure
Air Motor Size (In.)
2-1/2
Pump Ratio
5:1
Container Size
16 to 55 gal.
Consumption @ 100 PSI
10 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
84933
Zoro #
G0670004
UPC #
959928493312
Country of Origin
China

Dimensions

Air Motor Size (In.)
2-1/2
Container Size
16 to 55 gal.
Outlet Size
1/2"
Overall Length
24 7/8 in
Air Inlet Size
1/4 NPT
Height Above Container
15 7/8 in
For Container Size
16 gal, 55 gal, 250 gal, 275 gal
Suction Tube Length
6 in
Bung Connection Dia.
2 in

Details

Item
Air Operated Drum Pump
Type
Medium Pressure
Pump Ratio
5:1
Consumption @ 100 PSI
10 cfm
Working Flow Max. (GPM)
6
Max. Output
6.0 gpm
Fluid Inlet Thread (In.)
1"F/1.5"M
Outlet Pressure Max. (PSI)
1000
Pump for Multiple Outlets
Yes
Fluid Outlet Thread (In.)
1/2
Standards
NPT
Air Inlet (In.)
1/4
Min. Air Inlet Pressure
40
Max. Air Inlet PSI
200
Ounces per Stroke
7
Includes
Bung Bushing
Suction Tube Material
Steel
Includes Spout
No
Suction Tube OD
1 1/2 in
Max. Fluid Temp.
120 Degrees F
Pump Connection ID
1/2 in
Discharge Connection Type
NPT
Diesel Exhaust Fluid Compatible
No
Includes Suction Tube
Yes
Min. Fluid Temp.
30 Degrees F
Power Source
Air
Includes Bung Adapter
Yes
Min. Air Pressure
40 psi
Seal Material
Buna-N
Wetted Materials
Brass, Buna-N, Steel
Max. Air Pressure
200 psi
Variable Speed
No
Not Recommended Chemicals
Diesel Fuel, Grease, Kerosene
Self-Priming
Yes
For Container Type
Drum
Metered
No
Discharge Tube Outlet ID
1/2 in
Air Consumption
10 cfm
Includes Discharge Hose
No
Pump Connection Type
FNPT
Runs Dry
No
Housing Material - Pumps
Steel
Compatible Chemicals
Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil
For Media Type
Automatic Transmission Fluid, Fluid Lubricants, Gear Lubricants, Motor Oil
Includes Nozzle
No
Ratio
5:1
Max. Flow Rate
6 gpm
Food Grade
No
Max. Oil Flow
6 gpm
Gear Lube
R
Grease
X
Max. Outlet Pressure
1,000 psi
Explosion Proof
No
Adapter Connection Type
FNPT
Features
Backed by the Most Extensive, Qualified Service Network in the Industry, Ball Check Valve Helps Keep Pump Primed, Designed for Greater Cycle Rates, Exceeds Maximum Limits Recommended for Competitive Pumps, Lightweight, Corrosion-Resistant Zinc Head Casting Design Incorporates Uniform Wall Thickness, Keeps Pumping While Other Pumps Slow down or Stop Due to Icing, Pneumatically Assisted Mechanical Air Valve Assures Positive Tripping, Precision-Machined, Hardened Steel Slide Valve for Longer Life, Springless Air Motor Construction Prevents Premature Pump Failure Due to Spring Fatigue
Housing Finish
Zinc Casted
Agency Compliance
OSHA

Description

Air Operated Drum Pump, Max. Air Pressure 200 psi, Suction Tube Material Steel, Self-Priming Yes, Overall Length 24 7/8 in, Explosion Proof No, Discharge Connection Type NPT
