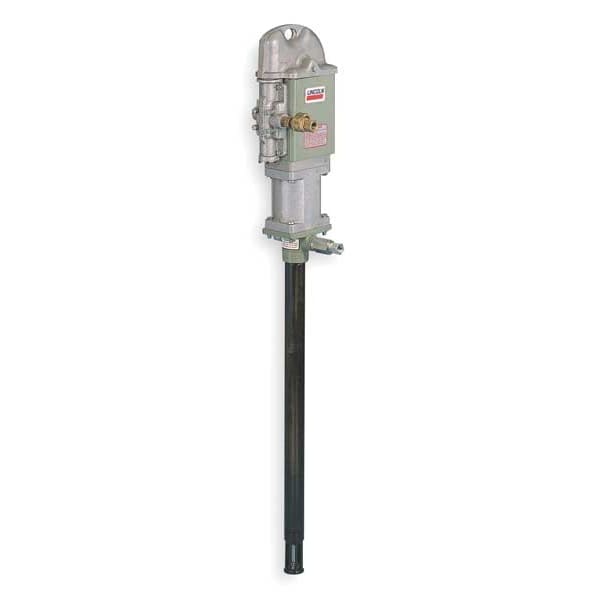

Lincoln Industrial Oil Pump Transfer System, Air-Operated 1901 - main

Oil Pump Transfer System, Air-Operated

  • Mfr # 1901

  • Zoro # G3317824

product price: $4,608.99
/ea
Free Shipping & Returns

Key Features

Type
Air-Operated
Air Motor Size (In.)
4-1/4
Pump Ratio
12:1
Container Size
55 gal.
Consumption @ 100 PSI
40 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1901
Zoro #
G3317824
UPC #
095992099255
Country of Origin
China

Dimensions

Air Motor Size (In.)
4-1/4
Container Size
55 gal.
Outlet Size
3/4" NPT
Air Inlet Size
1/2 FNPT
For Container Size
55 gal
Suction Tube Length
34 in

Details

Item
Air Operated Drum Pump
Type
Air-Operated
Pump Ratio
12:1
Consumption @ 100 PSI
40 cfm
Working Flow Max. (GPM)
3
Min. Air Inlet Pressure
40
Outlet Pressure Max. (PSI)
2400
Ounces per Stroke
2.49
Includes
Bung Bushing
Air Inlet (In.)
1/2 NPT
Max. Air Inlet PSI
200
Pump for Multiple Outlets
Yes
Max. Output
3 gpm
Suction Tube OD
2 1/8 in
Max. Flow Rate
12.6 gpm
Discharge Connection Type
FNPT
Suction Tube Material
Steel
Housing Material - Pumps
Steel
Food Grade
No
Runs Dry
No
Includes Discharge Hose
No
Self-Priming
Yes
Max. Fluid Temp.
120 Degrees F
Includes Spout
No
Min. Fluid Temp.
30 Degrees F
Wetted Materials
Buna-N, Polyurethane, Steel
Max. Oil Flow
12.6 gpm
Ratio
12:1
Pump Connection Type
FNPT
For Container Type
Drum
Pump Connection ID
3/4 in
Includes Suction Tube
Yes
Compatible Chemicals
Automatic Transmission Fluid, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Max. Air Pressure
200 psi
Air Consumption
40 cfm
Includes Bung Adapter
No
Discharge Tube Outlet ID
3/4 in
For Media Type
Automatic Transmission Fluid, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil
Metered
No
Diesel Exhaust Fluid Compatible
No
Variable Speed
No
Not Recommended Chemicals
Diesel Fuel, Gear Lube, Grease, Kerosene
Includes Nozzle
No
Seal Material
Buna-N, Polyurethane
Power Source
Air
Explosion Proof
No
Grease
X
Max. Outlet Pressure
2,400 psi
Gear Lube
X
Features
Costs Much Less to Operate 3 Costs Much Less to Maintain, Gives Years of Dependable Trouble-Free Operation, Large Air Passages Allow Unrestricted Venting, Shovel-Type Pump Tube Used to Add Mechanical Priming to Normal Suction when Needed, Simplified Maintenance

Description

Air Drum Pump, Max. Air Pressure 200 psi, Spout Connection Size Not Applicable, Suction Tube Material Steel, Self-Priming Yes, Explosion Proof No, Discharge Connection Type FNPT, Features Large Air Passages, Shovel-Type Pump Tube Used to Add Mechanical Priming to Normal Suction when Needed, Simplified Maintenance, Spout Length Not Applicable, Food Grade No, Air Consumption 40 cfm, Hose Length Not Applicable, Variable Speed No, Includes Discharge Hose No, Includes Suction Tube Yes
