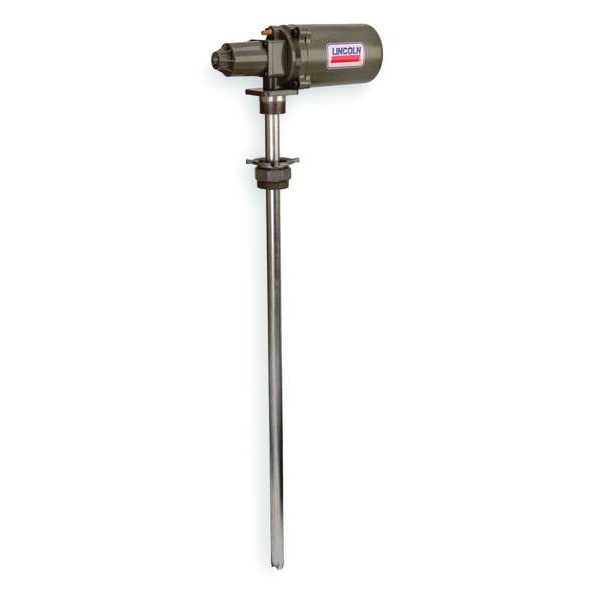

Lincoln Industrial Single Acting Oil Pump, Air, 6 GPM 4491 - main

Single Acting Oil Pump, Air, 6 GPM

  • Mfr # 4491

  • Zoro # G1949227

product price: $562.99
/ea
Free Shipping & Returns

Key Features

Type
Air Operated
Air Motor Size (In.)
3
Pump Ratio
3.5:1
Container Size
250 to 275 gal.
Consumption @ 100 PSI
7 cfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4491
Zoro #
G1949227
UPC #
00095992097312
Country of Origin
Taiwan, Province of China

Dimensions

Air Motor Size (In.)
3
Container Size
250 to 275 gal.
Outlet Size
3/8-1/2"
For Container Size
275 gal
Suction Tube Length
46 27/32 in
Air Inlet Size
1/4 FNPT
Air Outlet Size
1/8 in
Overall Length
50 11/16 in
Height Above Container
7 in
Bung Connection Dia.
2 in

Details

Item
Air Operated Drum Pump
Type
Air Operated
Pump Ratio
3.5:1
Consumption @ 100 PSI
7 cfm
Working Flow Max. (GPM)
6
Pump for Multiple Outlets
Yes
Min. Air Inlet Pressure
40
Max. Output
6.0 gpm
Max. Air Inlet PSI
120
Includes
Bung Bushing
Standards
FNPT
Fluid Outlet Thread (In.)
1/2
Air Inlet (In.)
1/4-18
Ounces per Stroke
4
Outlet Pressure Max. (PSI)
525
Fluid Inlet Thread (In.)
2" Bung
Pump Connection Type
FNPT
Discharge Tube Outlet OD
13/16 in
Compatible Chemicals
Automatic Transmission Fluid, Gear Lubricants, Oil
Includes Discharge Hose
No
Max. Fluid Temp.
120 Degrees F
Wetted Materials
Aluminum, Polyurethane, Steel
Seal Material
Polyurethane
Max. Air Pressure
120 psi
Includes Suction Tube
Yes
Air Consumption
7 cfm
Diesel Exhaust Fluid Compatible
No
Discharge Tube Outlet ID
1/2 in
Min. Air Pressure
20 psi
Max. Flow Rate
6 gpm
Max. Oil Flow
6 gpm
Discharge Connection Type
NPTF
For Media Type
Automatic Transmission Fluid, Gear Lubricants, Oil
Includes Bung Adapter
Yes
Min. Fluid Temp.
30 Degrees F
Housing Material - Pumps
Aluminum
Not Recommended Chemicals
Automatic Transmission Fluid, Diesel Fuel, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Kerosene
Pump Connection ID
1/2 in
Includes Nozzle
No
Suction Tube Material
Steel
Ratio
3.5:1
Includes Spout
No
Metered
No
Power Source
Air
Food Grade
No
Variable Speed
No
Self-Priming
Yes
For Container Type
Drum
Runs Dry
No
Suction Tube OD
3/4 in
Max. Outlet Pressure
500 psi
Explosion Proof
No
Gear Lube
NT
Adapter Connection Type
MNPT
Grease
NT
Features
Built-In Muffler for Quiet Operation, Cost-Effective Solution for Oil Distributors who Need to Supply Pumps for Customers who Purchase Bulk Oil in Tanks or Drums, Motor's Single-Stroke Action Delivers Cost Effective, High Performance and High Flow, Proven Horizontal, Valved-Piston Motor Design for Simplicity and Reliability, Provides Quick Dispense, Fill or Transfer with High-Volume Output

Description

Air Drum Pump, Max. Air Pressure 120 psi, Spout Connection Size Not Applicable, Suction Tube Material Steel, Self-Priming Yes, Overall Length 50 11/16 in, Explosion Proof No, Discharge Connection Type NPTF, Features Built in Muffler, Single-Stroke Action, Valved-Piston Motor Design, Spout Length Not Applicable, Food Grade No, Air Outlet Size 1/8 in, Bung Connection Dia. 2 in, Air Consumption 7 cfm, Hose Length Not Applicable, Variable Speed No, Includes Discharge Hose No
