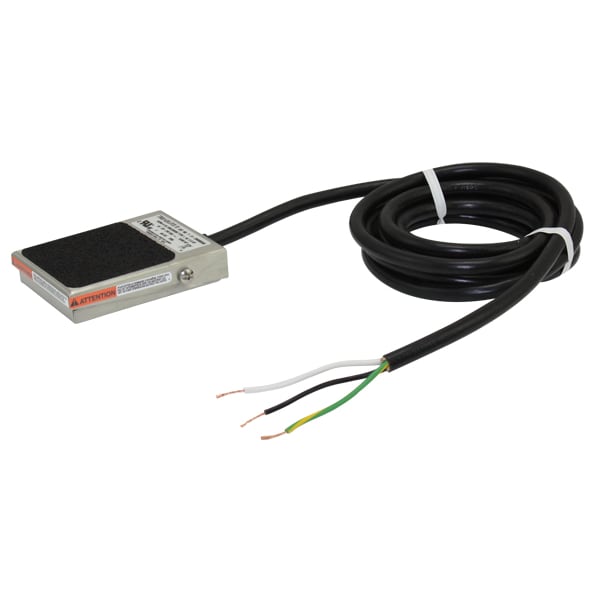

Linemaster Gnrl Prps Foot Swtch, Momentary Action T-91-SWANO38S - main

Gnrl Prps Foot Swtch, Momentary Action

  • Mfr # T-91-SWANO38S

  • Zoro # G3251157

product price: $147.99
/ea
Free Shipping & Returns

Key Features

Contact Form
SPST-NO
NEMA Rating
1, 4X, 6, 6P
Voltage Rating
125/250V AC
Color
Gray
Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T-91-SWANO38S
Zoro #
G3251157
UPC #
-
Country of Origin
United States

Dimensions

Width
2 5/8 in
Depth
1 in
Length
3 1/2 in
Cord Length
8 ft
Overall Width
2.63 in
Overall Height
0.85 in
Length (Straight Wireway)
3 1/2 in
Overall Depth
3.5 in

Details

Item
Foot Switch
Contact Form
SPST-NO
NEMA Rating
1, 4X, 6, 6P
Voltage Rating
125/250V AC
Color
Gray
Material
Stainless Steel
Cord Type
18/3
Action
Momentary
Current Rating
3
Features
Foot Treadle Pad, Light Pressure Required to Operate, Low Profile, Non-Skid
IP Rating
IP68
Standards
cURus, RoHS
Product Type
Foot Switch
Housing Materials
Stainless Steel
PURPOSE
Compact Versatile Low Profile Design
Actions
Momentary
Switch Connections
Pre-wired
Circuitries
SPST-NO (Form "A")
Cordsets
8-ft cordset, no plug
Electrical Ratings
3A, 125-250 VAC
Switch Type
Electrical
FEATURES & BENEFITS
Abrasive Blasting Alarm Applicator Bridgework Tool Button Machine Camera Cleaning Units Carnival Games Check-out Counters Computers Copy Holder For Typewriters Curer-Spot Data Collection System Date Machine Debeaker Deburring Desoldering Station Dictating Machine Digitizer Tablet Dispenser Epilator Etching Machine Feeder Filler & Dispenser Filter Station Finnisher Finishing Machine Former Handpiece Ion Air Gun Labeling Machine Measuring Machine Medical Equipment Mixer Opening Machine Pipe Turning Rolls Protractor/Inclinometer/Level Ribbon Tying Machine Saw Saw Mill Sealer Sealing Machine Security Systems Shaving Machine Solder Stripper Strobe Tuner Tattooing Equipment Teaching Machines Test Sets Tester Timer Twisting Machines UV Curing Systems Vacuum Investing Machines Vacuum Pencil Welders
MATERIALS
Nonskid base pad and foot treadle pad The low profile and light pressure required to operate reduces operator fatigue
ENCLOSURE
NEMA Type 1, 4X, 6, 6P • UL ENCLOSURE Type 1, 4X, 6, 6P • EN 60529 Degree Of Protection • IP68
Includes Potentiometer
No Potentiometer Included
Power Source
Electrically Corded
Number of Pedals
1
NEMA Enclosure Rating
1, 4X, 6, 6P
Termination Connection Type
Pre-Cabled
AC Contact Rating
3 A @ 125 to 250 V
Includes Foot Guard
No Guard Included
Series
Treadlite II
Hazardous Location Specification
Not Rated
Resistance Properties
Corrosion Resistant, Dust Tight, Waterproof

Description

Foot Switch, SPST-NO Contact Form, Voltage Rating 125/250V AC, NEMA Rating 1, 4X, 6, 6P, Current Rating 3, Material Stainless Steel, Color Gray, Momentary Action, Cord Type 18/3, Length 3 1/2 in, Width 2 5/8 in, Depth 1 in, Cord Length 8 ft, IP Rating IP68, Features Foot Treadle Pad, Light Pressure Required to Operate, Low Profile, Non-Skid, Standards cURus, RoHS
