  5. Linksys MGBSX1 GBIC SFP 1000MBPS MM FIBER SX
Linksys Linksys MGBSX1 GBIC SFP 1000MBPS MM FIBER SX MGBSX1 - main

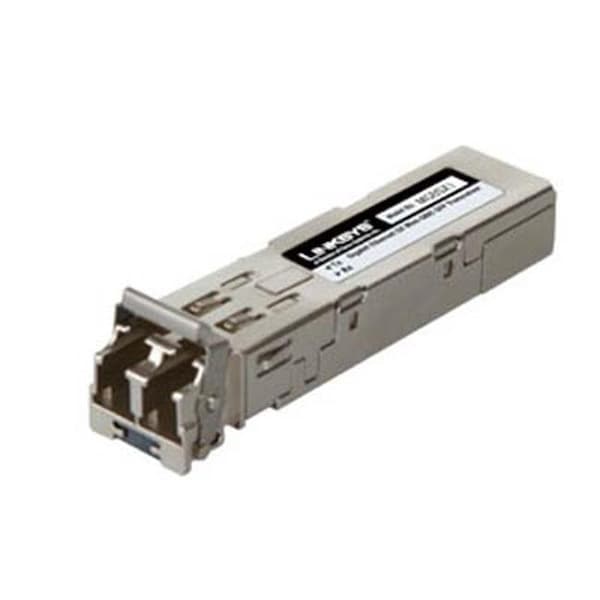

Linksys MGBSX1 GBIC SFP 1000MBPS MM FIBER SX

  • Mfr # MGBSX1

  • Zoro # G803988328

product price:  $202.99
/ea
Free Shipping & Returns

Key Features

Connection Type
LC
Application
Data Networking
For Use With
SR2024 - 24-Port 10/100/1000 Gigabit Switch, SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC, SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView, SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView, SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Maximum Distance Supported
1804.46 ft
Fiber Mode Supported
Multi-Mode
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MGBSX1
Zoro #
G803988328
UPC #
745883558766
Country of Origin
China

Details

Connection Type
LC
Application
Data Networking
Item
SFP Transceiver
For Use With
SR2024 - 24-Port 10/100/1000 Gigabit Switch, SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC, SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView, SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView, SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView
Maximum Distance Supported
1804.46 ft
Fiber Mode Supported
Multi-Mode
Number of Ports
1
Media Type Supported
Optical Fiber
Fiber Optic Cable Standard
50/125 μm, 62.5/125 μm
Ports
(1) LC 1000Base-SX

Description

Linksys GBIC SFP (Mini GBIC) Gigabit Interface Converter 1000Mbps Multi-Mode Fiber SX Transceiver.MODEL: MGBSX1 VENDOR: LINKSYS FEATURES: Gigabit Ethernet SX Mini-GBIC SFP Transceiver This module inserts into the mini-GBIC port on either the SR2024 or SR224G creating new Gigabit ports. This module is hot- swappable meaning you can connect it even when the switch is running. SPECIFICATIONS: STANDARDS - Compliant with Specifications of SFP Transceiver MSA Spec.CABLE TYPE- 850 nm (850nm TYP. 830-860nm) MMF (Multi-Mode Fiber) MMF: 62.5/125um fiber @ 160 MHz/km to 220m minimum distance 62.5/125um fiber @ 200 MHz/km to 275m minimum distance 50/125um fiber @ 400 MHz/km to 500m minimum distance 50/125um fiber @ 500 MHz/km to 550m minimum distancePOWER- 3.3 V (supplied by mini-GBIC port) Transmitter Spec : Power : -9.5 ~ -4 dBm Reciever Spec : Sensitivity: -20 ~ -17dBm Input Power : -20 ~ -17 dBm Stress Sensitivity: 50/125 um: -13.5dBm 62.5/125 um: -12.5dBmSIZE - 0.33" x 0.53" x 2.22" WT.- 0.63 oz. MANUFACTURER WARRANTY:;;1 YEAR
