  13. Continuous-Flex Liquid-Tight Plastic Conduit, 1 in Trade Size, 100 ft, 6 in Bend, PVC, Orange
No Product Image Available

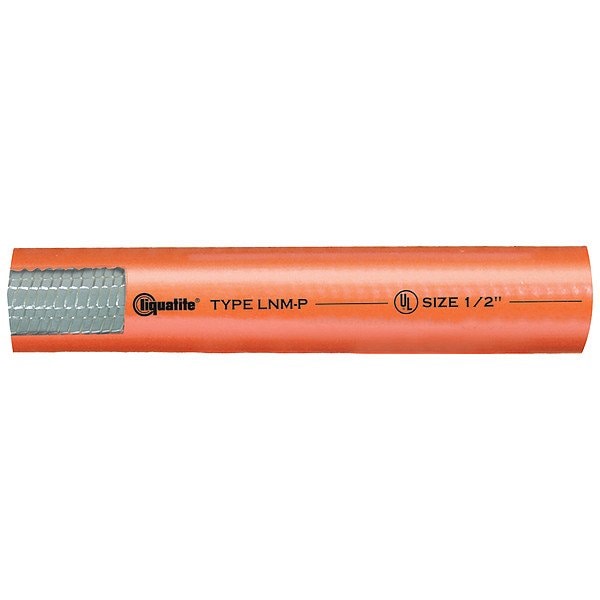

Continuous-Flex Liquid-Tight Plastic Conduit, 1 in Trade Size, 100 ft, 6 in Bend, PVC, Orange

  • Mfr # LNM-P 13

  • Zoro # G705670086

product price: $897.99
/ea
Free Shipping & Returns

Key Features

Nominal Length
100 ft
Bend Radius
6 in
Material
PVC
Jacket Material
PVC
Finish
Unfinished
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LNM-P 13
Zoro #
G705670086
UPC #
-
Country of Origin
United States

Dimensions

Trade Size
1 in
Nominal Length
100 ft
Bend Radius
6 in
Outside Diameter
1.44 in
Inside Diameter
1.03 in, 1.06 in

Details

Item
Continuous-Flex Liquid-Tight Plastic Conduit
Material
PVC
Jacket Material
PVC
Finish
Unfinished
Jacket Color
Orange
Min. Operating Temp.
-0.4 Degrees F
Max. Operating Temp.
221 Degrees F
Series
LNMP
Usable Temperature Range
-55 Degrees C to 105 Degrees C Dry/ 60 Degrees C Wet/ 70 Degrees C Oil
Approval Rating
ANSI, ARRA, NEC, cULus, RoHS, UL 1660 CSA 22.2 No. 227.2 Type A, WEEE
Special Features
Flame Retardant, Nylon Reinforcing Braid
Resistance Properties
Mild Acid Resistant, Oil Resistant, UV Resistant
Flexible Conduit Usable Temp. Range
-18 to 105°C (Dry), -18 to 60°C (Wet), -18 to 70°C (Oil)
Jacketed
Yes
Indoor/Outdoor Usage
Outdoor Only
Standards
ANSI/UL 1660 CSA 22.2 No. 227.2 Type A, ARRA Certified, Article 356 of the NEC (ANSI/NFPA-70), cULus Listed File No. E79308, RoHS Compliant, WEEE Compliant
Wet Location
Yes
Weight
42 lb
Voltage
1,000 V
Color
Orange
Flexibility
Continuous Flex

Description

Liquid Tight Conduit, Trade Size 1 in, Bend Radius 6 in, Color Orange, Approval Rating ANSI, ARRA, NEC, cULus, RoHS, UL 1660 CSA 22.2 No. 227.2 Type A, WEEE, PVC, Jacket Material PVC, Max. Operating Temp. 221 Degrees F, Min. Operating Temp. -0.4 Degrees F, Nominal Length 100 ft, Flexibility Continuous Flex, Indoor/Outdoor Usage Outdoor Only, Inside Diameter 1.03 in, 1.06 in, Jacket Color Orange, Jacketed Yes, Outside Diameter 1.44 in
