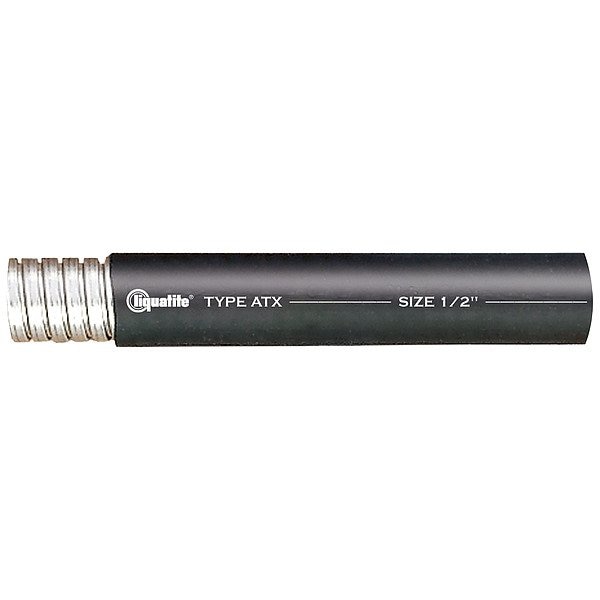

Liquid-Tight Flex Metal Conduit, 2-1/2 in Trade Size, 25 ft, 8 in Bend, Steel, Black

  • Mfr # ATX-17
  • Zoro # G405670089
product price:
$
829.99
/ea
Additional $95.00 delivery surcharge applies per item.
See details

Key Features

Nominal Length
25 ft
Bend Radius
8 in
Material
Steel
Jacket Material
Thermoplastic Rubber
Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATX-17
Zoro #
G405670089
UPC #
-
Country of Origin
United States

Dimensions

Trade Size
2-1/2 in
Nominal Length
25 ft
Bend Radius
8 in
Inside Diameter
2.48 in, 2.51 in
Outside Diameter
2.88 in

Details

Item
Liquid-Tight Flex Metal Conduit
Material
Steel
Jacket Material
Thermoplastic Rubber
Finish
Zinc Plated
Jacket Color
Black
Min. Operating Temp.
-76 Degrees F
Max. Operating Temp.
329 Degrees F
Series
ATX
Flexible Conduit Usable Temp. Range
-60 to 165°C
Special Features
Fully Interlocked Profile, Halogen-Free, Non-UL
Usable Temperature Range
-60 Degrees C to 150 Degrees C Intermitting to 165 Degrees C
Flammability Rating
UL 94 HB
Indoor/Outdoor Usage
Outdoor Only
Wet Location
Yes
Approval Rating
ARRA, CE, RoHS, UL, WEEE
Standards
ARRA Certified, CE Declaration: BS EN IEC 61386 Classification Code 445540650314, RoHS Compliant, UL 360, UL94, WEEE Compliant
Weight
47 lb
Resistance Properties
Corrosion Resistant, Mild Acid Resistant, Oil Resistant, UV Resistant
Jacketed
Yes
Color
Black
Flexibility
Flexible
Shell Material
Steel
Wire Color
Black

Description

Liquid Tight Conduit, Trade Size 2 1/2 in, Bend Radius 8 in, Color Black, Approval Rating ARRA, CE, RoHS, UL, WEEE, Steel, Jacket Material Thermoplastic Rubber, Max. Operating Temp. 329 Degrees F, Min. Operating Temp. -76 Degrees F, Nominal Length 25 ft, Finish Zinc Plated, Flammability Rating UL 94 HB, Flexibility Flexible, Indoor/Outdoor Usage Outdoor Only, Inside Diameter 2.48 in, 2.51 in, Jacket Color Black, Jacketed Yes
