Shop LIQUIDYNAMICS

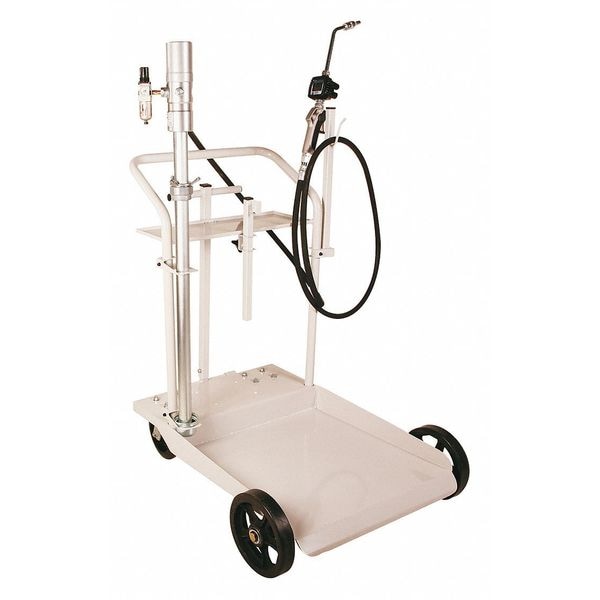

Air Drum Pump, 1" Inlet, 4 gpm Max. Flow

  • Mfr # 20094-S31
  • Zoro # G5924368
product price:
$
2,057.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
For Container Size
55 gal
Max. Flow Rate
4 gpm
Max. Viscosity
14,000 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
20094-S31
Zoro #
G5924368
UPC #
-
Country of Origin
Italy

Dimensions

For Container Size
55 gal
Manufacturers Warranty Length
3 yr.
Inlet Size
1"
Hose Length
144 in
Adapter Dia.
2"
Discharge Size FPT (In.)
1/2"
Air Inlet Size
1/4 in FNPT
Suction Tube Length
39 in
Overall Length
46 in
Spout Connection Size
1/2 in
Air Outlet Size
1 in
Hose Outside Dia.
3/4 in
Height Above Container
11 in
Spout Length
8 in
Bung Connection Dia.
2 in
Overall Height
38 in
Overall Diameter
2 in
Air Inlet Connection Size
1/4 in
Hose Outside Diameter
3/4 in
Hose Inside Diameter
1/2 in
Adapter Connection Diameter
2 in
Wire Rope Length
46 in
Length
46 in

Details

Item
Air Drum Pump
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Max. Flow Rate
4 gpm
Max. Viscosity
14,000 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Aluminum, Buna-N, Steel
Includes Suction Tube
Yes
For Use With
Oils
Discharge Tube Outlet ID
1/2 in
Hose Tube Material
Synthetic Rubber
Discharge Tube Outlet OD
1/2 in
Max. Flow GPM
4
Features
Low Noise
Suction Tube Material
Steel
Self-Priming
Yes
Adapter Material
Aluminum
Adapter Type
Bung
Delivers
1000 CPS
Piston Material
Buna-N
Seal Material
Buna-N
Includes
Non-Preset Control Handle
Max. Air Inlet (PSI)
125
Discharge Tubing Material
Rubber
Metered
Yes
For Container Type
Drum
Food Grade
No
Nozzle Operation
Manual
Includes Discharge Hose
Yes
Not Recommended Chemicals
Pump Connection Type
FNPT
Max. Air Pressure
120 psi
Pump Connection OD
1 5/8 in
Housing Finish
Powder Coated
Power Source
Air
Noise Level
90 dB
Suction Tube OD
1 5/8 in
Housing Material - Pumps
Aluminum
Max. Fluid Temp.
150 Degrees F
Pump Connection ID
1 in
Includes Spout
Yes
Duty Cycle
Continuous
Max. Head Pressure
360 psi
Variable Speed
No
Nozzle Material
Aluminum
Includes Nozzle
Yes
Min. Air Pressure
40 psi
Compatible Chemicals
Includes Bung Adapter
Yes
Spout Material
Steel
Max. Oil Flow
4 gpm
Spout Connection Type
FNPT
Suction Tube ID
1 in
Discharge Connection Type
FNPT
Runs Dry
No
Gear Lube
NT
Max. Head - Pumps
865 ft
Explosion Proof
No
Adapter Connection Type
FNPT
Pump Ratio
3:1
Standards
CE
Maximum Flow Rate
4 gpm
Adapter Connection Standard
FNPT
Chemical Compatibility
Engine Oil, Gear Lube, Hydraulic Oil
Cart Type Included
Cart
Maximum Viscosity
14,000 cps
Container Cover Type Included
No Cover Included
Housing Material
Aluminum/Steel
For SAE Viscosity Grade - Maximum
140
Meter Type Included
Digital
Air Inlet Connection Type
FNPT
Includes Follower Plate
No Follower Plate Included
Maximum Head Pressure
360 psi
Hazardous Location Class
Not Rated
Air Consumption
12 cfm
Maximum Outlet Pressure
360 psi
Maximum Fluid Temperature
150 Degrees F
Pump Technology
Piston
Maximum Air Pressure
120 psi
Maximum Head
865 ft
Static Protection
Not Groundable
Wetted Material
Aluminum/Buna-N/Steel
Maximum Oil Flow
4 gpm
Pressure Ratio
3:1
Minimum Air Pressure
120 psi
Hose Cover Material
Synthetic Rubber
Power Source - TS Only
Air
Power Source - old
Air

Description

Air Drum Pump, Max. Air Pressure 120 psi, Spout Connection Size 1/2 in, Suction Tube Material Steel, Self-Priming Yes, Overall Length 46 in, Explosion Proof No, Discharge Connection Type FNPT, Features Low Noise, Spout Length 8 in, Food Grade No, Thermal Protection Not Applicable, Air Outlet Size 1 in, Bung Connection Dia. 2 in, Air Consumption 12 cfm, Hose Length 144 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 90 dB, Max. Viscosity 14,000 cps, Adapter Connection Type FNPT
