Shop LIQUIDYNAMICS

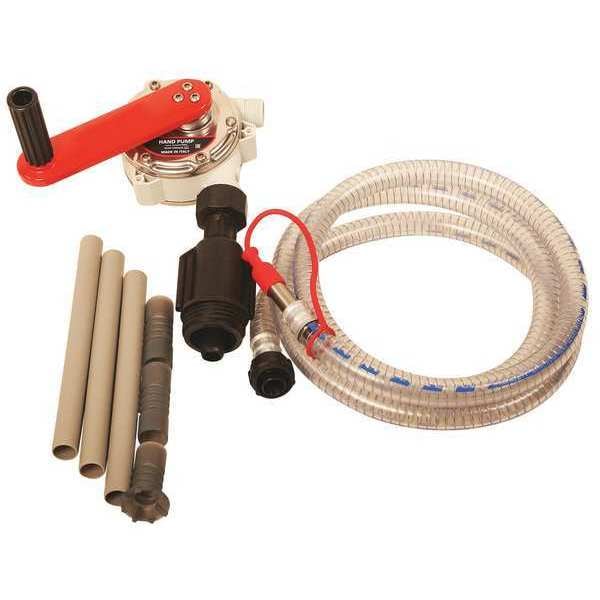

Hand Drum Pump, Rotary, PP Adptr, 3/4in Dia

  • Mfr # 10035

  • Zoro # G2440037

product price:  $415.99
/ea
Free Shipping & Returns

Key Features

Action Type
Rotary
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
For Container Size
55 gal, 275 gal, 330 gal
Max. Flow Rate
13 oz per stroke
Max. Viscosity
10 cps
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10035
Zoro #
G2440037
UPC #
-
Country of Origin
Italy

Dimensions

For Container Size
55 gal, 275 gal, 330 gal
Adapter Dia.
3/4"
Manufacturers Warranty Length
30 days
Suction Tube Length
37 in
Inlet Size
3/4"
Hose Length
8 ft
Hose Inside Dia.
3/4 in
Height Above Container
16 in
Spout Length
3 in
Hose Outside Dia.
1 in
Suction Tube Length - Maximum
36 in
Adapter Connection Diameter
2 1/2 in x 5 in
Hose Outside Diameter
1 in
Hose Inside Diameter
3/4 in

Details

Item
Hand Pump
Action Type
Rotary
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Max. Flow Rate
13 oz per stroke
Max. Viscosity
10 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
EPDM, Polyethylene
Includes Suction Tube
Yes
For Use With
Antifreeze, Diesel Exhaust Fluid, Water
Discharge Tube Outlet ID
3/4 in
Hose Tube Material
EPDM
Discharge Tube Outlet OD
1 in
Discharge Tubing Material
Polypropylene
Standards
ISO 22241-3
Seal Material
EPDM
Adapter Material
Polypropylene
Gasket Material
EPDM
Metered
No
Features
Check Valve, Dispenses 10 gal Per 100 Revolutions
Agency Compliance
ISO 22241-3
Includes
Spout Cap
Self-Priming
No
Max. Flow GPM
10
Motor RPM
Depends on Fluid Viscosity
Includes Discharge Hose
Yes
Duty Cycle
Continuous
For Container Type
Drum, Tote
Min. Operating Temp.
17 Degrees F
Discharge Connection Type
BSP
Pump Connection ID
1 in
Max. Oil Flow
13 oz per stroke
Not Recommended Chemicals
Food Grade
No
Spout Material
316 Stainless Steel
Includes Spout
Yes
Pump Connection OD
3/4 in
Compatible Chemicals
Power Source
Manual
Housing Material - Pumps
Polypropylene, Stainless Steel
Max. Fluid Temp.
150 Degrees F
Nozzle Operation
Manual
Includes Bung Adapter
No
Runs Dry
Yes
Max. Head - Pumps
3 ft
Max. Head Pressure
10 psi
Includes Nozzle
Yes
Gear Lube
NT
Max. Outlet Pressure
10 psi
Suction Tube OD
3/4 in
Suction Tube ID
3/4 in
Meter Type Included
No Meter Included
Pump Technology
Vane
Suction Tube Material
Polyethylene
Maximum Outlet Pressure
10 psi
Chemical Compatibility
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Maximum Head
3 ft
Maximum Fluid Temperature
150 Degrees F
Maximum Flow Rate
13 oz per stroke
Maximum Head Pressure
10 psi
Adapter Connection Standard
Buttress
Maximum Viscosity
10 cps
Hose Cover Material
EPDM
Nozzle Material
Polypropylene/Stainless Steel
Wetted Material
Polyethylene/Stainless Steel
Housing Material
Polypropylene/Stainless Steel
Maximum Oil Flow
13 oz per stroke
Mount Type
Bung
Static Protection
No Grounding Line Included
Minimum Operating Temperature
17 Degrees F
Container Cover Type Included
No Cover Included
Power Source - TS Only
Manual

Description

Hand Operated Drum Pump, Max. Outlet Pressure 10 psi, Pump Connection OD 3/4 in, Self-Priming No, Metered No, Hose Length 96 in, Includes Discharge Hose Yes, Features Check Valve, Dispenses 10 gal Per 100 Revolutions, Seal Material EPDM, For Use With Antifreeze, Diesel Exhaust Fluid, Water, Discharge Connection Type BSP, For Container Type Drum, Tote, Includes Bung Adapter No, Includes Nozzle Yes, Includes Spout Yes, Runs Dry Yes, Nozzle Operation Manual, Adapter Material Polypropylene
