Shop LIQUIDYNAMICS

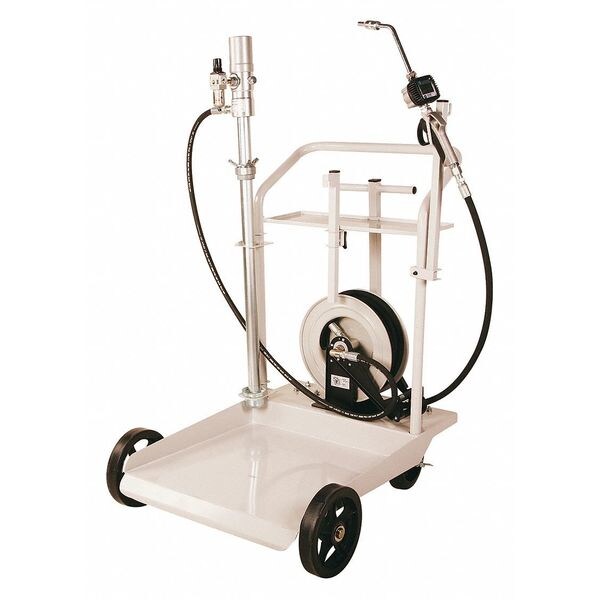

Air Drum Pump, 1" Inlet, 4 gpm Max. Flow

  • Mfr # 21094-S32
  • Zoro # G5923141
product price:
$
2,509.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
For Container Size
55 gal
Max. Flow Rate
4 gpm
Max. Viscosity
14,000 cps
Diesel Exhaust Fluid Compatible
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
21094-S32
Zoro #
G5923141
UPC #
-
Country of Origin
Italy

Dimensions

For Container Size
55 gal
Hose Length
300 in
Inlet Size
1"
Manufacturers Warranty Length
3 yr.
Discharge Size FPT (In.)
1/2"
Air Inlet Size
1/4 in FNPT
Suction Tube Length
39 in
Adapter Dia.
2"
Overall Length
46 1/2 in
Air Outlet Size
1 in
Hose Outside Dia.
3/4 in
Spout Connection Size
1/2 in
Spout Length
8 in
Height Above Container
11 1/4 in
Bung Connection Dia.
2 in
Overall Height
38 in
Overall Diameter
2 in
Hose Inside Diameter
1/2 in
Hose Outside Diameter
3/4 in
Adapter Connection Diameter
2 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
46 1/2 in
Length
46 1/2 in
Fits Chest Size
Low Noise

Details

Item
Air Drum Pump
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Max. Flow Rate
4 gpm
Max. Viscosity
14,000 cps
Diesel Exhaust Fluid Compatible
Yes
Wetted Materials
Aluminum, Buna-N, Steel
Includes Suction Tube
Yes
For Use With
Oils
Discharge Tube Outlet ID
1/2 in
Hose Tube Material
Synthetic Rubber
Discharge Tube Outlet OD
1/2 in
Self-Priming
Yes
Features
Low Noise
Includes
1/4 in Air Filter Regulator, Non-Preset Control Handle
Adapter Material
Aluminum
Seal Material
Buna-N
Discharge Tubing Material
Rubber
Delivers
1001 CPS
Suction Tube Material
Steel
Adapter Type
Bung
Max. Flow GPM
4
Max. Air Inlet (PSI)
125
Piston Material
Buna-N
Metered
Yes
Noise Level
90 dB
Housing Material - Pumps
Aluminum
Includes Spout
Yes
Housing Finish
Powder Coated
Pump Connection ID
1 in
Max. Fluid Temp.
150 Degrees F
Not Recommended Chemicals
Pump Connection OD
1 5/8 in
Runs Dry
No
Pump Connection Type
FNPT
Spout Material
Steel
Discharge Connection Type
FNPT
Suction Tube OD
1 5/8 in
Includes Discharge Hose
Yes
Nozzle Material
Aluminum
Duty Cycle
Continuous
Variable Speed
No
Compatible Chemicals
Includes Nozzle
Yes
Max. Air Pressure
120 psi
Min. Air Pressure
40 psi
Power Source
Air
Max. Head Pressure
600 psi
Suction Tube ID
1 in
Nozzle Operation
Manual
For Container Type
Drum
Food Grade
No
Spout Connection Type
FNPT
Max. Oil Flow
4 gpm
Includes Bung Adapter
Yes
Gear Lube
NT
Adapter Connection Type
FNPT
Explosion Proof
No
Max. Head - Pumps
1,442 ft
Pump Ratio
5:1
Maximum Fluid Temperature
150 Degrees F
Hazardous Location Class
Not Rated
Standards
CE
For SAE Viscosity Grade - Maximum
140
Pressure Ratio
5:1
Maximum Air Pressure
120 psi
Pump Technology
Piston
Maximum Viscosity
14,000 cps
Wetted Material
Aluminum/Buna-N/Steel
Chemical Compatibility
Engine Oil, Gear Lube, Hydraulic Oil
Maximum Head
1,442 ft
Housing Material
Aluminum/Steel
Maximum Head Pressure
600 psi
Air Inlet Connection Type
FNPT
Cart Type Included
Cart
Maximum Outlet Pressure
600 psi
Maximum Flow Rate
4 gpm
Includes Follower Plate
No Follower Plate Included
Container Cover Type Included
No Cover Included
Meter Type Included
Digital
Hose Cover Material
Synthetic Rubber
Air Consumption
12 cfm
Maximum Oil Flow
4 gpm
Static Protection
Not Groundable
Minimum Air Pressure
40 psi
Adapter Connection Standard
FNPT
Power Source - TS Only
Air
Power Source - old
Air

Description

Air Drum Pump, Max. Air Pressure 120 psi, Spout Connection Size 1/2 in, Suction Tube Material Steel, Self-Priming Yes, Overall Length 46 1/2 in, Explosion Proof No, Discharge Connection Type FNPT, Features Low Noise, Spout Length 8 in, Food Grade No, Thermal Protection Not Applicable, Air Outlet Size 1 in, Bung Connection Dia. 2 in, Air Consumption 12 cfm, Hose Length 300 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 90 dB, Max. Viscosity 14,000 cps
