Shop FILL-RITE

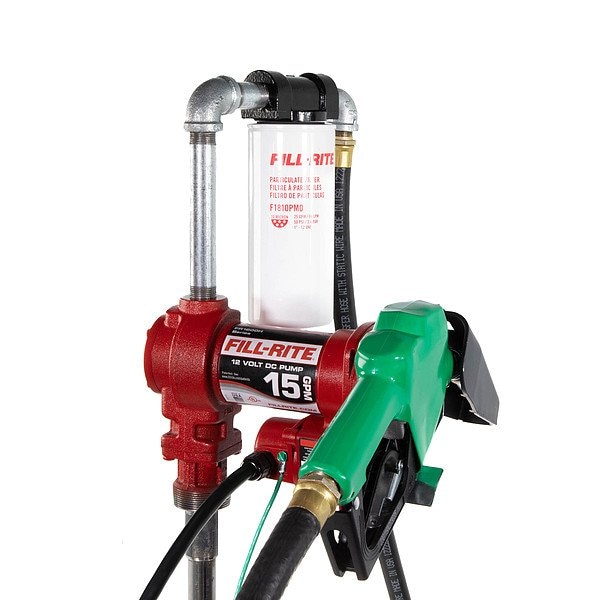

Electric Drum Pump, Cast Iron, 12 V DC

  • Mfr # FR1210HA1F

  • Zoro # G822785458

product price:  $640.99
/ea
Free Shipping & Returns

Key Features

Hose Cover Material
Neoprene
Suction Tube Material
Steel
Adapter Connection Standard
MNPT
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene, Mineral Spirits
Suction Tube Length
34 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FR1210HA1F
Zoro #
G822785458
UPC #
089404249901
Country of Origin
United States

Dimensions

Suction Tube Length
34 1/2 in
Hose Inside Diameter
3/4 in
Cord Length
18 ft
Overall Length
13 in
Spout Length
6 1/2 in
Spout Discharge Size
3/4 in
Adapter Connection Diameter
2 in
Hose Length
12 ft
For Container Size
35 gal, 55 gal, 60 gal, 275 gal, 500 gal
Hose Outside Diameter
1 1/8 in
Wire Rope Length
13 in

Details

Hose Cover Material
Neoprene
Suction Tube Material
Steel
Adapter Connection Standard
MNPT
Chemical Compatibility
Biodiesel, Diesel, E15, Gasoline, Kerosene, Mineral Spirits
Discharge Connection Type
FNPT
Maximum Head
37 ft
Features
Easy Installation, Equipment Safeguard, Fluid Compatibility, Long Life, Mobile Tanks, Reliable On-Off Switch, Reliable Performance
Minimum Fluid Temperature
-40 Degrees F
Maximum Oil Flow
15 gpm
Hazardous Location Class
Class I/Division 1
Includes Spout
Yes
Spout Material
Aluminum
Includes Follower Plate
No Follower Plate Included
Nozzle Operation
Automatic
Mount Type
Bung
Motor Horsepower
1/4 hp
Includes Bung Adapter
No
Nozzle Material
Aluminum
Rated Voltage
12 V DC
Duty Cycle
30 Minutes On/30 Minutes Off
Meter Type Included
No Meter Included
Discharge Tube Outlet ID
3/4 in
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Standards
cUL, UL Listed
Maximum Flow Rate
15 gpm
Container Cover Type Included
No Cover Included
Container Type Included
Drum
Nozzle Fluid Compatibility
Diesel
Includes Suction Tube
Yes
Full Load Current
20 A
Thermal Protection
Yes
Maximum Outlet Pressure
16 psi
Power Source - TS Only
Corded Electric
Motor Speed
2,600 RPM
Variable Speed
No
For Container Type
Tank
Pump Connection ID
3/4 in
Static Protection
Grounding Line Included
Housing Material
Cast Iron
Includes Nozzle
Yes
Includes Discharge Hose
Yes
Hose Tube Material
Nitrile
Maximum Fluid Temperature
150 Degrees F
Maximum Viscosity
4 cSt
Pump Technology
Vane
Item
Electric Drum Pump
Wetted Material
Buna-N/Ceramic/Cork/Fluorocarbon/Stainless Steel/Steel/Thermoset
Suction Tube OD
1 5/16 in
Pump Connection OD
1 1/8 in
Suction Tube ID
1 3/16 in
Includes
Filter Head Kit, Hose, Installation Components
Power Source
Corded Electric

Description

Electric Drum Pump, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 3/4 in, Suction Tube OD 1 5/16 in, Hose Length 12 ft, Suction Tube Length 34 1/2 in, Cord Length 18 ft, Includes Bung Adapter No, Nozzle Operation Automatic, Thermal Protection Yes, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Discharge Connection Type FNPT

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
