Shop LIQUIDYNAMICS

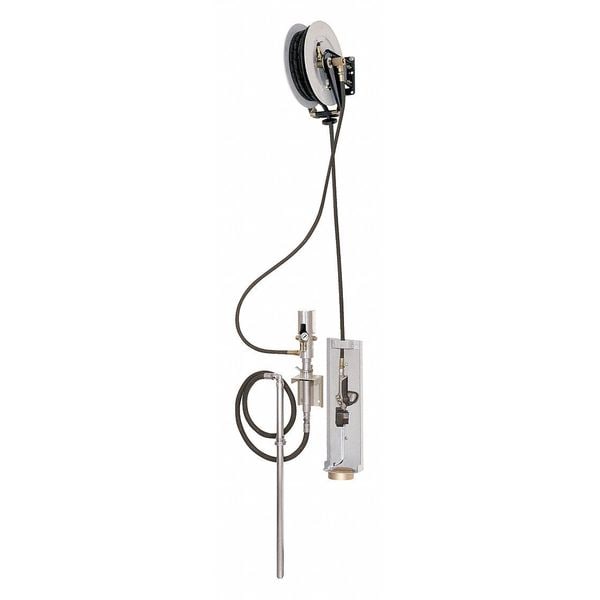

Air Drum Pump, 4 gpm, 600 psi, 5:1

  • Mfr # 21100-S8

  • Zoro # G4830557

product price:  $2,391.99
/ea
Free Shipping & Returns

Key Features

Type
Wall Mount
Air Motor Size (In.)
3 1/8 in
Pump Ratio
5:01
Container Size
16 gal
Consumption @ 100 PSI
12 cfm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
21100-S8
Zoro #
G4830557
UPC #
-
Country of Origin
Italy

Dimensions

Air Motor Size (In.)
3 1/8 in
Container Size
16 gal
Outlet Size
1/2 in NPT
Suction Tube Length
37 in
For Container Size
55 gal
Hose Length
360 in
Air Outlet Size
1/2 in
Hose Inside Diameter
1/2 in
Air Inlet Connection Size
1/4 in
Adapter Connection Diameter
2 in

Details

Item
Air Drum Pump
Type
Wall Mount
Pump Ratio
5:01
Consumption @ 100 PSI
12 cfm
Working Flow Max. (GPM)
4 gpm
Output
4 gpm
Interval Time Between Cycles (Min.)
0.08 min
Pump for Multiple Outlets
Yes
Capacity
55 gal
Fluid In/Out NPT (F)
1 in/ 1/2 in
Includes
Drip Tray, Filter Regulator, Reel
Fluid Inlet Thread (In.)
1 FNPT
Fluid Outlet Thread (In.)
1/2 FNPT
Outlet Pressure Max. (PSI)
600 psi
Max. Air Inlet PSI
120 psi
For Use With
Oil
Air Inlet (In.)
1/4 FNPT
Min. Air Inlet Pressure
50 psi
For Container Type
Drum
Power Source
Air
Air Consumption
12 cfm
Container Cover Type Included
No Cover Included
Discharge Connection Type
FNPT
Pump Technology
Piston
Noise Level
60 dB
Includes Discharge Hose
Yes
Includes Follower Plate
No Follower Plate Included
Maximum Outlet Pressure
600 psi
Maximum Head
1,442 ft
For SAE Viscosity Grade - Maximum
140
Variable Speed
No
Maximum Flow Rate
4 gpm
Wetted Material
Aluminum/Nitrile/Steel
Includes Spout
Yes
Nozzle Material
Aluminum
Maximum Air Pressure
120 psi
Suction Tube Material
Steel
Minimum Air Pressure
120 psi
Hazardous Location Class
Not Rated
Maximum Fluid Temperature
150 Degrees F
Pressure Ratio
5:1
Suction Tube OD
1 5/8 in
Includes Nozzle
Yes
Mounting Bracket Included
Wall Mounting Bracket
Standards
CE
Adapter Connection Standard
FNPT
Discharge Tube Outlet ID
1/2 in
Static Protection
Not Groundable
Duty Cycle
Continuous
Meter Type Included
Digital
Includes Suction Tube
Yes
Chemical Compatibility
Engine Oil, Gear Lube, Hydraulic Oil
Includes Bung Adapter
Yes
Maximum Viscosity
14,000 cps
Air Inlet Connection Type
FNPT
Housing Material
Aluminum/Steel
Discharge Tube Outlet OD
1/2 in
Maximum Head Pressure
600 psi
Housing Finish
Zinc Casted

Description

Air Drum Pump, Max. Air Pressure 120 psi, Suction Tube Material Steel, Discharge Connection Type FNPT, Thermal Protection Not Applicable, Air Outlet Size 1/2 in, Air Consumption 12 cfm, Hose Length 360 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 60 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter Yes, Includes Nozzle Yes, Includes Spout Yes
