Shop LIQUIDYNAMICS

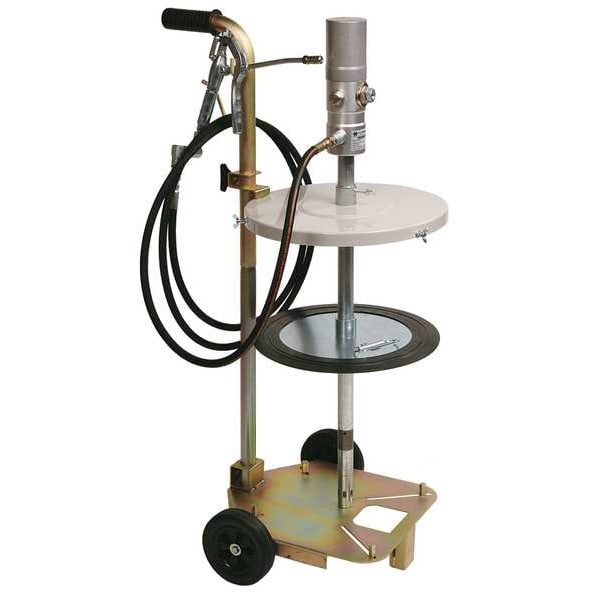

Air Drum Pump, 48 oz/min, 7,200psi, 60-1

  • Mfr # 13051T-S1

  • Zoro # G2912935

product price:  $1,283.99
/ea
Free Shipping & Returns

Key Features

Hose Length
144 in
Fits Container Size
16 gal, 120 lb
Includes
(4) Jaw Coupler, Grease Control Handle, Z-Swivel
Material
Machined Steel and Aluminum Components with Buna N Seals
Tube Dia.
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
13051T-S1
Zoro #
G2912935
UPC #
632322003669
Country of Origin
United States

Dimensions

Hose Length
144 in
Fits Container Size
16 gal, 120 lb
Tube Dia.
1 1/4 in
Air Motor Size
3 1/2 in
Drum Cover Dia.
15 1/4 in
For Container Size
16 gal
Air Inlet Size
1/4 in FNTP
Air Inlet Connection Size
1/4 in
Suction Tube Length
19 in
Hose Inside Diameter
1/4 in
Adapter Connection Diameter
1 1/4 in

Details

Item
Air Drum Pump
Includes
(4) Jaw Coupler, Grease Control Handle, Z-Swivel
Material
Machined Steel and Aluminum Components with Buna N Seals
Volume per Minute
48 oz
Application
Portable greasing of automobiles, trucks, and machinary via grease fittings and/or direct application
Grease Type
NLGI 1 and 2
Max. Pressure
7,200 psi
Features
Minimizes Residual Grease at the Bottom
Consumption @ 100 PSI
12 cfm
For Use With
Grease
Max. Outlet Pressure
7,200 psi
Housing Material - Pumps
Aluminum, Steel
Ratio
60:01:00
Air Consumption
12 cfm
Power Source
Air
For Container Type
Drum
Pump Technology
Piston
Duty Cycle
Continuous
Container Cover Type Included
Drum Cover
Static Protection
Not Groundable
Suction Tube OD
1 1/4 in
Meter Type Included
No Meter Included
Chemical Compatibility
Grease
Standards
CE
Includes Spout
Yes
Maximum Head Pressure
7,200 psi
Compatible NLGI Viscosity Grade
0
Maximum Flow Rate
48 oz/min
Cart Type Included
Dolly
Nozzle Material
Steel
Maximum Fluid Temperature
150 Degrees F
Includes Nozzle
Yes
Discharge Tube Outlet OD
1/4 in
Minimum Air Pressure
120 psi
Adapter Connection Standard
Smooth Bore
Nozzle Operation
Manual
Suction Tube Material
Steel
Maximum Outlet Pressure
7,200 psi
Wetted Material
Aluminum/Nitrile/Steel
Includes Follower Plate
Follower Plate Included
Housing Material
Aluminum/Steel
Discharge Connection Type
FNPT
Pressure Ratio
60:1
Discharge Tube Outlet ID
1/4 in
Hazardous Location Class
Not Rated
Variable Speed
No
Maximum Air Pressure
120 psi
Hose Tube Material
Synthetic Rubber
Noise Level
90 dB
Includes Discharge Hose
Yes
Air Inlet Connection Type
FNPT
Includes Suction Tube
Yes
Includes Bung Adapter
No
Housing Finish
Powder Coated

Description

Air Drum Pump, Suction Tube Material Steel, Discharge Connection Type FNPT, Features Minimizes Residual Grease at the Bottom, Thermal Protection Not Applicable, Air Consumption 12 cfm, Hose Length 144 in, Variable Speed No, Includes Discharge Hose Yes, Noise Level 90 dB, Duty Cycle Continuous, Includes Suction Tube Yes, Includes Bung Adapter No, Includes Nozzle Yes, Includes Spout Yes
