  9. DEF Transfer Pump, 6 ft. Cord L., 115VAC

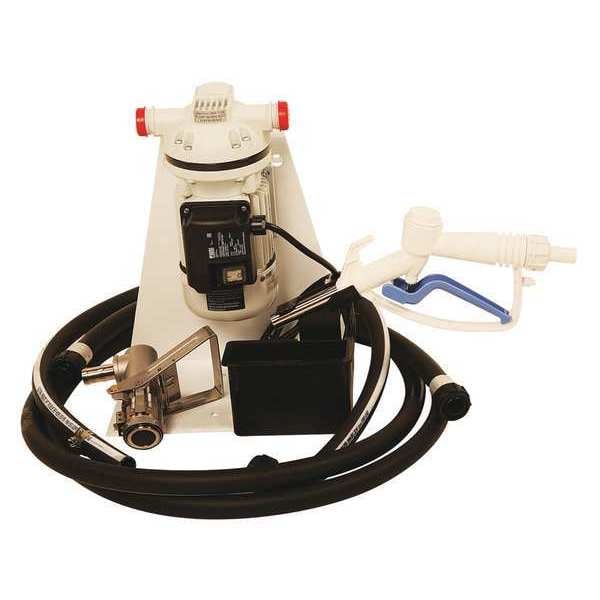

Liquidynamics DEF Transfer Pump, 6 ft. Cord L., 115VAC DS15H12XMPXXRSV - main

DEF Transfer Pump, 6 ft. Cord L., 115VAC

  • Mfr # DS15H12XMPXXRSV

  • Zoro # G4573296

product price: $1,155.99
/ea
Free Shipping & Returns

Key Features

For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Includes
Coupler, Drip Cup, Hose, Nozzle, Nozzle Hanger, Side Mount Hanger
Max. Viscosity
10 cps
Motor Type
2 Pole
Power Source
Electric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS15H12XMPXXRSV
Zoro #
G4573296
UPC #
-
Country of Origin
Italy

Dimensions

Outlet Size
3/4" Barb
Hose Dia.
3/4"
Overall Length
48 in
Cord Length
54 in
Overall Height
16"
Hose Length
12 ft
Overall Width
12"
Manufacturers Warranty Length
12 yr. Pump, 1 yr. Dispensing System
Inlet Size
3/4"
Hose Inside Dia.
3/4 in
Suction Tube Length
48 in
Hose Outside Dia.
1 in
Height Above Container
4 in
For Container Size
55 gal, 275 gal, 330 gal
Spout Length
3 in
Spout Discharge Size
3/4 in

Details

For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Item
Electric Operated Drum Pump
Includes
Coupler, Drip Cup, Hose, Nozzle, Nozzle Hanger, Side Mount Hanger
Max. Viscosity
10 cps
Motor Type
2 Pole
Power Source
Electric
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Voltage
115VAC
Motor Enclosure
IP55
Metered
Yes
Motor RPM
1,750 RPM
Max. Pressure
33 psi
Amps
3.5
Max. Temp.
104 Degrees F
Duty Cycle
Intermittent
Features
Dispenses 8 gpm
Suction Lift
6 ft.
Pump Design
Nutating Diaphragm
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
pH Range
5.0 to 10
Nozzle Material
Poly, Stainless Steel
Max. Specific Gravity
1.09
Nozzle Type
Manual
HP
1/10
Hose Material
Peroxide Cured EPDM
Max. Head
48 ft.
Phase
1
Seal Material
EPDM
Gasket Material
EPDM
Shaft Material
Stainless Steel
Bearing Type
Sealed Ball
Agency Compliance
ISO
Hz
60
Max. GPM for Water
8
Self-Priming
Yes
Pump Body Material
Polypropylene
GPM
8
Pressure Range
23 psi
Inlet
3/4"
Max. Liquid Temp.
104 Degrees F
Seal Type
Mechanical
Adapter Type
RSV
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
Duty
Intermittent
Adapter Material
316 Stainless Steel
Housing Material
Polypropylene
Bypass Valve
Internal
Suction Tube Material
EPDM
Full Load Amps
4.5 A
Housing Material - Pumps
Polypropylene
Discharge Tube Outlet OD
1 in
Max. Fluid Temp.
104 Degrees F
Hose Tube Material
EPDM
Max. Oil Flow
8 gpm
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Suction Tube ID
3/4 in
Frequency (Hz)
60 Hz
Noise Level
70 db
Max. Head Pressure
23 psi
Includes Suction Tube
Yes
Nozzle Operation
Manual
Includes Spout
Yes
Food Grade
No
Number of Phases
1
Diesel Exhaust Fluid Compatible
Yes
For Container Type
Drum, Tote
Pump Connection Type
Hose Barb
Spout Material
316 Stainless Steel
Pump Connection OD
1 in
Runs Dry
Yes
Includes Bung Adapter
No
Spout Connection Type
Integral to Nozzle
Hose Cover Material
Thermal Plastic
Min. Fluid Temp.
17 Degrees F
Includes Discharge Hose
Yes
Compatible Chemicals
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze (Coolant), Citric Acid 50%, DEF, Deionized Water, Ethyl (Ethanol), Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropyl (Isopropanol), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfite, Sodium Hypochlorite/Bleach (to 20%)
Max. Head - Pumps
48 ft
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Cyclohexane, Diesel Fuel, E85, Ethyl Acetate, Fertilizers, Formic Acid, Fungicides, Gasoline, Heptane, Herbicides, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Sodium Bisulfate, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
Suction Tube OD
1 in
Includes Nozzle
Yes
Discharge Connection Type
Hose Barb
Discharge Tube Outlet ID
3/4 in
Max. Flow Rate
8 gpm
Motor HP
1/10 hp
Variable Speed
No
Gear Lube
NT
Explosion Proof
No
Max. Outlet Pressure
23 psi
Rated Voltage
115V AC
Grease
NT

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 23 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 23 psi, For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid, Rated Voltage 115 V AC, Plug Type NEMA 5-15-P, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 12 ft, Suction Tube Length 48 in, Cord Length 54 in, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Manual, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
