Voltage 115VAC
Application Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP 1/10
Housing Material Polypropylene
GPM 8
Seal Material EPDM
Pump Design Nutating Diaphragm
Self-Priming Yes
Seal Type Mechanical
Max. Viscosity 10 cps

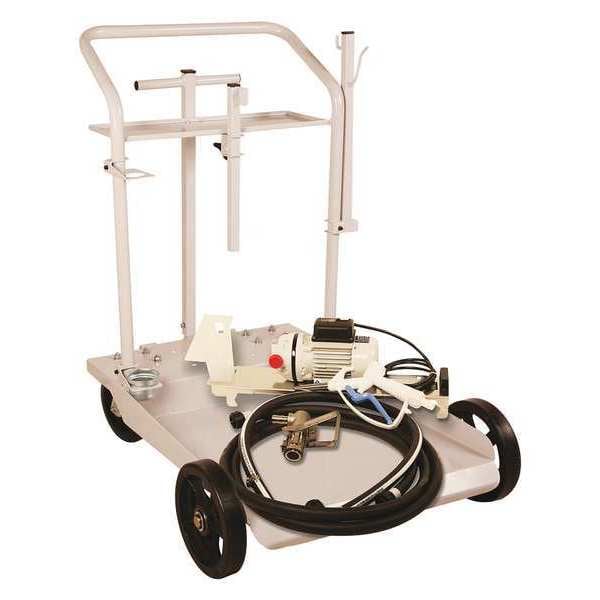

Item Electric Drum Pump
Features Dispenses 9 gpm
Duty Cycle Intermittent
Hz 60
Transfer Pump Application Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Pressure Range 23 psi
Hose Material Peroxide Cured EPDM
Pump Body Material Polypropylene
Motor Enclosure IP55
Nozzle Material Polypropylene/Stainless Steel
Bypass Valve Internal
Suction Lift 6 ft.
Shaft Material Stainless Steel
Max. Specific Gravity 1.09
Adapter Material 316 Stainless Steel
Bearing Type Sealed Ball
pH Range 5.0 to 10
Max. Liquid Temp. 104 Degrees F
Agency Compliance ISO
Metered Yes
Includes Coupler, Drip Cup, Drum Cart, Hose, Nozzle Hanger
Max. Pressure 41 psi
Amps 3.5
Inlet 3/4"
Max. Head 48 ft.
Phase Single
Adapter Type RSV
Nozzle Type Manual
Duty Intermittent
Gasket Material EPDM
Wetted Materials EPDM, Polypropylene, Stainless Steel
Max. Temp. 104 Degrees F
For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Max. GPM for Water 8
Motor Type 2 Pole
Suction Tube ID 3/4 in
Max. Head Pressure 23 psi
Includes Nozzle Yes
Noise Level 70 dB
Nozzle Operation Manual
For Media Type Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Diesel Exhaust Fluid Compatible Yes
For Container Type Drum, Tote
Includes Spout Yes Not Recommended Chemicals
See full list of Not Recommended Chemicals Acetic Acid 80%,Acetone,Ammonia Liquid,Anhydrous Ammonia,Automatic Transmission Fluid,Biodiesel,Brake Fluid,Calcium Chloride,Chromic Acid 10%,Chromic Acid 30%,Chromic Acid 5%,Chromic Acid 50%,Concentrated Nitric Acid,Cyclohexane,Diesel Fuel,E85,Ethyl Acetate,Fertilizers,Formic Acid,Fungicides,Gasoline,Glacial Acetic Acid,Heptane,Herbicides,Hexane,Petroleum Oil,Synthetic Oil,Hydrazine,Hydrochloric Acid 100%,Hydrochloric Acid 20%,Hydrochloric Acid 37%,Hydrofluoric Acid 100%,Hydrofluoric Acid 20%,Hydrofluoric Acid 75%,Kerosene,Lacquer Thinners,Lithium Grease,Methanol,Methyl Chloride,Methyl Ethyl Ketone,Motor Oil,Naphtha,Nitric Acid 10% Solution,Nitric Acid 20% Solution,Nitric Acid 50% Solution,Paint,Paint Thinner,Pesticides,Phosphoric Acid 40% Solution,Sodium Bisulfate,Sodium Hydroxide 20%,Sodium Hydroxide 50%,Sodium Hydroxide 80%,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 75% to 100%,Sulfuric Acid up to 10%,Toluene,Trichlorethylene 50%,Turpentine,Windshield Washer Fluid,Xylene
Spout Connection Type Integral to Nozzle
Spout Material 316 Stainless Steel
Max. Flow Rate 8 gpm
Max. Fluid Temp. 104 Degrees F
Discharge Tube Outlet OD 1 in
Motor HP 1/10 hp
Pump Connection Type Hose Barb
Suction Tube OD 1 in
Hose Tube Material EPDM
Suction Tube Material EPDM
Pump Connection OD 1 in
Min. Fluid Temp. 17 Degrees F
Number of Phases 1
Max. Head - Pumps 48 ft
Max. Oil Flow 8 gpm
Includes Discharge Hose Yes
Power Source Corded Electric
Discharge Tube Outlet ID 3/4 in
Frequency (Hz) 60 Hz
Includes Suction Tube Yes
Food Grade No
Includes Bung Adapter No Compatible Chemicals
See full list of Compatible Chemicals Acetic Acid 20%,Ammonium Hydroxide,Antifreeze (Coolant),Citric Acid 50%,DEF,Deionized Water,Ethyl (Ethanol),Ethylene Glycol,Formaldehyde,Formaldehyde 40%,Fresh Water,Glycerin,Isopropyl (Isopropanol),Potassium Hydroxide (50%),Salt Water,Sodium Bicarbonate (10%),Sodium Bisulfite,Sodium Hypochlorite/Bleach (to 20%)
Hose Cover Material Thermal Plastic
Discharge Connection Type Hose Barb
Runs Dry Yes
Motor RPM 1,750 RPM
Full Load Amps 4.5 A
Variable Speed No
Housing Material - Pumps Polypropylene
Gear Lube NT
Rated Voltage 115 V AC
Grease NT
Explosion Proof No
Max. Outlet Pressure 23 psi
Maximum Oil Flow 8 gpm
Maximum Flow Rate 8 gpm
Full Load Current 4.5 A
Minimum Fluid Temperature 17 Degrees F
Housing Finish Powder Coated
Nozzle Fluid Compatibility DEF
Standards ISO
Wetted Material EPDM/Polypropylene/Stainless Steel
Static Protection Not Groundable
Frequency 60 Hz
Plug Type NEMA 5-15-P
Maximum Viscosity 10 cps
Maximum Head Pressure 23 psi
Hazardous Location Class Not Rated
Motor Horsepower 1/10 hp
Maximum Outlet Pressure 23 psi
Chemical Compatibility Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Pump Connection ID 3/4 in
Maximum Fluid Temperature 104 Degrees F
Maximum Head 48 ft
Adapter Connection Standard Buttress
Motor Enclosure Design Totally Enclosed Fan Cooled
Pump Technology Diaphragm
Motor Speed 1,750 RPM
Mount Type Foot
Meter Type Included No Meter Included
Power Source - TS Only Corded Electric
