Shop LIQUIDYNAMICS

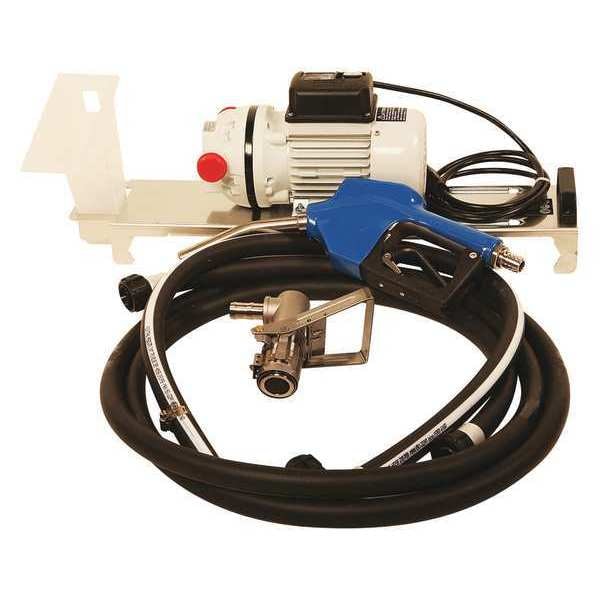

Electric Operated Drum Pump, 115VAC, 8 Max. Flow Rate , 1/10 HP, Polypropylene, 3/4" Inlet

  • Mfr # DT15H20XAPXXRSV

  • Zoro # G4573208

product price:  $1,305.99
/ea
Free Shipping & Returns

Key Features

Voltage
115VAC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
DT15H20XAPXXRSV
Zoro #
G4573208
UPC #
-
Country of Origin
Italy

Dimensions

Inlet Size
3/4"
Overall Width
16"
Outlet Size
3/4" Barb
Hose Length
20 ft
Overall Length
40 in
Cord Length
54 in
Manufacturers Warranty Length
21 yr. Pump, 1 yr. Dispensing System
Overall Height
12"
Hose Dia.
3/4"
Suction Tube Length
48 in
Spout Length
6 in
Hose Inside Dia.
3/4 in
For Container Size
55 gal, 275 gal, 330 gal
Height Above Container
4 in
Hose Outside Dia.
1 in
Spout Discharge Size
3/4 in
Adapter Connection Diameter
2 in
Hose Inside Diameter
3/4 in
Hose Outside Diameter
1 in

Details

Voltage
115VAC
Application
Diesel Exhaust Fluid, Anti-Freeze, Clean Water
HP
1/10
Housing Material
Polypropylene
GPM
8
Seal Material
EPDM
Pump Design
Nutating Diaphragm
Self-Priming
Yes
Seal Type
Mechanical
Max. Viscosity
10 cps
Item
Electric Drum Pump
Bypass Valve
Internal
Shaft Material
Stainless Steel
Suction Lift
6 ft.
Transfer Pump Application
Agriculture, Automotive, Construction, Farming, Industrial, Marine, Trucking
Duty
Intermittent
Hose Material
Peroxide Cured EPDM
Max. Pressure
42 psi
Inlet
3/4"
Motor Type
2 Pole
For Use With
Anti-Freeze, Clean Water, Diesel Exhaust Fluid
Max. GPM for Water
8
Bearing Type
Sealed Ball
Gasket Material
EPDM
Hz
60
Adapter Material
316 Stainless Steel
Metered
Yes
pH Range
5.0 to 10
Wetted Materials
EPDM, Polypropylene, Stainless Steel
Pump Body Material
Polypropylene
Max. Liquid Temp.
104 Degrees F
Adapter Type
RSV
Phase
Single
Amps
3.5
Features
Dispenses 9 gpm
Max. Temp.
104 Degrees F
Max. Head
48 ft.
Includes
Coupler, Drip Cup, Hose, Nozzle Hanger, Spring Loaded Drum Mounting Bracket
Agency Compliance
ISO
Nozzle Material
Stainless Steel
Nozzle Type
Automatic
Duty Cycle
Intermittent
Pressure Range
23 psi
Max. Specific Gravity
1.09
Motor Enclosure
IP55
Includes Suction Tube
Yes
Compatible Chemicals
Suction Tube OD
1 in
Max. Fluid Temp.
104 Degrees F
Spout Connection Type
Integral to Nozzle
Nozzle Operation
Automatic
Spout Material
316 Stainless Steel
Not Recommended Chemicals
Suction Tube Material
EPDM
Runs Dry
Yes
Pump Connection OD
1 in
For Media Type
Acetic Acid, Ammonium Hydroxide, Antifreeze, Bleach, Citric Acid, DEF, Ethanol, Ethylene Glycol, Formaldehyde, Glycerin, Isopropanol, Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfite, Water
Housing Material - Pumps
Polypropylene
Motor HP
1/10 hp
Hose Tube Material
EPDM
Hose Cover Material
Thermal Plastic
Min. Fluid Temp.
17 Degrees F
Discharge Tube Outlet ID
3/4 in
Suction Tube ID
3/4 in
Includes Nozzle
Yes
Number of Phases
1
Full Load Amps
4.5 A
For Container Type
Drum, Tote
Frequency (Hz)
60 Hz
Discharge Connection Type
Hose Barb
Variable Speed
No
Max. Flow Rate
8 gpm
Max. Head - Pumps
48 ft
Max. Head Pressure
23 psi
Includes Spout
Yes
Noise Level
70 dB
Food Grade
No
Power Source
Corded Electric
Includes Discharge Hose
Yes
Pump Connection Type
Hose Barb
Max. Oil Flow
8 gpm
Diesel Exhaust Fluid Compatible
Yes
Includes Bung Adapter
No
Discharge Tube Outlet OD
1 in
Motor RPM
1,750 RPM
Grease
NT
Max. Outlet Pressure
23 psi
Explosion Proof
No
Rated Voltage
115 V AC
Gear Lube
NT
Minimum Fluid Temperature
17 Degrees F
Plug Type
NEMA 5-15-P
Full Load Current
4.5 A
Maximum Head Pressure
23 psi
Motor Horsepower
1/10 hp
Standards
ISO
Housing Finish
Powder Coated
Nozzle Fluid Compatibility
DEF
Wetted Material
EPDM/Polypropylene/Stainless Steel
Maximum Flow Rate
8 gpm
Frequency
60 Hz
Chemical Compatibility
Acetic Acid 20%, Ammonium Hydroxide, Antifreeze Coolant, Bleach, Citric Acid 50%, DEF, Deionized Water, Ethanol, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fresh Water, Glycerin, Isopropanol, Potassium Hydroxide 50%, Salt Water, Sodium Bicarbonate 10%, Sodium Bisulfite
Motor Enclosure Design
Totally Enclosed Fan Cooled
Adapter Connection Standard
Buttress
Maximum Head
48 ft
Maximum Fluid Temperature
104 Degrees F
Maximum Oil Flow
8 gpm
Maximum Outlet Pressure
23 psi
Static Protection
Not Groundable
Hazardous Location Class
Not Rated
Meter Type Included
No Meter Included
Motor Speed
1,750 RPM
Maximum Viscosity
10 cps
Mount Type
Foot
Pump Technology
Diaphragm
Pump Connection ID
3/4 in

Description

Electric Drum Pump, Hose Inside Dia. 3/4 in, Max. Head Pressure 23 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 23 psi, For Use With Anti-Freeze, Clean Water, Diesel Exhaust Fluid, Rated Voltage 115 V AC, Plug Type NEMA 5-15-P, Pump Connection ID 3/4 in, Suction Tube OD 1 in, Hose Length 20 ft, Suction Tube Length 48 in, Cord Length 54 in, Includes Bung Adapter No, Runs Dry Yes, Nozzle Operation Automatic, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
