  9. ACUITY LITHONIA 3 Incandescent Lamps, Emergency Light
Shop All Emergency Lights
Lithonia Lighting

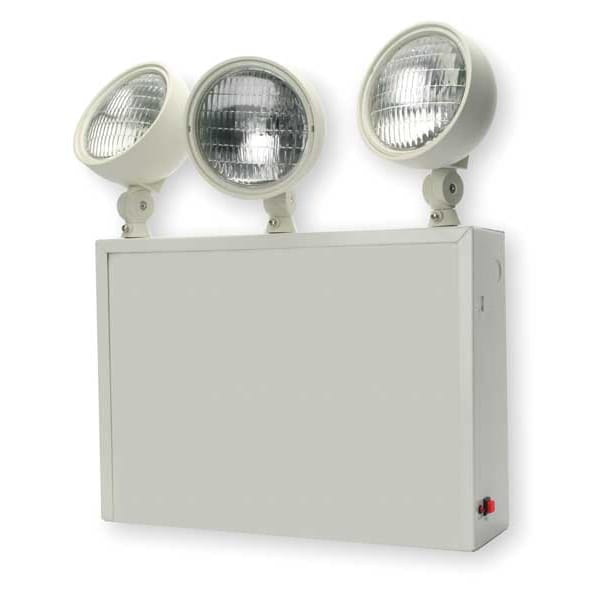

ACUITY LITHONIA 3 Incandescent Lamps, Emergency Light

product price: $135.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage - Emergency Lighting and Exit Signs 120/277
  • Lamp Watts - Emergency Lighting and Exit Signs 12.0 W
  • Input Voltage 120/277V AC
  • Lighting Technology Incandescent
  • Output Voltage 12 V DC
See all product information

Product Information

Dimensions

Length 15 in
Width 4 1/2 in
Height 15 1/2 in
Overall Length 15 in
Overall Height 15 1/2 in
Manufacturers Warranty Length 3 yr
Overall Width 4 1/2 in

Details

Item - Emergency Lighting and Exit Signs Emergency Light
Item Emergency Light
Voltage - Emergency Lighting and Exit Signs 120/277
Lamp Watts - Emergency Lighting and Exit Signs 12.0 W
Input Voltage 120/277V AC
Lighting Technology Incandescent
Output Voltage 12 V DC
Housing Material - Emergency Lighting and Exit Signs Steel
Mounting Wall
Housing Color - Emergency Lighting and Exit Signs White
Housing Material Steel
Battery Chemistry Lead Calcium
Number of Lamp Heads 3
Emergency Illumination Time - Emergency Lighting and Exit Signs 90 min
Watts @ 90 Minutes 50 W
Optional Guard 4PG64
Optional Remote Head 4PG72, 3EU35
Includes Ready/Charge Lamp
Head Lamps Adjustable Yes
Standards New York City Compliant, UL 924
Lamp Type Incandescent
Bulb Technology Incandescent
Lamp Watts 12
Housing Color White
Battery Type Lead Calcium
Emergency Illumination Time 90 min
Warranty 3 yr
Features 12 W Lamp, 20-GA Steel Housing
Maximum Operating Temperature 90 Degrees F
Battery Voltage 12 V DC
Remote Capacity 24 W
Series ELTNY
Minimum Operating Temperature 60 Degrees F
Housing Finish White
Current 0.07 A
Number of Bulbs 3
Emergency Battery Backup Yes
Self Diagnostics No
NEMA Rating Not Rated
Bulb Included Yes
Lamp Head Shape Round
Remote Capable Yes
Diagnostic Testing Function Test Button
Environmental Rating Indoor
Lamp Wattage 12 W
IP Rating Not Rated
Emergency Wattage 36 W
Compliance Type New York City Approved
Adjustable Lamp Heads Yes

Description

Emergency Light, Voltage - Emergency Lighting and Exit Signs 120/277, Lamp Watts - Emergency Lighting and Exit Signs 12.0 W, Lighting Technology Incandescent, Housing Material - Emergency Lighting and Exit Signs Steel, Housing Color - Emergency Lighting and Exit Signs White, Battery Chemistry Lead Calcium, Number of Lamp Heads 3, Emergency Illumination Time - Emergency Lighting and Exit Signs 90 min, Watts @ 90 Minutes 50 W, Output Voltage 12 V DC, Width 4 1/2 in, Length 15 in, Height 15 1/2 in

Restrictions

  • Hazardous material
