  5. Area and Roadway Fixture, LED, 22022 lm

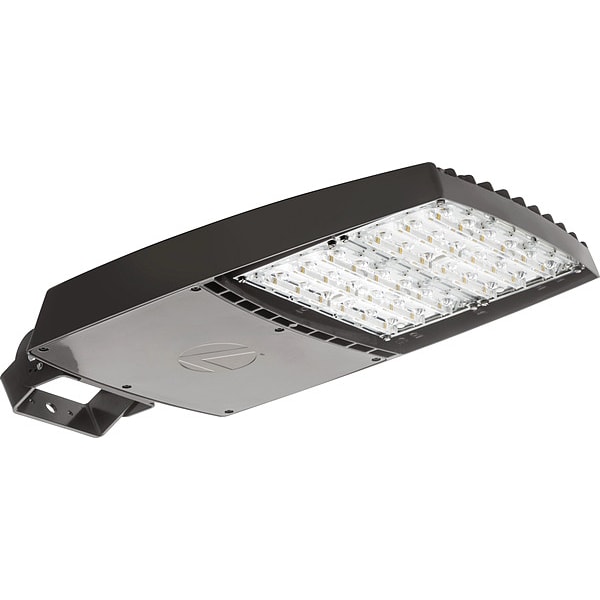

Lithonia Lighting Area and Roadway Fixture, LED, 22022 lm RSX2 LED P3 40K R4 MVOLT SPA DDBXD - main

Area and Roadway Fixture, LED, 22022 lm

  • Mfr # RSX2 LED P3 40K R4 MVOLT SPA DDBXD

  • Zoro # G2147679

product price:  $829.99
/ea
Free Shipping & Returns

Key Features

Color Temp.
4000K
Fixture Voltage
120 to 277V
LED Replacement For
400 to 1000W MH
Housing Finish
Dark Bronze
Watts
147W
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RSX2 LED P3 40K R4 MVOLT SPA DDBXD
Zoro #
G2147679
UPC #
00193047450089
Country of Origin
Mexico

Dimensions

Fixture Length
29 1/4 in
Fixture Height
3 in
Fixture Width
13 1/2 in
Height
3 in
Width
13 1/2 in
Manufacturers Warranty Length
5 yr
Overall Width
13 3/8 in
Overall Length
29 3/8 in
Overall Height
3 in

Details

Color Temp.
4000K
Fixture Voltage
120 to 277V
LED Replacement For
400 to 1000W MH
Housing Finish
Dark Bronze
Watts
147W
Mounting
Square Pole
Lumens
22,022 lm
Fixture Rated Life
100,000 hr
Operating Temp. Range
0 Degrees to 50 Degrees C
Light Distribution
Type IV Wide
Fixture Temp. Range
-40 Degrees to 40 Degrees C
Mounting - Area and Roadway Fixture
Square Pole
Fixture Lens Material
No Lens
Fixture Housing Material
Die-Cast Aluminum
Max. Fixture Wattage
147.0
Color Rendering Index
70
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Light Distribution - Roadway and Area Fixtures
Type IV Wide
Standards
CSA Certified, DLC Premium, Wet Location
Lighting Certification
DesignLights Consortium (DLC) Premium
Description/Special Features
Durable, Energy Efficient, Optimal Thermal Management
Light Distribution Shape
Type IV Wide
Lumens Per Watt
150.0
Solar Powered
No
Mounting Locations Supported
Square Pole
Warranty
5 Years Limited
Item
Street & Parking Lot Lights
Bulb Technology
LED
Green Certification or Other Recognition
DesignLights Consortium (DLC)(R) Premium Listed
Color Temperature
4000K
Item - Area and Roadway Fixtures
Area and Roadway Fixtures
Fixture Housing Color
Bronze
Includes
Mounting Hardware
Lighting Technology
LED
Voltage
120 to 277V AC
Housing Color
Bronze
Rated Life
100,000 hr
Housing Material
Aluminum
Mount Type
Pole
Light Technology
LED
Fixture Wattage
147 W
Lumens per Watt
150 lm/W
Max. Operating Temp.
40 Degrees C
Min. Operating Temp.
-40 Degrees C
Sensor Type
Not Sensor Compatible
Minimum Run Time
100,000 hr
Color Selectable
Not Selectable
Lumen Selectable
Not Selectable
Operating Temperature - Maximum
40 Degrees C
Operating Temperature - Minimum
-40 Degrees C
Light Head Style
Standard Head
Light Distribution Type - IESNA
Type IV
High Pressure Sodium Wattage Equivalency
1,000 W
Light Output
22,022 lm
Metal Halide Wattage Equivalency
1,000 W

Description

Street & Parking Lot Lights, Mount Type Pole, Lumens 22,022 lm, Fixture Wattage 147 W, Light Distribution Shape Type IV Wide, LED Replacement For 400 to 1000W MH, Light Technology LED, Color Temperature 4000K, Color Rendering Index 70, Voltage 120 to 277V AC, Height 3 in, Width 13 1/2 in, Rated Life 100,000 hr, Fixture Housing Color Bronze, Fixture Housing Material Die-Cast Aluminum, Fixture Lens Material No Lens, Lumens per Watt 150 lm/W, Max. Operating Temp. 40 Degrees C
