This item is Discontinued.

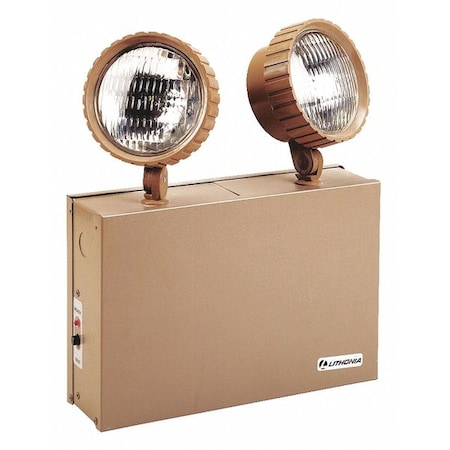

Lithonia Lighting Emergency Light, 120/277V, 12.0W, Halogen ELT24 H1206

Emergency Light, 120/277V, 12.0W, Halogen (Discontinued)

  • Mfr # ELT24 H1206
  • Zoro # G8532218
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ELT24 H1206
Zoro #
G8532218
UPC #
745971649666
Country of Origin
Mexico

Dimensions

Length
11 5/8 in
Width
4 3/4 in
Height
14 in
Overall Height
14 in
Manufacturers Warranty Length
3 yr
Overall Width
4 3/4 in
Overall Length
11 3/4 in

Details

Item - Emergency Lighting and Exit Signs
Emergency Light
Item
Emergency Light
Voltage - Emergency Lighting and Exit Signs
120/277
Lamp Watts - Emergency Lighting and Exit Signs
12.0 W
Input Voltage
120/277V AC
Lighting Technology
Halogen
Output Voltage
6 V DC
Mounting
Ceiling/Wall
Housing Material - Emergency Lighting and Exit Signs
Steel
Housing Color - Emergency Lighting and Exit Signs
Beige
Housing Material
Steel
Battery Chemistry
Sealed Lead Acid
Number of Lamp Heads
2
Emergency Illumination Time - Emergency Lighting and Exit Signs
90 min
Watts @ 90 Minutes
24 W
Bulb Technology
Halogen
Optional Guard
No
Operating Temp. Range
60 Degrees to 90 Degrees F
Head Lamps Adjustable
Yes
Warranty
3 yr
Standards
NEC/OSHA Illumination, NFPA 101, UL924
Housing Color
Beige
Emergency Illumination Time
90 min
Maximum Operating Temperature
90 Degrees F
NEMA Rating
Not Rated
Emergency Battery Backup
Yes
Minimum Operating Temperature
60 Degrees F
Emergency Wattage
24 W
Series
ELT24
Lamp Wattage
24 W
Environmental Rating
Indoor
Remote Capable
No
Battery Voltage
6 V DC
Current
0.17 A
Compliance Type
Chicago Approved
IP Rating
Not Rated
Lamp Head Shape
Round
Adjustable Lamp Heads
Yes
Bulb Included
Yes

Description

Emergency Light, Voltage - Emergency Lighting and Exit Signs 120/277, Lamp Watts - Emergency Lighting and Exit Signs 12.0 W, Lighting Technology Halogen, Housing Material - Emergency Lighting and Exit Signs Steel, Housing Color - Emergency Lighting and Exit Signs Beige, Battery Chemistry Sealed Lead Acid, Number of Lamp Heads 2, Emergency Illumination Time - Emergency Lighting and Exit Signs 90 min, Watts @ 90 Minutes 24 W, Output Voltage 6 V DC, Width 4 3/4 in, Length 11 5/8 in, Height 14 in
