Shop LITHONIA LIGHTING

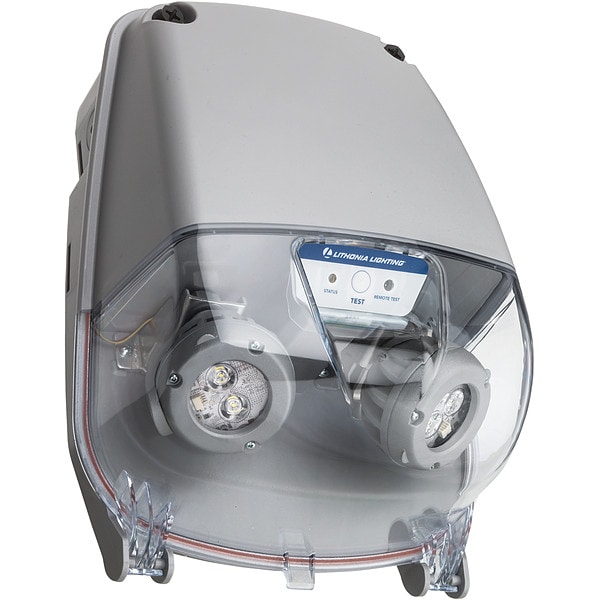

Emergency Light, LED, 120 to 347VAC, 14" H

  • Mfr # EXTL SP640L UVOLT LTP SDRT AELR
  • Zoro # G408644315
product price:
$
757.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
LED
Housing Material
Thermoplastic
Housing Color
Gray
IP Rating
IP66
Standards
cULus Listed, NFPA 101, NFPA 70, NOM, UL Listed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EXTL SP640L UVOLT LTP SDRT AELR
Zoro #
G408644315
UPC #
00196182824746
Country of Origin
Mexico

Dimensions

Recommended Mounting Height
24 ft
Overall Height
14 in
Overall Width
6 1/2 in
Overall Length
10 1/2 in
Manufacturers Warranty Length
5 yr
Wire Rope Length
10 1/2 in
Length
10 1/2 in

Details

Item
Emergency Light
Lighting Technology
LED
Housing Material
Thermoplastic
Housing Color
Gray
IP Rating
IP66
Standards
cULus Listed, NFPA 101, NFPA 70, NOM, UL Listed
Current
0.09 A, 0.11 A
Environmental Rating
Wet Location Rated
Maximum Operating Temperature
122 Degrees F
Number of Lamp Heads
2
Remote Capable
Yes
NEMA Rating
NEMA 4X
Diagnostic Testing Function
Self Diagnostics/Remote Test
CA Title 20 Compliant
Yes
Battery Voltage
347 V
Emergency Wattage
11 W
Battery Recharge Time
24 hr
Self Diagnostics
Yes
Input Voltage
120 to 347 V AC
Series
EXTL
Lamp Output
640 lm
Features
Constant Light Output Over the Full Discharge Period
Minimum Operating Temperature
32 Degrees F
Compliance Type
BAA, CA Title 20
Emergency Illumination Time
90 min
Lamp Wattage
12.84 W, 15.2 W
Recommended Single Fixture Spacing
44 ft
Fixture Wattage
3.84 W, 6.62 W, 7.65 W, 15.2 W, 23.6 W, 27.7 W
Application
Wet Location
Adjustable Lamp Heads
Yes
Lamp Color Temperature
5000K
Battery Chemistry
Lithium Iron Phosphate

Description

Emergency Light, Lighting Technology LED, Battery Chemistry Lithium Iron Phosphate, Number of Lamp Heads 2, Features Constant Light Output Over the Full Discharge Period
