Shop LITHONIA LIGHTING

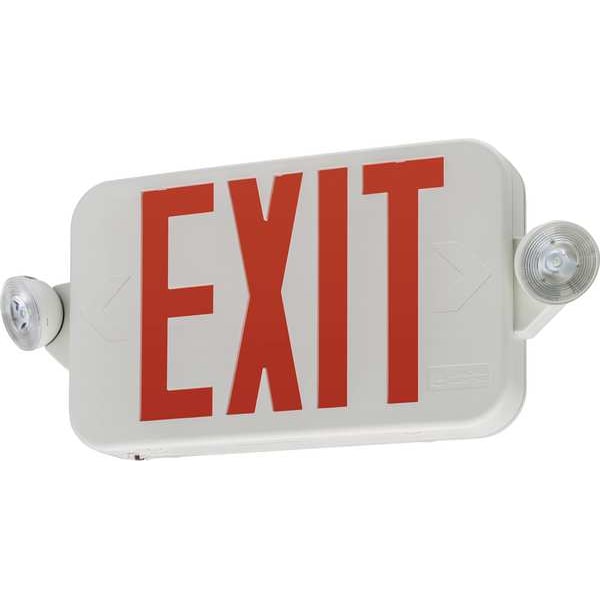

LED Emergency Combo Light, Red or Green Switchable, Round Lamp Heads

  • Mfr # ECRG RD

  • Zoro # G601701525

product price:
$
70.95
/ea

Key Features

Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
Includes
Extra Faceplate, Red/Green Inserts, Status Indicator
IP Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ECRG RD
Zoro #
G601701525
UPC #
194994900412
Country of Origin
Viet Nam

Dimensions

Text Stroke Width
3/4 in
Overall Width
16 1/2 in
Overall Height
7 1/4 in
Overall Depth
2 in
Text Height
6 in
Recommended Mounting Height
7 1/2 ft
Manufacturers Warranty Length
2 yr Limited
Text Size
3/4 in Stroke x 6 in High

Details

Item
LED Emergency Light/Exit Combo
Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
Includes
Extra Faceplate, Red/Green Inserts, Status Indicator
IP Rating
Not Rated
Standards
NFPA 101, NFPA 70, UL
Emergency Illumination Time
90 min
Number of Faces
1 or 2
Voltage
120V AC to 277V AC
Housing Finish
Textured
Number of Lamp Heads
2
Fixture Wattage
2 W
Background Color
White
Number of Bulbs
2
Emergency Battery Backup
Yes
Series
ECRG
Battery Chemistry
Nickel-Metal Hydride
CA Title 20 Compliant
Yes
Battery Recharge Time
24 hr
Compliance Type
Chicago Approved
Current
0.2 A
Lamp Head Light Source
LED
Diagnostic Testing Function
Test Button
Emergency Wattage
2 W
Battery Voltage
3.6 V DC
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
50 Degrees F
Application
Indoor Damp Location
Text Color
Green/Red
Lamp Head Location
Side
Compatible Guard
4YFV1
Environmental Rating
Damp Location Rated
Self Diagnostics
No
NEMA Rating
Not Rated
Recommended Single Fixture Spacing
10 ft
Lamp Head Shape
Round
Lamp Wattage
0.75 W
Directional Indicators
Universal Field Selectable Chevrons
Remote Capable
No

Description

The LITHONIA LIGHTING ECRG RD is an LED emergency light/exit combo designed for above-the-door egress marking and emergency illumination in indoor damp locations. It features a white plastic housing with a textured finish, red or green exit lettering selectable by an internal toggle switch, and two side-mounted round LED lamp heads. This unit operates on 120 to 277V AC and provides 90 minutes of emergency battery backup.

Key Features:

  • Selectable exit color: Internal toggle switch allows red or green exit display.
  • Emergency backup: Nickel-metal hydride battery provides 90 minutes of emergency illumination.
  • LED light source: Uses LED exit illumination and two LED emergency lamp heads.
  • Included components: Comes with an extra faceplate, red/green inserts, and a status indicator.
  • Test function: Test button allows manual operational checks.
  • Mounting/application: Listed for indoor damp locations from 50°F to 104°F.
  • Electrical: Multi-voltage operation at 120-277V AC, 50/60 Hz.
  • Face configuration: Configurable for 1 or 2 faces with universal field-selectable chevrons.
  • Size: Measures 16 1/2 in W x 7 1/4 in H x 2 in D.
