  11. Exit Sign with Emergency Lights, White, 1 Face(s), LED, Nickel Cadmium

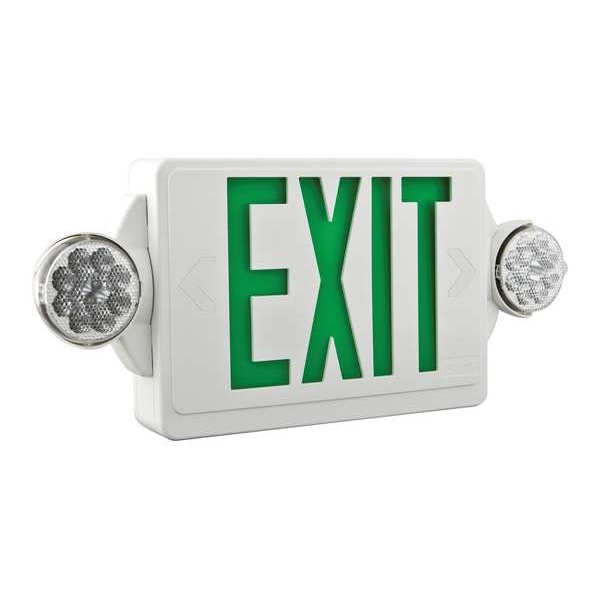

Lithonia Lighting Exit Sign with Emergency Lights, White, 1 Face(s), LED, Nickel Cadmium LHQM LED G HO M6 - main

Exit Sign with Emergency Lights, White, 1 Face(s), LED, Nickel Cadmium

  • Mfr # LHQM LED G HO M6

  • Zoro # G103541520

product price: $192.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/277V AC
Housing Material
Plastic
Number of Faces
1
Lighting Technology
LED
Emergency Illumination Time
90 min
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LHQM LED G HO M6
Zoro #
G103541520
UPC #
00745976254469
Country of Origin
Viet Nam

Dimensions

Overall Height
8 in
Manufacturers Warranty Length
5 yr Limited
Recommended Mounting Height
7 1/2 ft
Overall Width
19 1/4 in

Details

Item
Exit Sign with Emergency Lights
Voltage
120/277V AC
Housing Material
Plastic
Number of Faces
1
Lighting Technology
LED
Emergency Illumination Time
90 min
Directional Indicators
Universal Field Selectable Chevrons
Housing Color
White
Battery Chemistry
Nickel Cadmium
Lamp Head Location
Side
Maximum Operating Temperature
104 Degrees F
Recommended Single Fixture Spacing
18 ft
Standards
CA Title 20, FCC Title 47 Part 15 Subpart B, NFPA 101, NFPA 70 (NEC), OSHA, UL 924, UL Listed
Battery Voltage
9.6 V DC
Includes
3W Remote Capacity
Remote Capacity
3 W
Lamp Head Light Source
LED
Number of Bulbs
2
Diagnostic Testing Function
Test Button
Emergency Battery Backup
Yes
Minimum Operating Temperature
50 Degrees F
Self Diagnostics
No
CA Title 20 Compliant
Yes
Fixture Wattage
3 W
Text Color
Green
Housing Finish
UV Stabilized
Lamp Head Shape
Round
Remote Capable
Yes
Lamp Wattage
1.5 W
Compatible Guard
4YFV1
NEMA Rating
Not Rated
Background Color
Black
Compliance Type
None
Series
LHQM
Number of Lamp Heads
2
Environmental Rating
Damp Location Rated
Current
0.03 A, 0.05 A
Compatible Remote Head
487V46, 784H17

Description

Exit Combo with 2 Lamp Heads, Green Letters and High Output Battery
