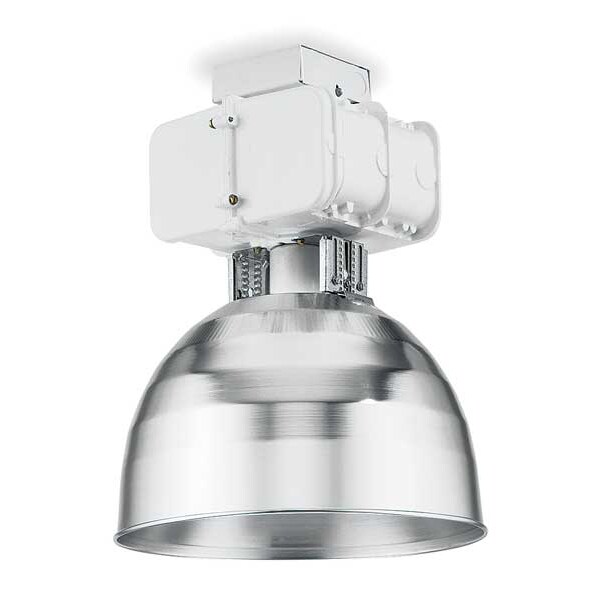

Lithonia Lighting Fixture, High Bay, 400 W TH400SA15TB

Fixture, High Bay, 400 W (Discontinued)

  • Mfr # TH400SA15TB
  • Zoro # G0982484
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TH400SA15TB
Zoro #
G0982484
UPC #
094702937016
Country of Origin
Multiple

Dimensions

Fixture Height
12-1/2 in
Fixture Width
15 in
Suggested Fixture Mounting Height
25 to 45 ft
Fixture Length
14-1/8 in
Fixture Mounting Height
25 to 45 ft.
Space to Mtg. Height Ratio
1.7
Overall Height
12 1/2 in
Overall Width
15 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Length
14 1/8 in
Channel Width
15 in

Details

Item
Traditional High Bay Fixture
Lamp Type
High Pressure Sodium
Lamp Watts
400
Fixture Wattage
464
Voltage
120 to 480V
Lamp Type - Fixtures
HPS
Bulb Included
No
Ballast Housing
Die-cast Aluminum
Mounting
Suspended Pendant
Fixture Series
TH
Fixture Mounting Included
No
Required Bulb Type
HPS
Fixture Housing Color
White
Dimmable
No
UL Listing
UL Damp Location
Standards
CSA Certified, NOM Certified, UL Listed for Damp Locations
Fixture Technology
HPS
Fixutre Mounting Type
Suspended Pendant
Fixture Specific Type
HID High Bay
Fixture Voltage
120 to 480
Indoor/Outdoor Usage
Indoor Only
Fixture Mounting Type
Suspended Pendant
Metal Halide Start Type
Constant Wattage
Fixture Finish
Gloss
Fixture Housing Material
Aluminum
Ballast Type
Constant Wattage Autotransformer
Fixture Socket Type
Mogul
Light Distribution
Adjustable with Multi-Position Legs
Lamp Included
No
Fixture Temp. Range
-22 Degrees to 131 Degrees F
Match Code
A
Fixture Reflector Material
Anodized Spun Aluminum
Suggested Bulb Item No
2V453
Fixture Mounting Location
Suspended
Lighting Technology
High Pressure Sodium
Fixture Ambient Temp. Range
-22 Degrees to 131 Degrees F
Lamp Watts - Fixtures
400 W
Suggested Lamp Item No.
2V453
Reflector Type
Open
Lighting Certification
Unrated
Fixture Type - High and Low Bay Fixtures
Round Reflector
Series
TH
Max. Fixture Wattage
465 W
Ambient Temp. Range
20 Degrees to 131 Degrees F
Fixture Ballast Type
Constant Wattage Autotransformer
For Bulb Type
High Pressure Sodium
Max. Ambient Temp.
131 Degrees F
Bulbs Included
No
Housing Color
White
Min. Ambient Temp.
20 Degrees F
Number of Bulbs
1
Housing Material
Aluminum
Bay Light Type
High Bay
Light Technology
High Pressure Sodium
Warranty
2ACC6

Description

HID Fixture, Lamp Type HPS, Lamp Watts 400, Fixture Wattage 464, Voltage 120 to 277, Space to Mtg. Height Ratio 1.5, Adjustable With Multi-Position Legs Light Distribution, Anodized Spun Aluminum Refractor/Reflector Material, Open Reflector Type, No, Ambient Temp. Range -22 to 131 Degrees F, Die-Cast Aluminum Housing Suitable for Damp Locations Ballast Housing, Suggested Lamp Item No. 2V453, Height 12-1/2 In., Width 15 In.
