This item is Discontinued.

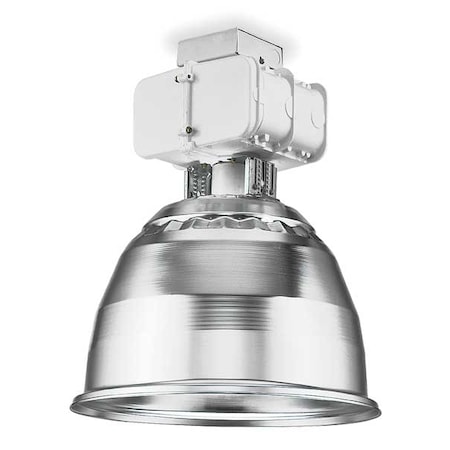

Lithonia Lighting Fixture, High Bay, 400 W THP400SA17480HA

Fixture, High Bay, 400 W (Discontinued)

  • Mfr # THP400SA17480HA
  • Zoro # G2947271
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
THP400SA17480HA
Zoro #
G2947271
UPC #
094702795081
Country of Origin
Multiple

Dimensions

Fixture Mounting Height
25 to 45 ft.
Suggested Fixture Mounting Height
25 to 45 ft
Fixture Height
24 in
Space to Mtg. Height Ratio
1.8
Fixture Length
17-1/2 in
Fixture Width
18 in
Overall Height
24 in
Overall Width
18 in
Channel Width
18 in
Nominal Size - Fixtures
2 ft x 2 ft
Overall Length
17 1/2 in

Details

Item
Traditional High Bay Fixture
Lamp Type
High Pressure Sodium
Lamp Watts
400
Fixture Wattage
465
Voltage
480V
Standards
CSA Certified, NOM Certified, UL Listed for Damp Locations
Dimmable
No
Lighting Technology
High Pressure Sodium
Max. Fixture Wattage
465 W
Lamp Included
No
Lamp Type - Fixtures
HPS
Indoor/Outdoor Usage
Indoor Only
Match Code
A
Fixture Temp. Range
-22 Degrees to 149 Degrees F
Fixture Mounting Type
Suspended Pendant
Fixture Housing Material
Die-Cast Aluminum
Lighting Certification
Unrated
Fixture Reflector Material
Anodized Spun Aluminum
Fixture Housing Color
White
Suggested Bulb Item No
2V453
Fixture Voltage
480
Fixutre Mounting Type
Suspended Pendant
Fixture Finish
Gloss
Lamp Watts - Fixtures
400 W
Suggested Lamp Item No.
2V453
Required Bulb Type
HPS
Mounting
Suspended
Ballast Type
Constant Wattage Autotransformer
Fixture Socket Type
Mogul
Fixture Specific Type
HID High Bay
Fixture Ambient Temp. Range
0 Degrees to 149 Degrees F
Reflector Type
Open
Fixture Technology
HPS
Metal Halide Start Type
Constant Wattage
Series
THP
Fixture Series
TH
Fixture Mounting Included
No
Fixture Mounting Location
Suspended
Ballast Housing
Die-cast Aluminum
Reflector Material
Aluminum
Fixture Type - High and Low Bay Fixtures
Round Reflector
UL Listing
UL Damp Location
Light Distribution
Adjustable with Multi-Position Legs
Bulb Included
No
Ambient Temp. Range
20 Degrees to 149 Degrees F
Fixture Ballast Type
Constant Wattage Autotransformer
Min. Ambient Temp.
20 Degrees F
Max. Ambient Temp.
149 Degrees F
Bulbs Included
No
Housing Material
Aluminum
Bay Light Type
High Bay
Number of Bulbs
1
Housing Color
White
For Bulb Type
High Pressure Sodium
Light Technology
High Pressure Sodium
Warranty
2ACC7

Description

HID Fixture, Lamp Type HPS, Lamp Watts 400, Fixture Wattage 465, Voltage 480, Space to Mtg. Height Ratio 1.9, Adjustable With Multi-Position Legs Light Distribution, Anodized Spun Aluminum Refractor/Reflector Material, Open Reflector Type, No, Ambient Temp. Range 0 to 149 Degrees F, Die-Cast Aluminum Housing Suitable for Damp Locations Ballast Housing, Suggested Lamp Item No. 2V453, Height 24 In., Width 18 In., 1
