This item is Discontinued.

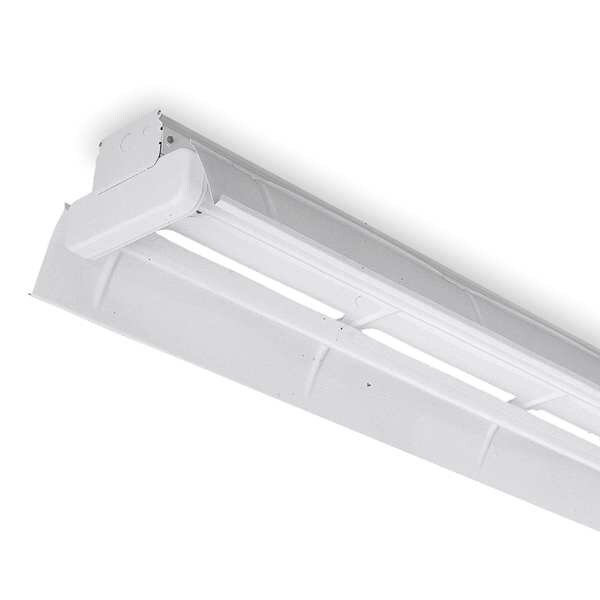

Lithonia Lighting Fluorescent Fixture, F32T8, 32W, 120-277V TAFST 2 32 MVOLT 1/4 GEB10IS

Fluorescent Fixture, F32T8, 32W, 120-277V (Discontinued)

  • Mfr # TAFST 2 32 MVOLT 1/4 GEB10IS
  • Zoro # G1738965
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TAFST 2 32 MVOLT 1/4 GEB10IS
Zoro #
G1738965
UPC #
784231004272
Country of Origin
Mexico

Dimensions

Channel Width
13 3/8 in
Suggested Fixture Mounting Height
Up to 25 ft
Length
96"
Fixture Width
13 3/8 in
Fixture Height
6 5/8 in
Manufacturers Warranty Length
1 yr Limited Warranty
Height
6-5/8"
Fixture Length
96 in
Width
13-3/8"
Nominal Size - Fixtures
1 ft x 4 ft
Overall Length
99 5/8 in
Overall Height
6 5/8 in
Overall Width
13 3/8 in

Details

Fixture Temp. Range
0 Degrees to 104 Degrees F
Item
Heavy Duty Fluorescent Fixture
Channel Connector
Snap in Turret Housing
Lamp Type
Fluorescent
Ballast Type
Electronic
Number of Light Bars
4
Fixture Housing Material
Steel
Lamp Type - Fixtures
F32T8
Max. Fixture Wattage
128 W
Mounting
Individually or in a Row, Direct to Surface or Suspended
Lighting Certification
Unrated
Fixture Type - High and Low Bay Fixtures
Linear Low Bay
Fixture Series
TAFST
Metal Gauge
20
Housing Finish
High Gloss Enamel
Ballast Quantity
1
Suggested Lamp Item No.
2ETU3
Fixture Housing Color
White
Lamp Included / Lamp Not Included
Lamp Not Included
Light Distribution
General
Fixture Wattage
113W
Series
TAFST
Voltage
120 to 277V
Fixture Voltage
120 to 277
Lighting Technology
Fluorescent
Fixture Mounting Type
Surface or Suspended Pendant
Reflector Type
Non-Apertured
Standards
CSA Certified, UL Listed
Lamp Watts
32W
Description/Special Features
Tandem
Lamp Quantity
4
Ambient Temp. Range
0 Degrees to 104 Degrees F
Lamp Watts - Fixtures
32 W
Dimmable
No
Housing Material
Steel
Lamp Included
No
Fixture Ballast Type
Instant Start Electronic
CA Title 24 Compliant
No
Number of Bulbs
4
For Bulb Shape
Linear
Ingress Protection Rating
Not Rated
Reflector Material
Steel
For Bulb Type
T8
Housing Color
White
For Bulb Base Type
Bi-Pin
Ballast Start Type
Instant Start
Bay Light Type
Low Bay
Max. Ambient Temp.
104 Degrees F
Min. Ambient Temp.
0 Degrees F
Bulbs Included
Yes
Linkable
Yes
Light Technology
Fluorescent

Description

Heavy Duty Fluorescent Fixture, Lamp Quantity 4, Lamp Type F32T8, Lamp Watts 32W, Fixture Wattage 113W, Voltage 120 to 277VAC, Ballast Type Instant Start Electronic, Ambient Temp. Range 0 Degrees to 104 Degrees F, Length 96 In., Width 13-3/8 In., Height 6-5/8 In., Lamp Not Included, Suggested Lamp Item No. 2ETU3, Non-Apertured, Housing Finish High Gloss Baked White Enamel, Mounting Individually or in a Row, Direct to Surface or Suspended, Ballast Quantity 1
