  9. I-BEAM(R) Fluorescent High Bay Fixture, T5,324W

This item is Discontinued.

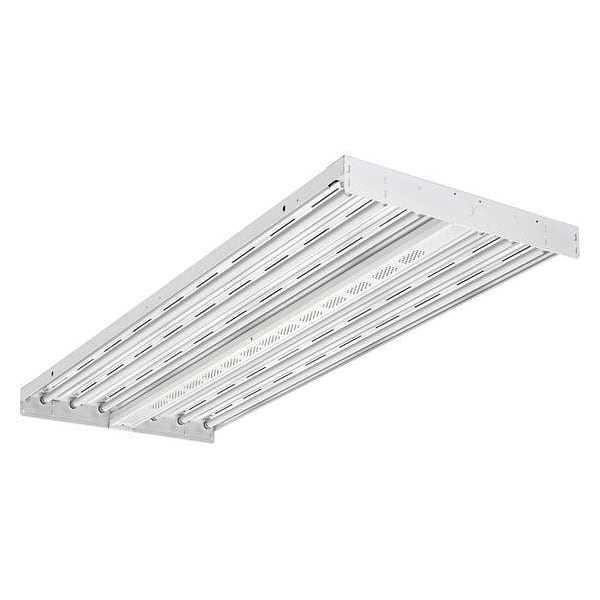

Lithonia Lighting I-BEAM(R) Fluorescent High Bay Fixture, T5,324W IBZT5 6L

I-BEAM(R) Fluorescent High Bay Fixture, T5,324W (Discontinued)

  • Mfr # IBZT5 6L
  • Zoro # G7617504
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IBZT5 6L
Zoro #
G7617504
UPC #
745977147470
Country of Origin
Mexico

Dimensions

Suggested Fixture Mounting Height
15 to 40 ft
Mounting Height
15 to 40 ft.
Length
48-1/16"
Height
2-3/8"
Fixture Height
2 3/8 in
Fixture Length
48 1/16 in
Space to Mtg. Height Ratio
1
Width
18-1/8"
Fixture Width
18 1/8 in
Nominal Size - Fixtures
2 ft x 4 ft
Overall Width
18 1/8 in
Overall Length
48 1/16 in
Overall Height
2 3/8 in
Suggested Fixture Mounting Height Range
20 to 40 ft.

Details

Standards
CSA Certified to U.S. and Canadian Safety Standards
Item
Fluorescent High Bay Fixture
Lamp Included
Yes
Match Code
C,E
Fixture Temp. Range
0 Degrees to 104 Degrees F
Lamp Watts - Fixtures
54 W
Mounting
Surface or Stem
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Voltage
120 to 277V
Fixture Wattage
324W
Lighting Certification
Unrated
Lamp Type - Fixtures
T5
Fixture Housing Material
Steel
Light Distribution
Narrow
Lamp Watts
54W
Ballast Type
Electronic
Dimmable
No
Lamp Quantity
6
Reflector Material
Aluminum
Ambient Temp. Range
-4 Degrees to 131 Degrees F
Max. Fixture Wattage
324 W
Ballast Quantity
1
Housing Finish
High Gloss Enamel
Number of Light Bars
6
Housing Material
Steel
Description/Special Features
Heat Slots
Series
IBZ
Lamp Type
Fluorescent
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fixture Voltage
120 to 277
Fixture Housing Color
White
Lighting Technology
Fluorescent
Suggested Lamp Item No.
5AE35
Reflector Type
Apertured
Metal Gauge
20
Fixture Ballast Type
Electronic Programmed Start
Housing Color
White
For Bulb Base Type
Bi-Pin
Color Temperature
4100K
Max. Ambient Temp.
131 Degrees F
For Bulb Type
T5HO
Number of Bulbs
6
For Bulb Shape
Linear
Bulbs Included
Yes
CA Title 24 Compliant
No
Ballast Start Type
Program Start
Emergency Battery Backup
No
Ingress Protection Rating
Not Rated
Min. Ambient Temp.
-4 Degrees F
Bay Light Type
High Bay
Light Technology
Fluorescent

Description

Fluorescent High Bay Fixture, Lamp Quantity 6, Lamp Type T5, Suggested Lamp Item No. 5AE35, Fixture Wattage 324W, Voltage 120 to 277VAC, Description/Special Features Heat Slots, Length 48-1/16 In., Width 18-1/8 In., Height 2-3/8 In., Light Distribution Narrow, Reflector Type Miro4(TM), Reflector Material Aluminum, Mounting Height 15 to 40 ft., Space to Mtg. Height Ratio 1, Lamp Watts 54W, Ballast Type Electronic Programmed Start, Ballast Quantity 1
