  5. I-BEAM(R) Fluorescent High Bay Fixture, T8,220W

This item is Discontinued.

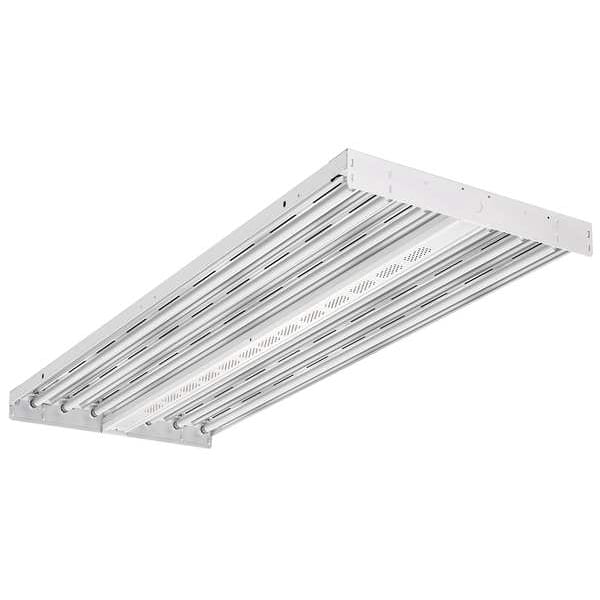

Lithonia Lighting I-BEAM(R) Fluorescent High Bay Fixture, T8,220W IBZT8 6 WD

I-BEAM(R) Fluorescent High Bay Fixture, T8,220W (Discontinued)

  • Mfr # IBZT8 6 WD
  • Zoro # G1020074
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
IBZT8 6 WD
Zoro #
G1020074
UPC #
745977147845
Country of Origin
Unknown

Dimensions

Suggested Fixture Mounting Height
15 to 40 ft
Fixture Length
48 1/16 in
Fixture Height
4 3/8 in
Mounting Height
15 to 25 ft.
Fixture Width
18 1/8 in
Length
48-1/16"
Height
4-3/8"
Width
18-1/8"
Space to Mtg. Height Ratio
1.28
Overall Length
48 1/16 in
Overall Width
18 1/8 in
Overall Height
2 3/8 in
Nominal Size - Fixtures
2 ft x 4 ft
Suggested Fixture Mounting Height Range
20 to 40 ft.

Details

Reflector Type
White Apertures
Lamp Type - Fixtures
T8
Light Distribution
Wide
Fixture Housing Material
Steel
Mounting
Suspended
Fixture Temp. Range
0 Degrees to 104 Degrees F
Lamp Quantity
6
Suggested Lamp Item No.
2ETU3
Fixture Housing Color
White
Fixture Type - High and Low Bay Fixtures
Linear High Bay
Lamp Watts
54W
Reflector Material
Aluminum
Ballast Quantity
2
Match Code
B,G
Dimmable
No
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Voltage
120 to 277V
Lamp Type
Fluorescent
Lighting Technology
Fluorescent
Description/Special Features
No Uplight
Lamp Watts - Fixtures
32 W
Housing Finish
High Gloss Enamel
Standards
CSA Certified to U.S. and Canadian Safety Standards
Fixture Wattage
220W
Ballast Type
Electronic
Lighting Certification
Unrated
Ambient Temp. Range
0 Degrees to 104 Degrees F
Fixture Voltage
120 to 277
Max. Fixture Wattage
220 W
Item
Fluorescent High Bay Fixture
Lamp Included
No
Series
IBZ
Number of Light Bars
6
Housing Material
Steel
Metal Gauge
20 Gauge
Fixture Ballast Type
Electronic Instant Start
CA Title 24 Compliant
No
For Bulb Base Type
Bi-Pin
Max. Ambient Temp.
77 Degrees F
For Bulb Type
Fluorescent
Bulbs Included
No
Ballast Start Type
Instant Start
Min. Ambient Temp.
-4 Degrees F
Number of Bulbs
0
For Bulb Shape
Tubular
Ingress Protection Rating
Not Rated
Housing Color
White
Bay Light Type
High Bay
Emergency Battery Backup
No
Light Technology
Fluorescent
Color Temperature
4100K

Description

Fluorescent High Bay Fixture, IBZ Series Lithonia, Lamp Quantity 6, Lamp Designation F32T8, Lamp Type F32T8, Lamp Watts 32, Fixture Wattage 220, 120-277 Voltage, Description/Special Features No Uplight, Light Distribution Wide, Ballast Type Electronic Instant Start, Ballast Quantity 2, Reflector Type White Apertures, Space to Mtg. Height Ratio 1.28, Steel Housing Material, High Gloss, Baked White Enamel Housing Finish, Metal Gauge 20 Gauge, Suggested Lamp Item No. 2ETU3, No Lamp Included
