Shop LITHONIA LIGHTING

LED Emergency Combo Light, Red or Green Switchable, Square Lamp Heads

  • Mfr # ECRG SQ

  • Zoro # G901701522


product price:
$
64.39
/ea

Key Features

Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
Includes
Extra Faceplate, Red/Green Inserts, Status Indicator
IP Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ECRG SQ
Zoro #
G901701522
UPC #
194994900467
Country of Origin
Viet Nam
Item
LED Emergency Light/Exit Combo
Lighting Technology
LED
Housing Material
Plastic
Housing Color
White
Includes
Extra Faceplate, Red/Green Inserts, Status Indicator
IP Rating
Not Rated
Standards
NFPA 101, NFPA 70, UL
Series
ECRG
Number of Faces
1 or 2
Emergency Illumination Time
90 min
Housing Finish
Textured
Battery Chemistry
Nickel-Metal Hydride
Number of Lamp Heads
2
Number of Bulbs
2
Emergency Battery Backup
Yes
Fixture Wattage
3.5 W
Background Color
White
Voltage
120/277V AC
Environmental Rating
Damp Location Rated
Application
Indoor Damp Location
Maximum Operating Temperature
104 Degrees F
Diagnostic Testing Function
Test Button
CA Title 20 Compliant
Yes
Text Color
Green/Red
Current
0.2 A
Self Diagnostics
No
Lamp Head Location
Side
Minimum Operating Temperature
50 Degrees F
Lamp Head Shape
Square
Remote Capable
No
Battery Recharge Time
24 hr
NEMA Rating
Not Rated
Emergency Wattage
3.5 W
Compliance Type
Chicago Approved
Compatible Guard
4YFV1
Lamp Head Light Source
LED
Lamp Wattage
1 W
Recommended Single Fixture Spacing
6 ft
Directional Indicators
Universal Field Selectable Chevrons
Battery Voltage
3.6 V DC

Description

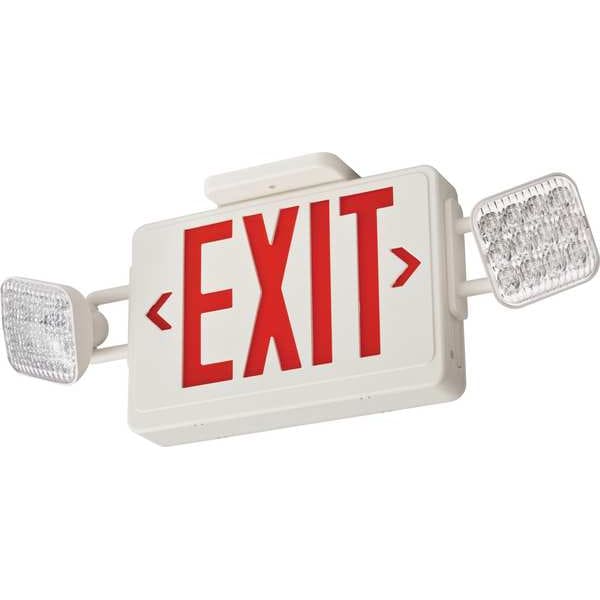

The LITHONIA LIGHTING ECRG SQ is an LED emergency light and exit combo that combines exit signage with two side-mounted square lamp heads in one unit. It is designed for indoor damp locations and provides 90 minutes of emergency battery backup. This model features a white textured plastic housing, dual-voltage 120/277V AC operation, and an internal toggle switch that allows selection of red or green exit lettering. It can be configured for 1- or 2-face use and includes universal field-selectable chevrons.

Key Features:

  • LED light source: Uses LED lighting for both the exit sign and emergency lamp heads.
  • Emergency operation: Battery backup provides 90 minutes of illumination during power loss.
  • Battery details: Nickel-metal hydride battery, 3.6 V DC, with a 24-hour recharge time.
  • Voltage: Operates on 120/277V AC, 60Hz.
  • Selectable exit color: Internal toggle switch allows red or green text selection.
  • Included components: Comes with an extra faceplate, red/green inserts, and a status indicator.
  • Testing function: Equipped with a test button and status indicator for manual checks.
  • Housing: White textured plastic housing with white background.
  • Lamp heads: Two side-mounted square lamp heads, 1 W each.
  • Face configuration: Supports 1- or 2-face installation.
  • Operating range: Listed for indoor damp locations from 50°F to 104°F.
  • Size: 19 in W x 8 in H x 4-1/4 in D.
